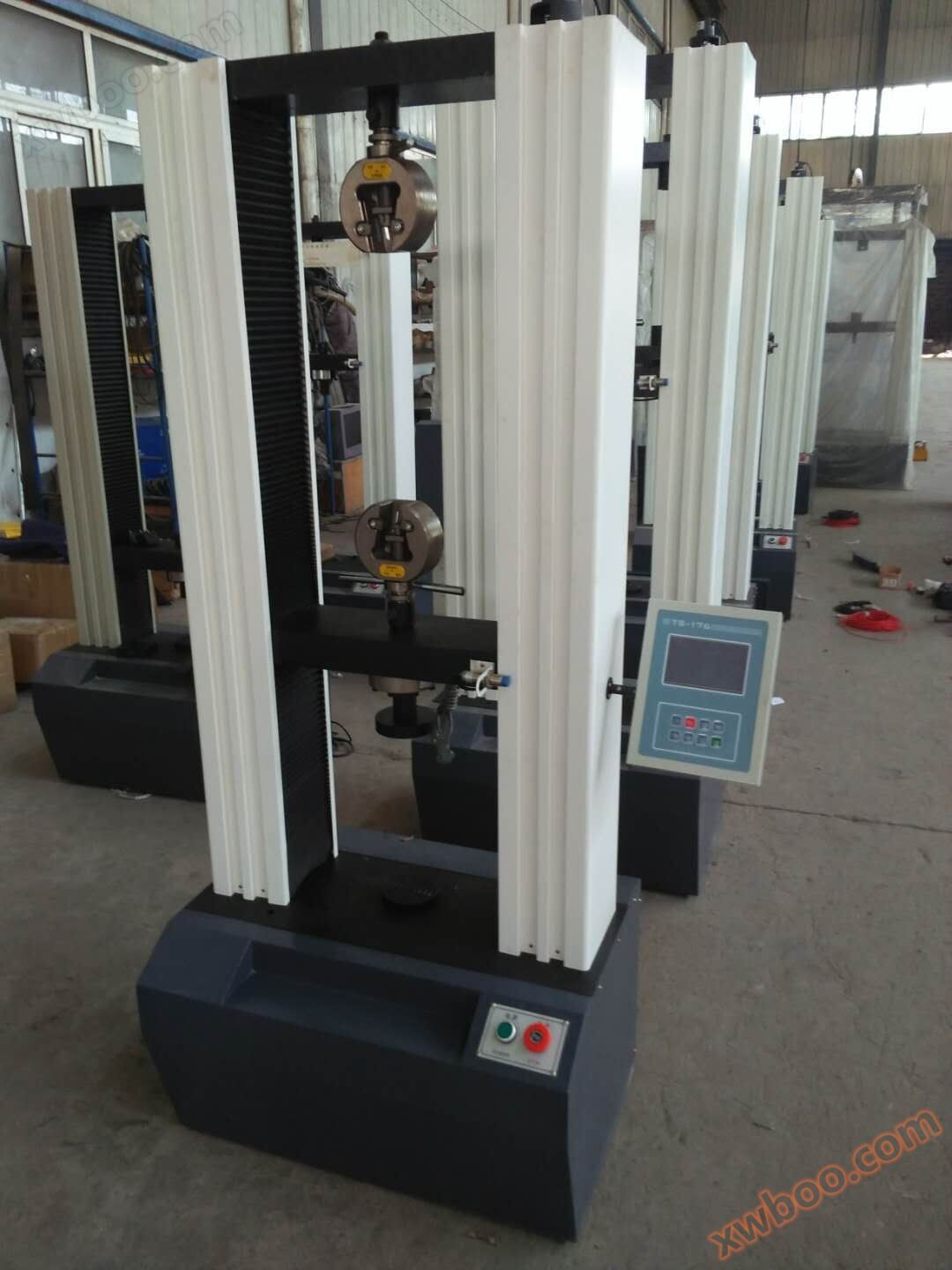

WDS-50H Digital Electronic Universal Testing Machine

WDS-50H Digital Electronic Universal Testing Machine Portal Digital Electronic Universal Testing Machine This testing machine is manufactured according to standards such as GB/T16491-2008 "Electronic Universal Testing Machine", GB/T2611-2007 "General Technical Requirements for Testing Machines", GB-T 7314-2005 "Compression Test Method for Metallic Materials at Room Temperature", GB228-2010 "Tensile Test Method for Metallic Materials at Room Temperature", GB/T232-2010 "Bending Test Method for Metallic Materials", etc,

WDS-50H Digital Electronic Universal Testing Machine

Door type digital display electronic universal testing machine, this testing machineAccording to GB/T16491-2008 "Electronic Universal Testing Machine" GB/T2611-2007 "General Technical Requirements for Testing Machines", GB-T 7314-2005 "Room Temperature Compression Test Method for Metal Materials", GB228-2010 "Room Temperature Tensile Test Method for Metal Materials", GB/T2232-2010 "Bending Test Method for Metal Materials" and other standards are applicable to the manufacturing of aviation and aerospace, petrochemical, vehicle manufacturing, boiler and pressure vessels, machinery manufacturing, household appliances, wires and cables, plastic rubber, textile and chemical fiber, ceramic building materials, PVC pipes, new waterproof materials, metal materials and products, food and pharmaceutical packaging and other industries, as well as the testing centers of universities, research institutes, import and export commodity inspection bureaus, quality inspection institutes of quality inspection bureaus, construction building materials quality inspection stations and other units, for the processing of metal and non-metal raw materials, finished products, etc. Conduct tests such as stretching, compression, bending, shearing, peeling, tearing, etc.
Performance characteristics:
1. The entire experimental process is controlled by a microcontroller and can automatically return to its original position;
2. Adopting a large LCD display and fully Chinese menu operation, it can input sample parameters and test parameters;
3. The output of test results can be set arbitrarily: maximum force value, elongation rate, maximum tensile strength, constant force elongation, constant elongation force value; Maximum test force, tensile and compressive strength, fracture force, elongation, non proportional stress (metal);
4. The screen displays the test results and force displacement curves.
Technical parameters:
1. Specifications: 10KN, 20KN, 30KN, 50KN, 100KN
2. Structural form: high rigidity portal
3. Test force measurement range: 1% -100%
4. Test force measurement accuracy: ± 1%
5. Speed accuracy: ± 1%
6. Displacement measurement accuracy: 0.01mm
7. Stretching space: 600-800mm (can also be customized according to user requirements)
8. Power supply: 220V 50HZ
Standard configuration:
1. High precision and low-noise ball screw;
2. Specialized photoelectric encoder for measuring the displacement of crossbeam components.
3. High stability AC servo drive system and servo motor.
4. Jinan Huaxing has its own set of circuit amplifiers and large screen touch screen display controllers.
5. One set of stretching, compression, and bending fixtures each. (Customers can choose stretching aids for different products according to their needs)
