Slow SMC rodless cylinder
NegotiableUpdate on 05/06
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
The slow SMC rodless cylinder is a basic mechanical joint product independently produced by our company, which integrates core advantages such as compact structure, flexible adaptation, stability and reliability. The model rules are clear and can be accurately selected based on parameters such as cylinder diameter, stroke, and magnetic switch. The example model MY1B25-300Z-M9BW represents a 25mm cylinder diameter, 300mm stroke, and front plug magnetic switch configuration. The product has excellent protective performance, with double-layer sealing tape effectively preventing dust and air leakage. The piping and installation design have been optimized, greatly improving the convenience of use.
Product Details

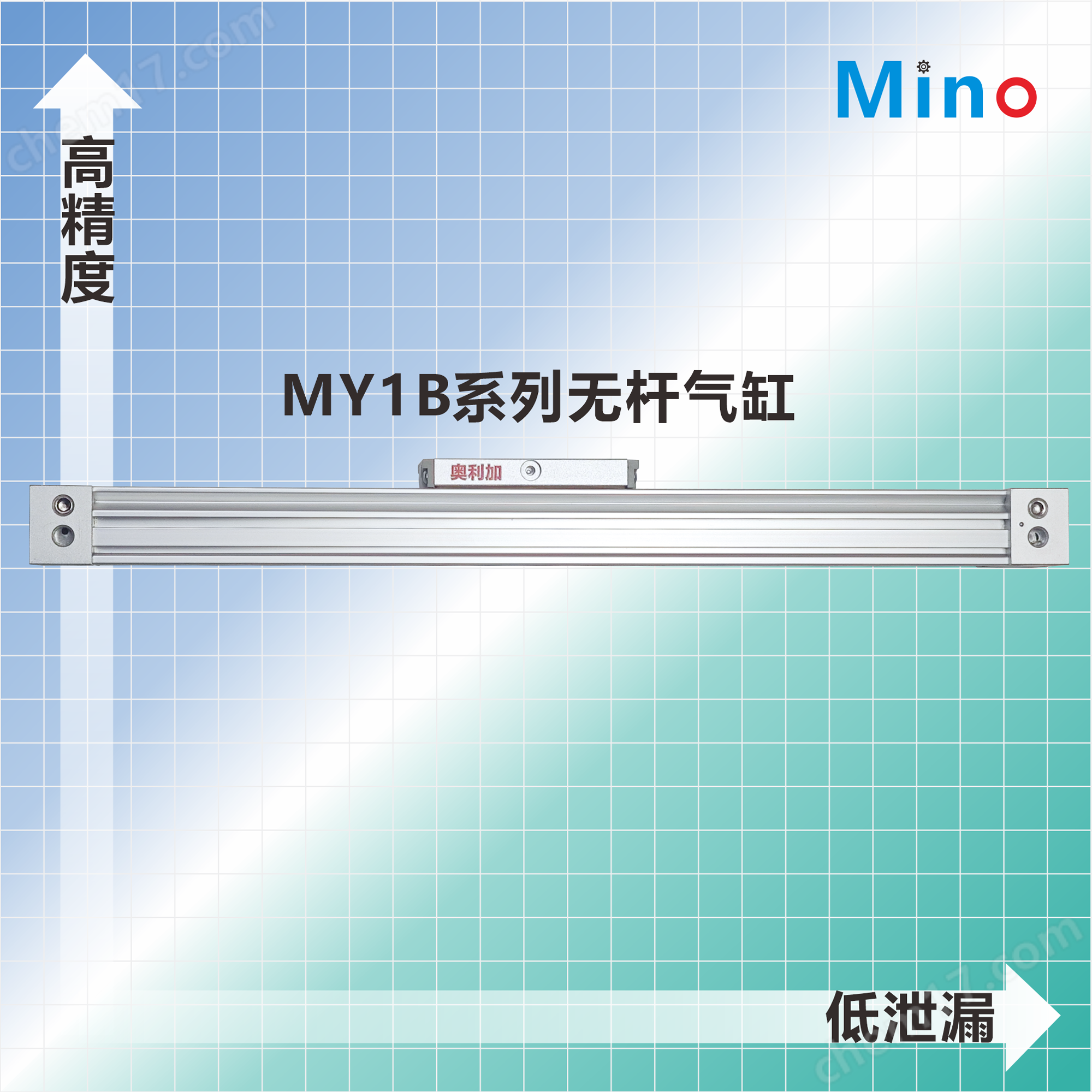

This product is the SMC MY1B series mechanical joint rodless cylinder independently produced by our company, which replicates the core technology and specifications of SMC's original MY1B series. It is the basic product of mechanical joint rodless cylinder, focusing on compactness, efficiency, and multi scenario adaptation. The cylinder diameter specifications include 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, and 63mm, and the stroke can be adjusted from 100mm to 5000mm every 1mm to meet different long stroke requirements. The product adopts an integrated sliding table and piston through full stroke design, with an inner sealing belt for pressure protection and an outer dust-proof belt for anti fouling. It is compact in size, low profile, and saves installation space; The piping optimization is in 4 directions, which can be changed on site as needed. The magnetic switch is directly installed on the front, greatly reducing installation time. Excellent load capacity, reducing weight by 13-17% compared to previous generation products, while also having good adaptability and expandability. It can be combined with external guide rails to prevent long stroke warping. Widely used in automated handling, dispensing and labeling, machine tool loading and unloading, electronic assembly lines with long stroke and medium load linear drive scenarios, independently produced to control quality, can directly replace SMC original products, with higher cost-effectiveness and more timely after-sales response.
Slow SMC rodless cylinderIntroduction to rodless cylinder products
1、 Product Overview
SMC MY1B isMechanical joint rodless cylinder foundation modelAbandoning the traditional cylinder piston rod structure, adopting a rigid mechanical connection structure between the piston and the external sliding table, relying on an integrated sliding table and a piston full stroke through design, combined with an inner layer of pressure retaining sealing tape and an outer layer of dust-proof and anti fouling sealing tape, to create a low profile, ultra compact body structure. The product supports ultra long stroke operation, adapts to multiple installation scenarios, is lightweight and low loss, and can meet the linear drive needs of industrial automation for long stroke and medium load. It is a versatile linear transmission pneumatic component.
This cylinder supports lubrication free operation, with a working temperature range of+5 ℃ to+60 ℃, a rated pressure resistance of 0.8MPa, and a ZUI low working pressure of only 0.10-0.15MPa. It is suitable for various high and low speed operating conditions and comes standard with an air buffer structure. It also supports the selection of external hydraulic buffer units, ensuring stable operation and strong adaptability. It is widely used in various automated production line equipment.
2、 Working principle and core structure
1. Overall structural composition
The core structure of MY1B rodless cylinder includes six major components: a long aluminum alloy cylinder barrel, a double-layer sealing belt, a piston assembly, a mechanical connection frame, an external load-bearing slide table, and a buffer component. The aluminum alloy cylinder barrel is equipped with a long strip of motion opening, which relies on a built-in metal connecting claw to penetrate the sealing belt, rigidly locking the internal piston and external sliding table to achieve integrated linkage; The double-layer sealing tape is responsible for internal air pressure sealing and external environmental dust prevention, ensuring the continuous and stable operation of the equipment.
2. Operating principle
The product is powered by compressed air and achieves linear reciprocating motion through air path reversal: compressed air enters from one end of the cylinder through an air port and exits from the other end, creating a pressure difference inside the cylinder and pushing the piston to slide axially; The piston drives the external load-bearing slide table to move synchronously without any gap through a rigid mechanical connection structure; Switching the direction of the gas path can complete the return reset.
During the operation of the equipmentPartial opening, full area sealingMechanism: The inner sealing tape is only partially opened at the piston movement position, and the rest of the area is fully sealed to lock the internal air pressure and prevent air leakage; The outer dust-proof sealing tape fully seals the opening of the cylinder body, effectively blocking dust, iron filings, and impurities, and protecting the internal precision structure. At the same time, the buffer structure at both ends can effectively reduce the impact at the end of the stroke, and lower the vibration and noise of the equipment.
3、 Core advantages of the product
1. Compact structure, lightweight upgrade
Integrated design without piston rod significantly reduces equipment installation space, resulting in a low profile and compact size of the body. Compared to its predecessor, the ø 25-40 cylinder bore model can achieve a maximum load weight of 5.8-9.9kg under a 1000mm stroke, with an overall weight reduction of 13-17%. The lightweight body can reduce equipment load losses.
2. Strong adaptability and flexible installation
The cylinder head piping has been upgraded from traditional 3-directional to 4-directional, and the piping method can be flexibly changed on site as needed; The magnetic switch adopts a front mounted design, which can be adjusted at any position in the slot, greatly reducing installation time. Supports four installation methods: horizontal, vertical, top, and wall, with two fixing schemes: bottom T-slot and two fixed ends, suitable for various equipment installation spaces.
3. Durable protection, upgraded lifespan
Optimize the fixed structure of the dust-proof sealing strip, combined with an inner and outer double-layer staggered sealing structure, to balance pressure holding performance and dust-proof and anti fouling capabilities. It can adapt to complex industrial working conditions, effectively avoid problems such as air leakage and impurity intrusion, and significantly extend the service life of the equipment.
4. Adjustable performance and stable operation
Standard air buffer structure, with a buffer needle valve placed on top for easy debugging and operation; Optional A/L/H external hydraulic buffer units are available, suitable for different load conditions such as low, medium, and high. The operating speed range of the equipment is wide, with a speed of 100-1000mm/s under the condition of no stroke adjustment bolt, and can reach up to 1500mm/s with external shock absorbers, meeting the requirements of high-frequency, high-speed, and smooth linear transmission.
5. Strong scalability
Supporting the combination of floating brackets, lateral supports, and external linear guides, it can effectively solve the problems of warping and sagging of long stroke cylinder tubes, compensate for installation errors, and improve the accuracy and stability of long-distance operation.
4、 Core specification parameters
1. Basic parameters
| Cylinder diameter (mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 |
| Using fluids | compressed air | ||||||
| mode of action | Double acting, reciprocating motion | ||||||
| Use pressure range | 0.15-0.8 Mpa | 0.1-0.8 Mpa | |||||
| proof pressure | 1.2 Mpa | ||||||
| Operating Temperature | 5-60℃ | ||||||
| buffer | Built in buffer | ||||||
| lubricating grease | Internal self-lubricating, no need for external oil mist device | ||||||
| Load weight (kg) | 15 | 21 | 29 | 40 | 53 | 70 | 83 |
| Maximum allowable torque (N)・m) | 2.5 | 5 | 10 | 20 | 40 | 78 | 160 |
| Theoretical output force (N) | 120 | 188 | 294 | 483 | 754 | 1177 | 1869 |
Cylinder diameter specification: ø 16/20/25/32/40/50/63SMC MY1B mechanical joint rodless cylinder mm
Itinerary scopeStandard 100-5000mm, supporting 1mm precise fine-tuning; Among them, ø 10/16 has a maximum customized travel of 3000mm, while other specifications have a maximum of 5000mm
work pressureZUI low working pressure 0.10-0.15MPa, rated pressure resistance 0.8MPa
running speed: 100-1000mm/s (without external buffering); 100-1500mm/s (external shock absorber)
Operating Temperature+5 ℃~+60 ℃, supports lubrication free operation
2. Conventional size weight (1000mm stroke)
MY1B25: Width 60mm, Height 49mm, Weight 3.4kg
MY1B32: Width 74mm, Height 61mm, Weight 3.9kg
MY1B40: Width 94mm, Height 76mm, Weight 5.8kg
5、 Model coding rules
The MY1B series models are fromSeries model+cylinder diameter+through-hole thread+piping form+stroke+buffer unit+magnetic switch+customized specificationsComposition, divided into two encoding formats based on cylinder diameter:
1. ø 16, ø 20, ø 50, ø 63: MY1B [thread] [piping] [stroke] [quantity]
2. ø 25, ø 32, ø 40: MY1B [thread] [piping] [stroke] Z - [quantity]
Parameter Interpretation
boreThe number directly corresponds to the cylinder diameter (e.g. 25=25mm)
Through-hole threadStandard unmarked adapter for M/Rc threads; TN is NPT thread; TF is G thread
Piping form: unmarked as standard type, G as centralized piping type
itineraryUnit: mm, supports 1mm precise customization
Buffer unitA/L/H correspond to hydraulic buffer adjustment units for different loads respectively
Z identificationMagnetic switch 3m front plug configuration
Magnetic switchMainstream pairing with M9BW and other series of three wire contactless switches, suitable for automation signal control
Model example: MY1B25-300Z-M9BWMY1B basic series, 25mm cylinder diameter, 300mm stroke, 3m front wire plug, paired with M9BW three wire NPN contactless magnetic switch.
VISlow SMC rodless cylinderSelection and installation points
1. Selection criteria
The selection requires comprehensive calculation of load mass, static torque, and impact torque. The total load rate should be ≤ 1, and the recommended optimal load rate should be ≤ 0.5; The buffering capacity needs to be carefully checked for vertical and downward operating conditions. When there is a significant impact at the end of the stroke, an A/L/H hydraulic buffering unit must be selected; When the device requires an intermediate stop function, it needs to be equipped with a center pressure type three position valve and a double-sided pressurization circuit to prevent displacement drift.
2. Installation specifications
Support multi-dimensional installation and adapt to various device structures; When the cylinder stroke exceeds 2000mm, an intermediate support structure needs to be installed to prevent the cylinder from sagging or warping; Long range equipment is recommended to be equipped with lateral supports and floating brackets to compensate for installation errors and improve operational accuracy and stability. Magnetic switches need to be matched with D-M9 □/D-A9 □ series models according to the voltage and output type of the equipment control circuit.
7、 Application scenarios
SMC MY1B mechanical joint rodless cylinder withLong travel, low space occupation, high adaptability, stable operation, strong protectionThe advantages of WAN Mei are widely applicable to various industrial automation equipment, including electronic assembly production lines, automated material handling equipment, machine tool loading and unloading equipment, dispensing and labeling equipment, packaging machinery, etc. WAN Mei is suitable for automation driving scenarios such as long stroke, medium load, high-frequency reciprocating linear transplanting, pushing and pulling, and handling.
