Explosion proof high and low temperature test chamber KMT-408L

English name：Power battery high and low temperature explosion proof testing chamber
product namePower battery high and low temperature explosion-proof test box, battery testing test box, battery explosion-proof high and low temperature box, electric vehicle power battery reliability test box, electronic high and low temperature explosion-proof box, battery cell explosion-proof high and low temperature box, new energy dedicated high and low temperature box, electronic battery high and low temperature aging box, battery thermal durability test box, PACK environment simulation test box, reliability testing equipment, etc.
Product Usage：
Test the performance of batteries, including high temperature resistance, low temperature resistance, and alternating high and low temperature.
◆ Used for conducting high and low temperature, wet and hot routine tests, cold resistance tests, and low-temperature storage of batteries, in order to analyze and evaluate the performance and behavior under the proposed environmental conditions during the test.
High and low temperature environmental testing generated by charging and discharging tests on lithium battery products.

Product Features：
Real time monitoring of combustible gas concentration inside the box, automatic ventilation, equipped with pressure relief port and pressure exhaust device, which automatically opens when the pressure rises.
◆ External charging and discharging test cabinet, capable of conducting overcharging, overdischarging, and charging/discharging tests on batteries.
The integrated explosion-proof design of the box body (explosion-proof chain of the box door, explosion-proof window) effectively protects the safety of the test.
◆ Equipped with CO2 gas fire extinguisher (can automatically/manually start the fire extinguisher function in case of battery combustion or explosion).
The sprinkler device is placed at the top of the testing area of the box, and the water pressure is adjustable from 0.4-0.6Mpa.

pressure relief ventsmoke detectorExplosion proof window

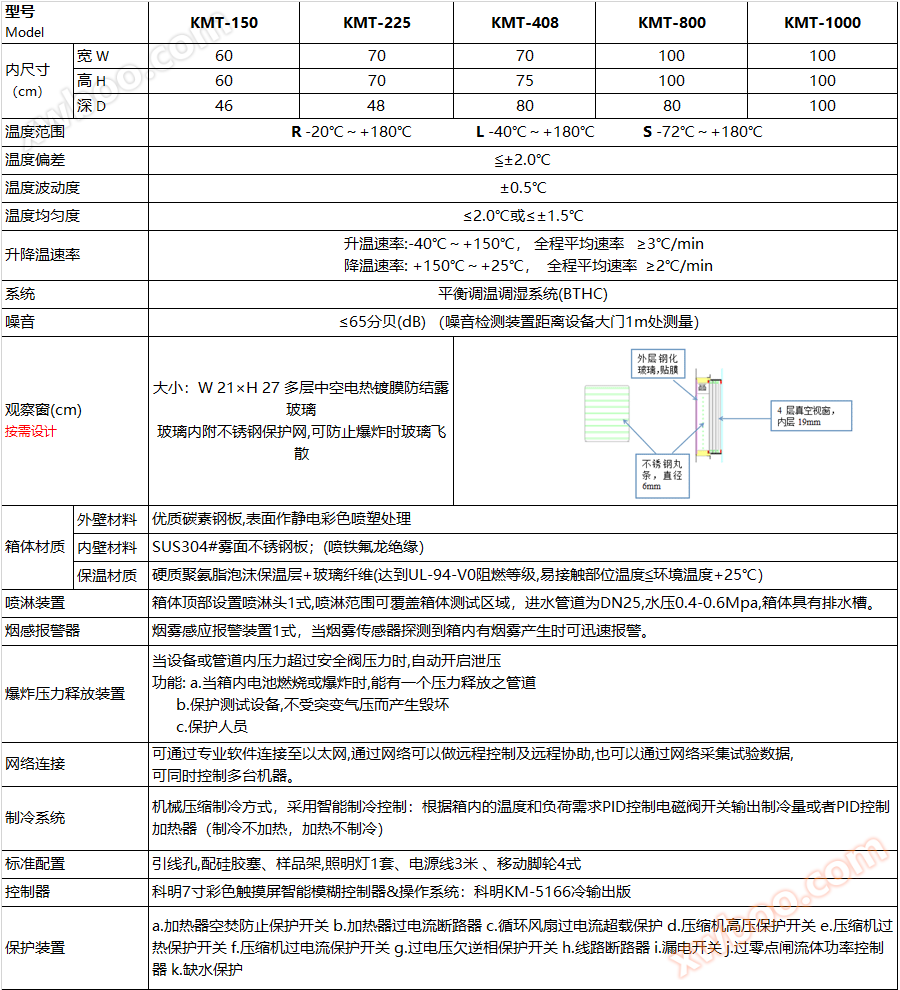

Product Parameters：

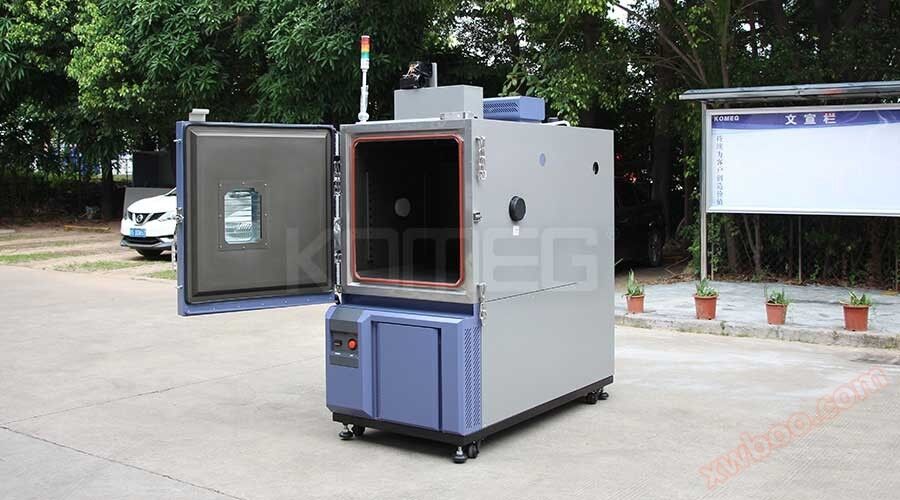

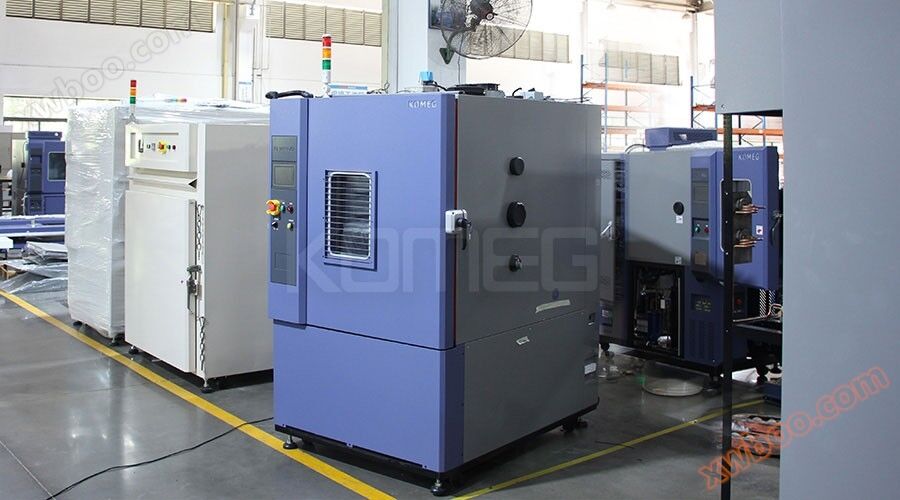

Product actual photos

Meet the testing standards (methods)：
GB/T 31484-2015 "Cycle Life Requirements and Test Methods for Power Batteries for Electric Vehicles"
GB/T 31485-2015 "Safety Requirements and Test Methods for Power Batteries for Electric Vehicles"
GB/T 31486-2015 "Requirements and Test Methods for Electrical Performance of Power Batteries for Electric Vehicles"
GB/T 31467.1-2015 "Lithium ion power battery packs and systems for electric vehicles - Part 1: High power application testing procedures"
GB/T 31467.2-2015 "Lithium ion power battery packs and systems for electric vehicles - Part 2: High energy application testing procedures"
GB/T 31467.3-2015 "Lithium ion power battery packs and systems for electric vehicles - Part 3: Safety requirements and testing methods"
