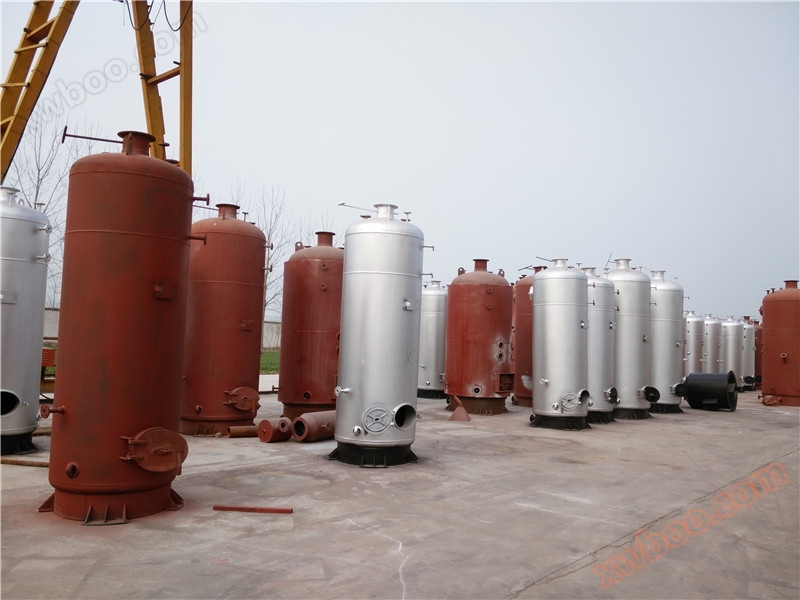

The LSG (H) type transverse water tube boiler adopts traditional combustion technology. Coal is input from the furnace door and burned on the grate. The flue gas is flushed through the transverse water tubes in the furnace, and the small carbon black and dust contained in the flue gas are cut by multiple tube bundles and burned again on the grate, and then discharged into the atmosphere through the chimney. Manufacturer's spot supply of small vertical industrial coal-fired steam boilers, with the lowest price for vertical steam boilers

◆ Product Usage:

Industrial sector: Supply of steam for thermal power plants, shipyards, precision instrument manufacturing plants such as petrochemicals, pharmaceuticals, biotechnology, baking and other processes in the food industry; Places in the factory that require hot water.
Life field: steam usage in hotel laundry rooms, steam disinfection of hospital equipment, steam usage in canteens, saunas and beauty salons; Residential areas, schools, office buildings, hotels, and other places that require heating; Hot water supply such as hotel baths.

Performance advantages

1. Boiler components include the boiler body, boiler base, coal feeding door, front and rear smoke boxes, furnace wall, and insulation layer.

2. Blower: including electric motor, blower base, and inlet pipe, etc.

3. Induced draft fan: including electric motor, bearing seat, and flue connecting pipe, etc.

4. Chimney.

5. Water supply equipment, valves, instruments, and pipeline components.

6. Electric control cabinet.

When installing two or more boilers at the same time, attention should be paid to the markings (boiler factory number) of the blower (including blower base and interface), induced draft fan (including inlet duct) and other components, which should be the same as the markings on the boiler.

8. Boiler accompanying documents: There are two copies each of the general layout, overall drawing, body, header, furnace wall, pipeline and instrument valves, insulation layer, foundation drawing, platform escalator, chimney, vulnerable parts drawing, strength calculation of pressure components, installation and use instructions, boiler master list, and one product quality certificate.

Technical Parameter

Model Type	Rated Output (T/H)	Rated Steam Pressure (Mpa)	Rated steam temperature (° C) Steam Temperature	Heating area (M2)	Grate Area (M2)	Dimensions (M) Size
LSH0.5-0.4-Y/Q	0.5	0.4	151	18.06	0.78	1.2x3.8(LxH)
LSH0.7-0.4-Y/Q	0.7	0.4	151	24.6	1.13	1.4x3.9(LxH)
LSH0.5-0.7-Y/Q	0.5	0.7	170	20	0.78	1.2x3.8(LxH)
LSH0.7-0.7-Y/Q	0.7	0.7	170	27.5	1.13	1.4x4.1(LxH)
LSH1-0.7-Y/Q	1	0.7	170	46.3	1.54	1.6x4.9(LxH)
LSG1-0.4-Y/Q	1	0.4	151	38.6	1.54	1.6x4.8(LxH)

Working principle

1. Compact structure, easy installation, and low infrastructure investment.

2. The longitudinal flushing of the flue gas through the convection tube bundle fully utilizes the heating surface and improves the efficiency of the boiler.

3. Multiple return and circulation of flue gas, achieving natural dust removal without the need for induced draft fans, saving energy
