Nantong Dongchen Heavy duty Machine Tool Co., Ltd
W11Y hydraulic symmetrical three roll plate rolling machine
NegotiableUpdate on 03/10
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview

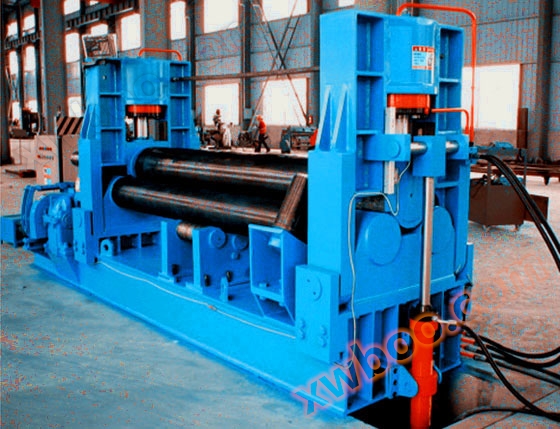

W11Y hydraulic symmetrical three roll plate rolling machine
Product Details
Technical parameters:
| Specification and model | Roll board large Thickness mm |
Roll board large Width mm |
Plate yield Maximum Mpa |
Rolling speed m/min |
Full load small Diameter mm |
Upward axis straight Diameter mm |
Lower axis straight Diameter mm |
Two axes in the middle Heart distance mm |
Main motor Power kw |
Motor Power kw |
| W11-30*2000 | 30 | 2000 | 245 | 4 | 1200 | 360 | 290 | 480 | 22 | 7.5 |
| W11-25*2500 | 25 | 2500 | 245 | 4 | 1200 | 370 | 300 | 480 | 22 | 7.5 |
| W11-30*2500 | 30 | 2500 | 245 | 4 | 1200 | 420 | 360 | 550 | 30 | 11 |
| W11-25*3000 | 25 | 3000 | 245 | 4 | 1200 | 430 | 370 | 550 | 30 | 11 |
| W11-30*3000 | 30 | 3000 | 245 | 4 | 1200 | 450 | 390 | 600 | 30 | 11 |
| W11-40*2500 | 40 | 2500 | 245 | 3.5 | 1400 | 500 | 400 | 600 | 37 | 15 |
| W11-40*3000 | 40 | 3000 | 245 | 3.5 | 1600 | 540 | 440 | 600 | 45 | 18.5 |
| W11-50*3000 | 50 | 300 | 245 | 3.5 | 2000 | 580 | 480 | 750 | 55 | 22 |
| W11-60*3000 | 60 | 3000 | 245 | 3.5 | 2400 | 660 | 560 | 800 | 75 | 30 |
| W11-70*3000 | 70 | 3000 | 245 | 3.5 | 2800 | 710 | 620 | 850 | 90 | 37 |
| W11-80*3000 | 80 | 3000 | 245 | 3.5 | 3200 | 770 | 680 | 900 | 90 | 37 |
| W11-90*3000 | 90 | 3000 | 245 | 3.5 | 3600 | 820 | 730 | 950 | 110 | 45 |
| W11-100*3000 | 100 | 3000 | 245 | 3.5 | 4000 | 860 | 770 | 1000 | 110 | 45 |
| W11-110*3000 | 110 | 3000 | 245 | 3.5 | 4400 | 900 | 810 | 1080 | 132 | 55 |
| W11-120*3000 | 120 | 3000 | 245 | 3.5 | 4800 | 950 | 860 | 1160 | 132 | 55 |
