VMC850 Machining Center VMC850 Vertical Machining Center/Wire Rail Machining Center Professional Machining Center Manufacturer

VMC850Machining Center/Track machining centerKey Features:

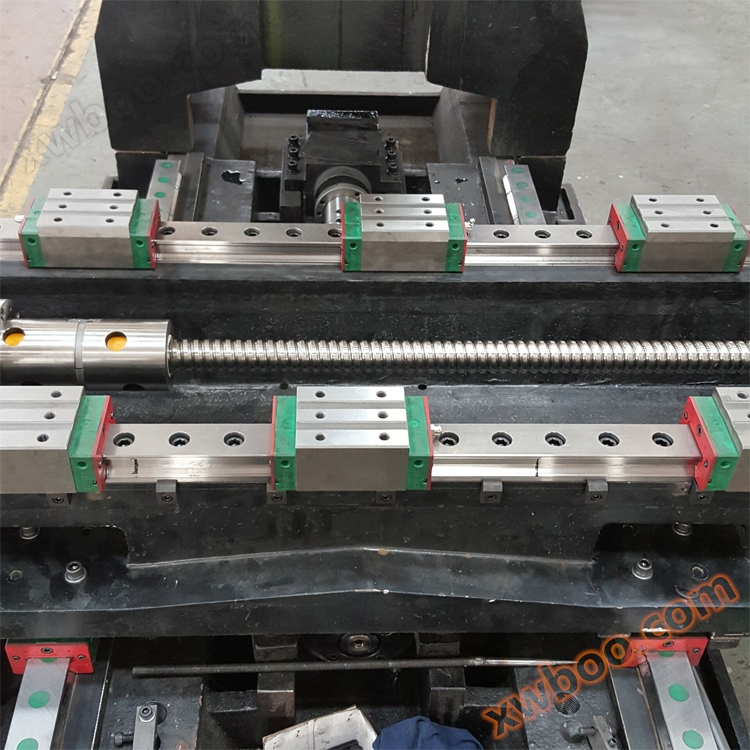

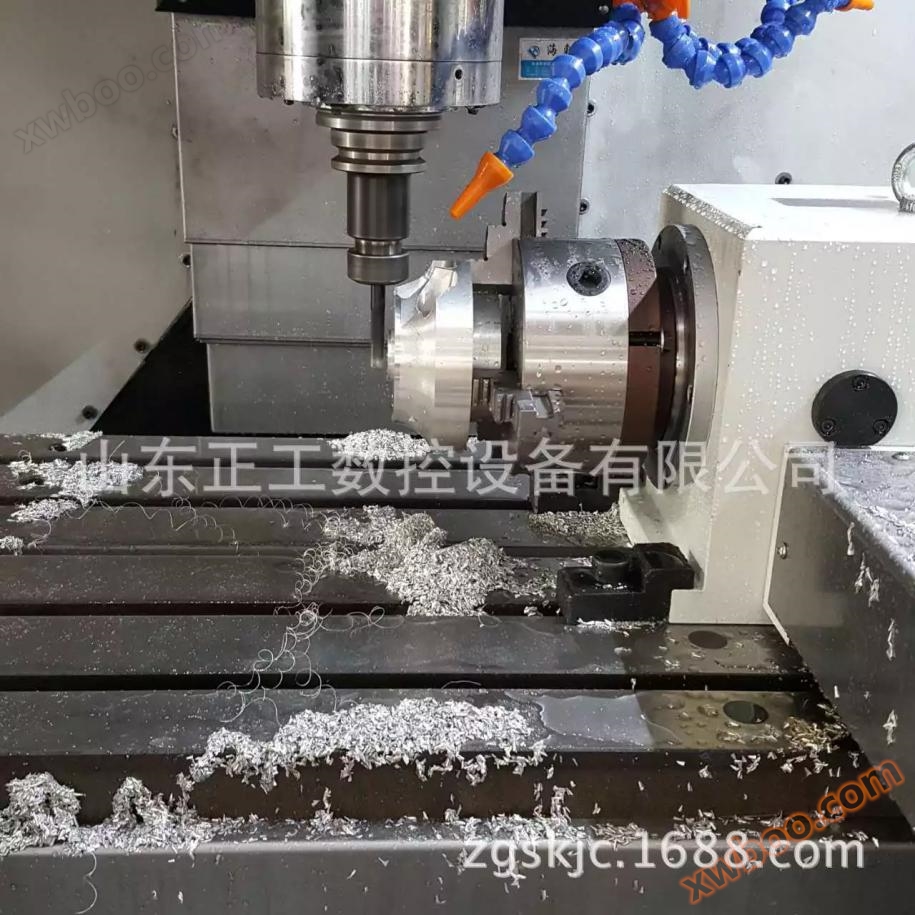

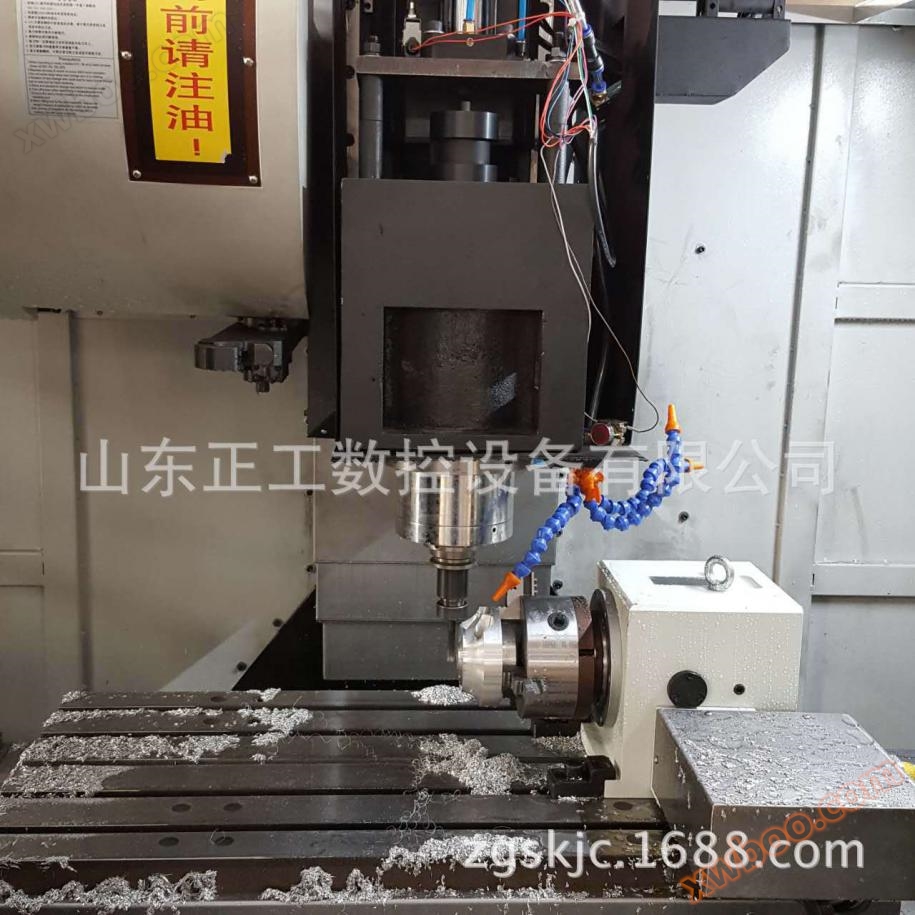

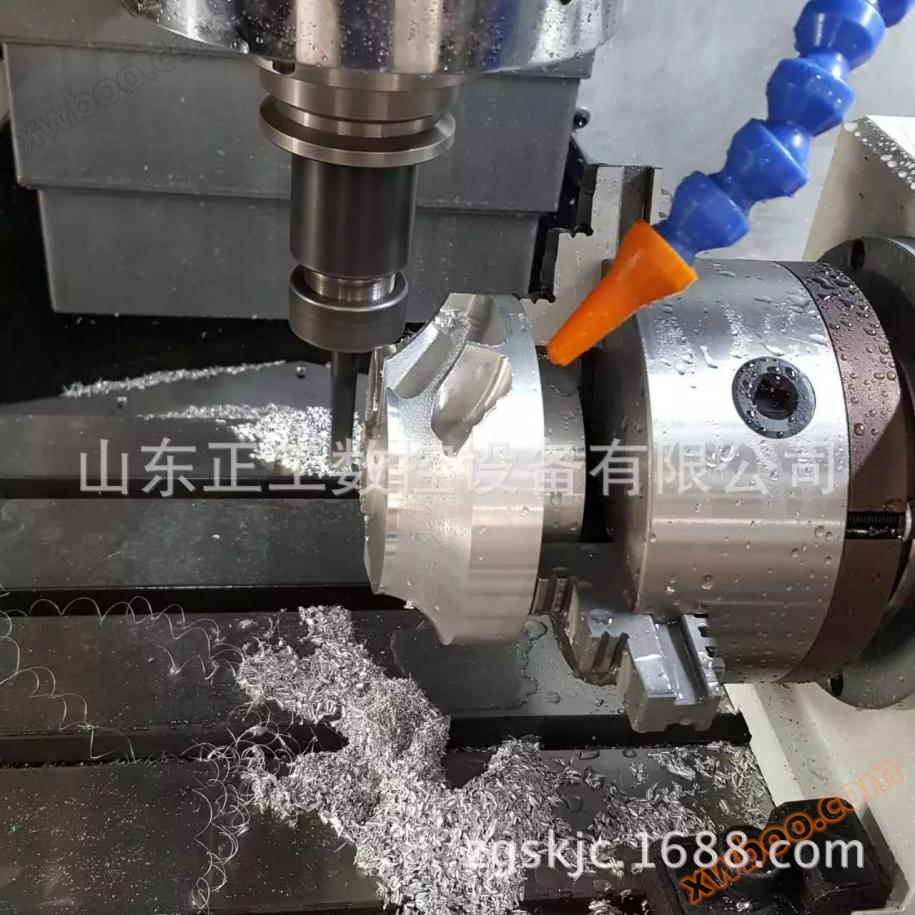

VMC850Machining CenterIn standard configuration, the feed axis isXTheYTheZThree coordinate three linkage control. All three axes adopt linear guide rails, which have the advantages of high precision, high speed, and high efficiency in machining. It can complete various processes such as drilling, milling, boring, expanding, and reaming for complex parts such as disks, plates, shells, cams, and molds in one clamping. Equipped with a fourth axis CNC indexing head or rotary worktable, it can process more complex parts such as spiral grooves on the rotating body.

VMC850The machining center not only meets the above functions, but also has a rigid tapping function. By clamping the workpiece once, multiple cutting tools can be continuously combined for processing, greatly improving the efficiency of the machine tool, ensuring accuracy in multiple processes of part processing, reducing clamping times, reducing auxiliary working hours, and eliminating the trouble of manual tool changing and alignment, achieving automatic modernization processing.

This model of CNC machining center is suitable for processing various types of parts, especially for processing complex shapes, multiple processing contents, and parts with high precision requirements, which can demonstrate its superiority.

VMC850Machining Center/Track machining centerMain structural features:

1VMC850Machining CenterThe bed frame casting adopts a high rigidity cast iron structure, and the basic components are molded with resin sand and treated with aging (tempering process), ensuring the accuracy stability of the machine tool for long-term use and providing a guarantee for the reliability of the machine tool performance.

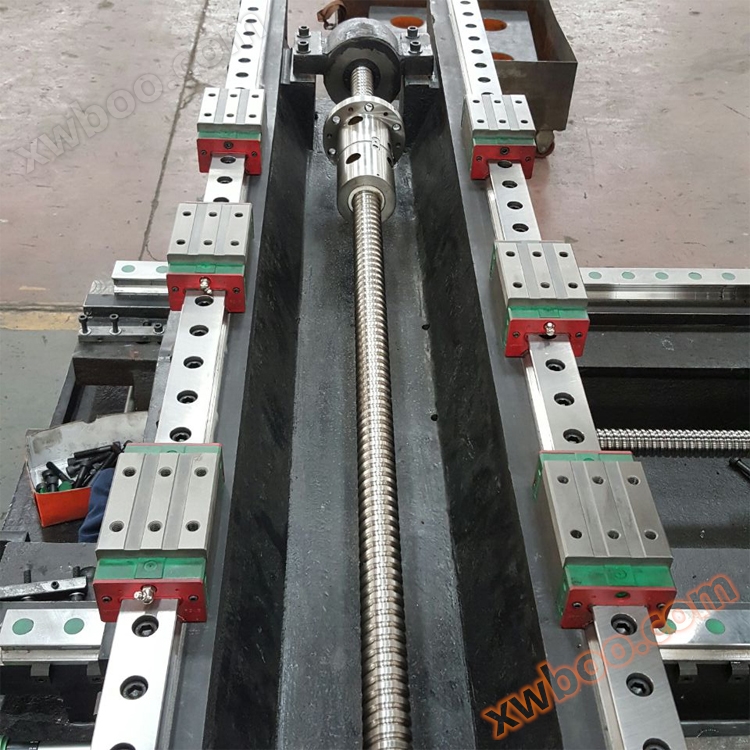

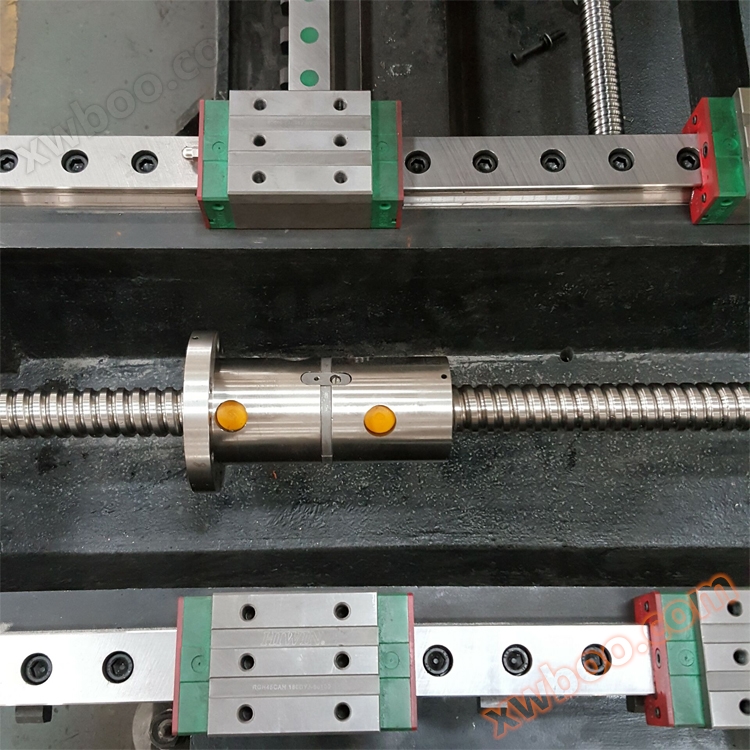

2VMC850Machining CenterXTheYTheZThree directions of feed, using high-precision and high-strength ball screws, all with pre stretched structures, high feed speed, and high positioning accuracy of the machine tool;

3TheVMC850Machining CenterXTheYTheZStainless steel telescopic covers are used in all three directions for sealed protection, ensuring the cleanliness of the screw and guide rail, and guaranteeing the transmission and motion accuracy of the machine tool;

4VMC850Machining CenterThe external protection is designed with a fully enclosed structure, which is safe, reliable, and aesthetically pleasing;

5TheVMC850Machining CenterAdopting a centralized automatic intermittent lubrication device, the lubrication is sufficient and reliable, and can lubricate the guide rails, screws, and other lubrication points in three directions at regular and quantitative intervals; When the fuel tank is short of oil, the system will automatically sound an alarm;

6TheVMC850Machining CenterThe configuration of CNC systems is rich and diverse, with multiple brands of systems available for users to choose from, such as Japan's Fanuc system, Taiwan's new generation system, Kandi system, and other different grades and brands.

7TheVMC850Machining CenterAll three axes are detected by laser interferometer and compensated for pitch error.

VMC850Machining Center/Track machining centerMain parameters：

(1)From the date of final acceptance of the machine tool, Party B shall provide three guarantee services for the product, with a warranty period of12Within the warranty period of one month, free maintenance will be provided for the product.

(2)During the warranty period, if it is confirmed that the mechanical appearance or internal damage is caused by the user's reasons, such as during loading and unloading transportation or prolonged storage time; Any human damage caused by improper operation or self disassembly and modification is not covered by the above free warranty, and the user must pay all repair and refurbishment costs.

(3)If the machine tool malfunctions and the user information is obtained, and the cause of the malfunction and the corresponding measures can be accurately determined, an immediate response will be given. If an immediate response is not possible, it will be provided24Reply within hours and send someone to the site as soon as possible to handle it. The specific time depends on the preparation time of the parts.

(4)After the warranty period has expired, our company will continue to provide repair services to users and charge part costs and service fees according to our company's charging standards.

Contact:Manager Wang

mobile phone:

telephone: 0632-5592889

fax: 0632-5592669

address:West Ring Road, Tengzhou Economic Development Zone, Shandong ProvinceMachine Tool Industrial Park766number
