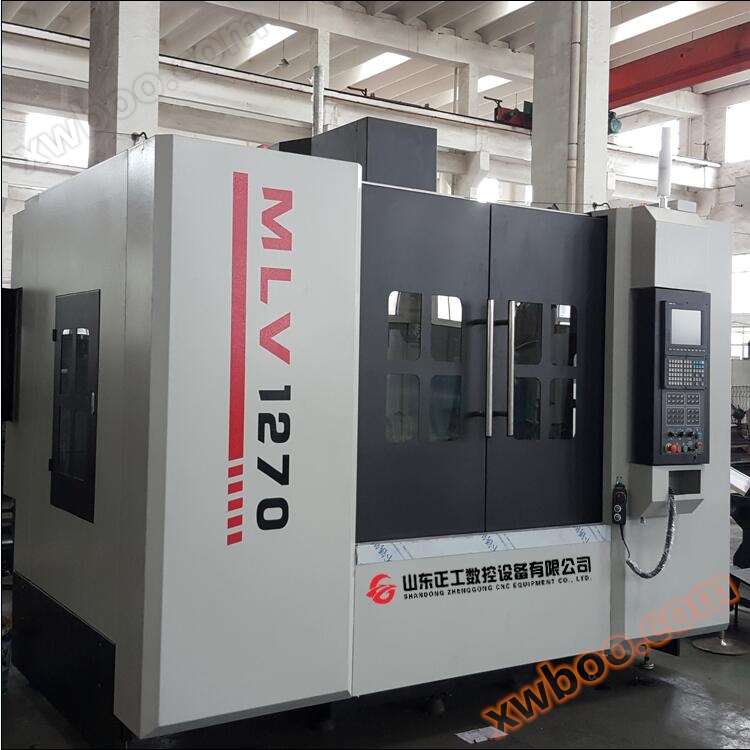

VMC1060Hard track CNC milling machine

Date: October 15, 2017 Source: Shandong Zhenggong CNC Equipment Co., Ltd

VMC106Main structure and characteristics of hard track CNC milling machine:
The bed components have undergone finite element optimization analysis, and the bed castings are made of high-strength cast iron with stable metallographic structure. After strict process treatments such as aging, sandblasting, and tempering, the reliability and stability of the long-term accuracy of the machine tool are ensured;
The cross shaped structure in the shape of a "human" has been optimized through three-dimensional variable diameter processing, which reduces the vibration of the machine tool during strong cutting, improves the rigidity of the machine tool, and enhances the cutting force.

VMC106Hard track CNC milling machineProduct Description：

1. X, Y, Z three-axis travel: 1100 × 600 × 600mm.

2. The spindle transmission method can be modified to gearbox transmission, suitable for strong cutting and heavy cutting;

3. The head group is a heavy-duty box structure. Internal rib reinforcement, high rigidity.

4. The spindle cutting method adopts a locking tool, which ensures uniform force on the spindle and good stability during cutting.

5. The electrical box adopts an internal isolation design, separating the heat source part of the controller and using a heat exchanger to dissipate heat in front to prevent external dust from entering the electrical box; The rear side uses a fan to dissipate heat from the fan heating plate.

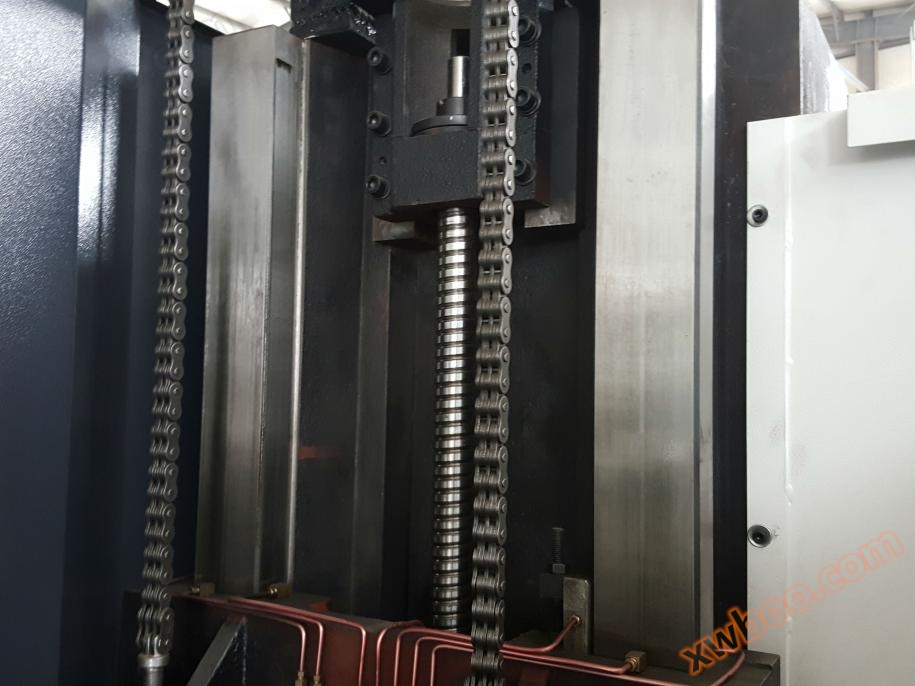

6. The three-axis adopts high-precision ball screws from Taiwan, combined with precision nut preloading and tail end pre tensioning devices, to ensure that the machine's backlash and thermal deformation are kept at low values for a long time.

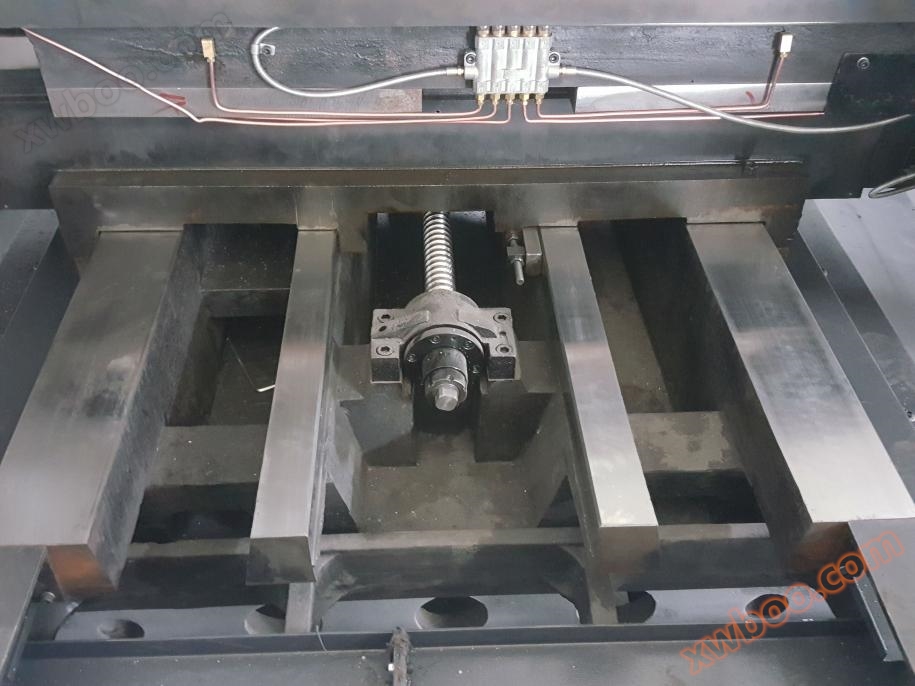

7、VMC1060Hard track CNC milling machineX. The Z-axis adopts a width of 80mmAfter quenching treatmentHard rail, with 4 widened hard rails in the Y direction, has high stability, high rigidity, low noise, and low friction, with a fast moving speed of 12/12/10m/min.

8. All finished products have undergone laser positioning correction and circular testing. To ensure optimal positioning accuracy and servo characteristics. And strict inspection measures are taken before the machine is shipped to ensure the long-term stability of its various accuracies.

IIVMC106Main technical parameters of hard rail CNC milling:

Our company specializes in the production and sales of VMC1060 hard rail CNC milling machines. The company has a complete and diverse range of hard rail CNC milling machine models, and can customize high cost-effective and high-performance CNC milling machine products according to customer processing requirements. Welcome customers with needs to call for consultation or conduct on-site inspections!
