U-shaped hot air dry burning heating tube, stainless steel oven heating tube, directly supplied by the manufacturer

Is it imported	deny	Customized processing	correct	brand	heat wave
model	TNJ6U	material	304 stainless steel	power	100-3000（W）
working voltage	220v、380v（V）	pipe diameter	12. 14, 16, 18 (mm)	Main purpose	Heating Equipment
Product Certification	ce certificate	service life	9000（h）

Wholesale hot selling multi U-shaped hot air heating tube threaded fastening double head electric heating tube made of fine stainless steel material


U-shaped hot air dry burning heating tube, stainless steel electric heating tube, stainless steel oven heating tube, directly supplied by the manufacturer

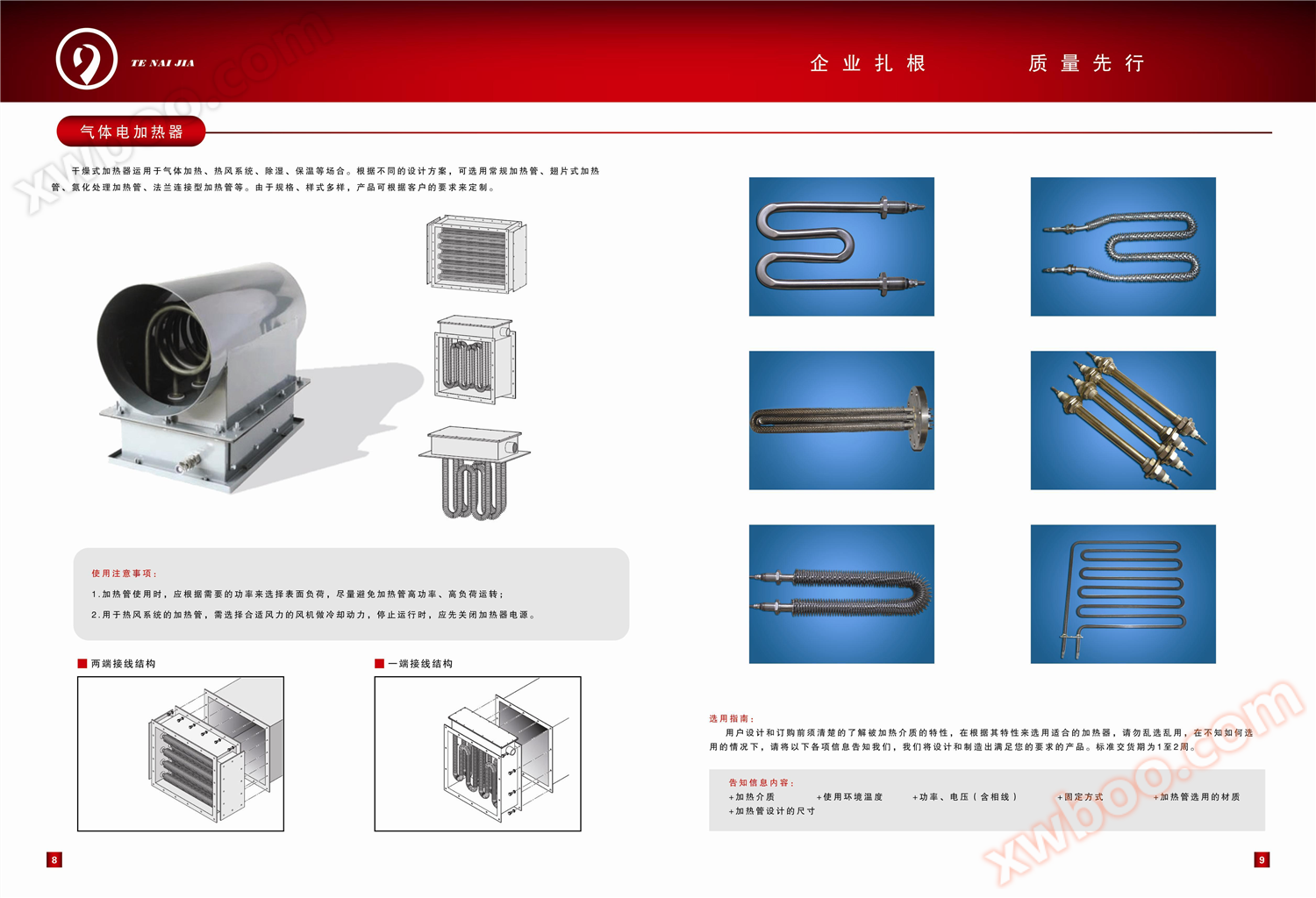

Metal heater (for air)

Product Overview:

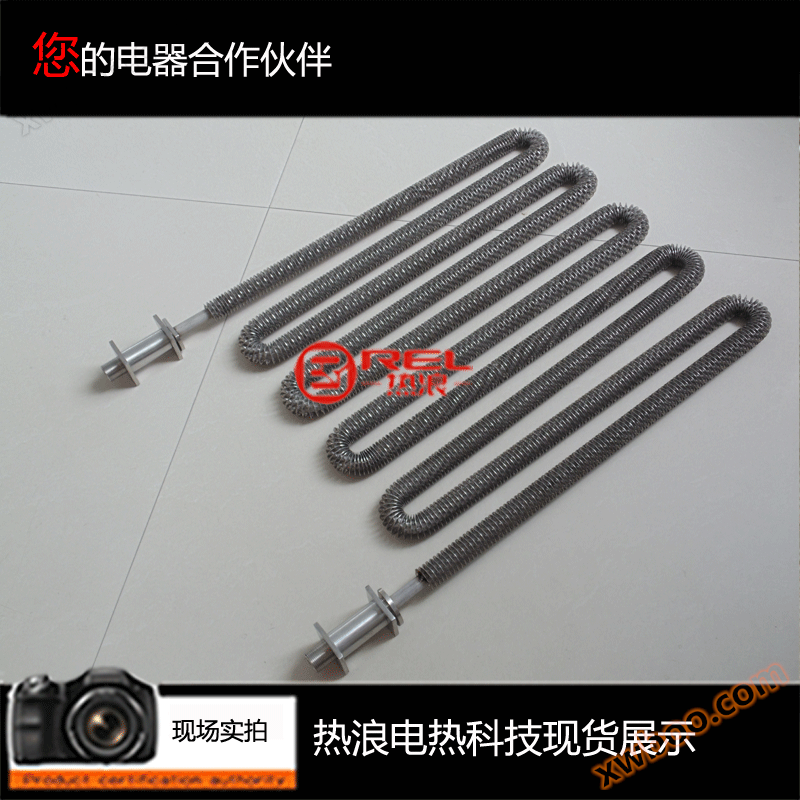

The heating tube for hot air adopts air convection for heat exchange. Due to the low heat transfer efficiency in air, the unit area heat load is usually designed to be lower than that of the heating tube for liquid. In order to improve the design heat load and increase the heat dissipation efficiency, a spiral heat dissipation sheet is wrapped around the outer surface of the heating tube during design, which effectively increases the heat dissipation area and prolongs the service life of the heating tube.

Product Usage:

Heating pipes for hot air are often used in places where static or flowing air is heated, such as air conditioning auxiliary heating, heating systems, oven drying equipment, hot air duct systems, textile machinery, generator sets, power equipment, etc., which require hot air heating or load aging. Fixed connection methods such as frames or threads can be used.

Design and production parameters:

Outer tube diameter: Φ3~Φ25、

Sheath material: SUS304, SUS321, Incoloy840, Incoloy800

Surface treatment: polishing, borax, spraying

Voltage used:220V、220V-3P、380V、380V-3P、415V-3P

Common power:1.0kW~60 kW

Operating temperature:0-450℃

Selection Guide

Before designing and ordering, users must have a clear understanding of the characteristics of the heated medium, and choose a suitable heater based on its characteristics. Do not use it arbitrarily, as it may cause unnecessary trouble. Instead, you can refer to the design and production parameters and inform us of the following information. We will provide the best design services and products according to your needs.

Notify information

1. Characteristics and operating temperature of heating medium;

2. Power and voltage used (including phase lines);

3. Size of heater interface;

4. Installation and fixing method of heating tube;

5. Is there air cooling and what is the air volume;

6. Do you have any special requirements for the material of the heating tube;
