220v250w packaging machine electric heating rod

NegotiableUpdate on 12/01

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

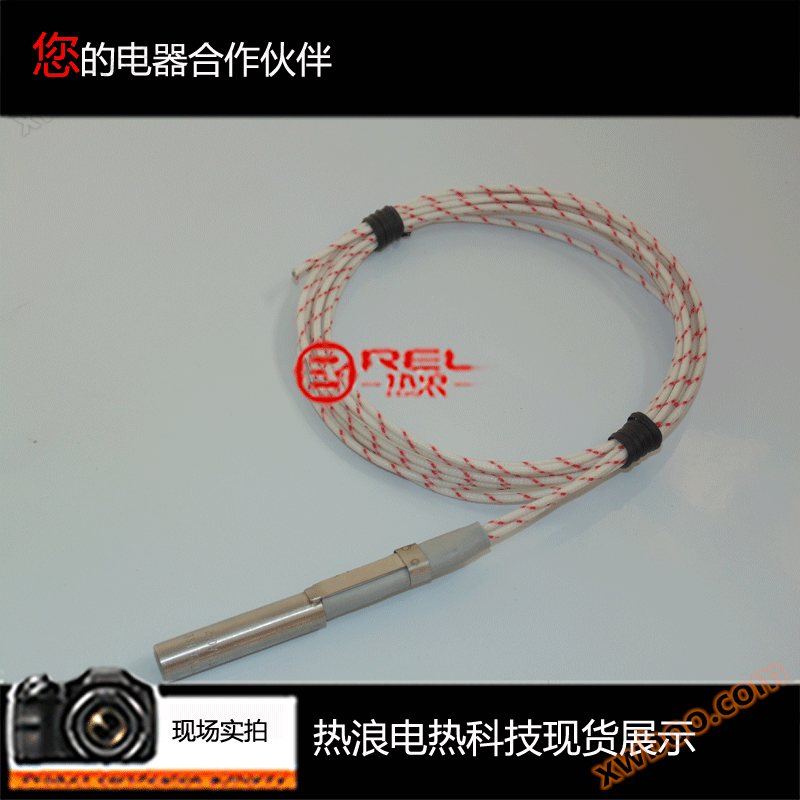

The metal mold heating tube, also known as the single head electric heating tube, uses Ni80Cr20 alloy heating wire as the heating element, high-temperature resistant insulating magnesium oxide powder as the insulating thermal conductive medium, and high-temperature resistant alloy material as the shell sheath. Combined with the wire winding process of one end outlet structure, it has the characteristics of high heat generation, small volume, high temperature resistance, high precision, and fast heating speed. In order to facilitate temperature detection, overheating protection, and extend the service life of the heating tube, temperature measuring thermocouples can be integrated into the interior of the heating tube.

Product Details

Whether it is imported	No	Processing & Customization	yes	brand	heat wave
model	TNJ-1250220250	material	304 stainless steel	power	250（W）
Working Voltage	220（V）	pipe diameter	12（mm）	main purpose	mold
Product Certification	ce	service life	8000（h）	length	Length 50mm
diameter	12mm	Thermal density	19w/cm2

Diameter 12mm electric heating tube, length 50mm dry burning heating tube 220v250w packaging machine electric heating rod dry burning heating tube in stock

Compared with similar domestic products, it has the following significant advantages:

1. High thermal efficiency. During the design and production process, the external wire winding production technology is adopted, effectively improving the thermal conductivity of the heating wire;

2. The use of materials and equipment, combined with exquisite production technology, results in products with comparable performance compared to similar foreign products, but at a price that is 1/4 of similar products;

The use of sealing adhesive for 1200 degree high-temperature resistant electric heating tubes solves the problems of low temperature resistance and poor flame retardancy of ordinary materials such as epoxy and silicone rubber;

4. Ceramic sealing technology effectively isolates the heat of the heating tube from dissipating to the wire part, without causing the occurrence of "short circuit" or "short circuit" faults;

5. The diameter of the 12mm electric heating tube and the length of the 50mm 220V 250W packaging machine electric heating rod dry burning heating tube product have stable performance and a service life that is more than 5 times that of conventional electric heating tubes.

Diameter 12mm 50mm electric tube length 220v250w packaging machine electric rod dry heat pipe spot
Compared with the domestic similar products have the following significant advantages:
1 high thermal efficiency, the design, the wire production process using, effectively improves the heat conduction ability of the heating wire;
2. Import materials and equipment used, in conjunction with the exquisite production technology, factory product performance and the foreign same products compared, comparable to, but the price is for 1 / 4 of the imported products;
3.1200 degree temperature resistance heat pipe sealing glue used, solve the ordinary epoxy, silicone rubber and other materials, low temperature, flame retardant problem;
4 ceramic sealing process, the heat emitted from the heat pipe is distributed to the conductor part, without the appearance of 'short circuit' or 'short circuit';
5 220v250w 12mm 50mm packaging machine electric rod dry heat pipe product performance is stable, service life of the conventional electric heating tube more than 5 times.
