Sigma Optical Machine Automatic Sliding Platform: Core Technology for Precise Positioning

Optical automatic slide tableIt is an electromechanical integrated device used to achieve high-precision linear or rotational positioning, widely used in optical experiments, industrial automation, laser processing, precision measurement and other fields. Its core function is to adjust the displacement of optical components or equipment at the micrometer or even nanometer level through automation control, in order to meet the strict requirements of precision optical systems for position, angle, and stability.

1. Core components

The Sigma optical machine automatic slide table usually consists of the following key components:

·Guide rail and transmission mechanism:Using ball screws or cross roller guides to ensure low friction and high rigidity movement. For example, the SGMV series automatic displacement table of Sigma Optics achieves repeat positioning accuracy within ± 1 μ m through precision ball screws.

·Drive unit:Including stepper motors (such as 5-phase stepper motors) or servo motors (such as AC servo motors), supporting fast response and remote control.

·Control system:Multi axis linkage and complex motion trajectory planning are achieved through slide table controllers (such as HSC-103), supporting closed-loop feedback to improve stability.

·Sensors and Feedback Systems:Integrated encoder or grating ruler, real-time monitoring of position deviation, ensuring that key parameters such as Z-axis perpendicularity comply with JIS industrial standards.

2. Technical principles

The operation of the automatic slide table is based on the following technical principles:

·Precision mechanical transmission:The ball screw converts the rotational motion of the motor into linear displacement, and works in conjunction with cross roller guides to reduce vibration and offset, making it suitable for high load scenarios.

·Closed loop control technology:By providing real-time feedback of position information through sensors, the control system dynamically adjusts the motor output to eliminate accumulated errors. For example, the servo motor slide table (SGMV series) of Sigma optical machine optimizes positioning accuracy through PID algorithm.

·Multi axis collaborative control:In XYZ three-axis or more degree of freedom systems, each axis is independently driven and synchronized through software to achieve precise control of complex spatial trajectories.

3. Technical advantages of Sigma optical machine

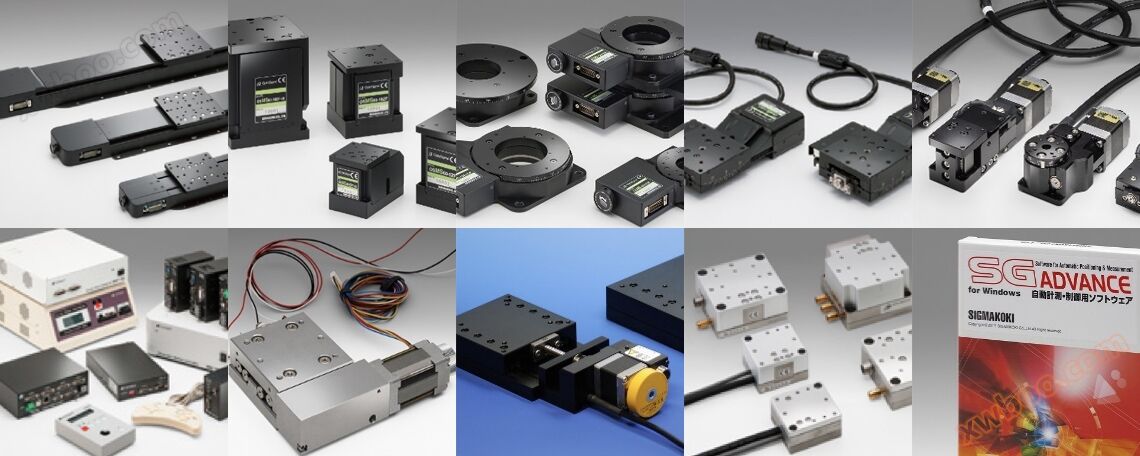

Sigma Optics' automatic displacement table products (such as HST built-in grating ruler automatic displacement table, TAMM cross cross roller guide aluminum alloy automatic displacement table, HPS high-performance automatic displacement table, etc.) have outstanding performance in the following aspects:

·High repeatability positioning accuracy:Some models can reach ± 0.5 μ m, meeting the calibration requirements of laser interferometers.

·Diversified itinerary options:Covering a travel range of 35mm to 200mm, suitable for different application scenarios.

·Lightweight and compatibility:Some models are made of aluminum alloy material, which combines lightweight and high rigidity, and supports integration with optical platforms, vibration isolation tables, and other equipment.
