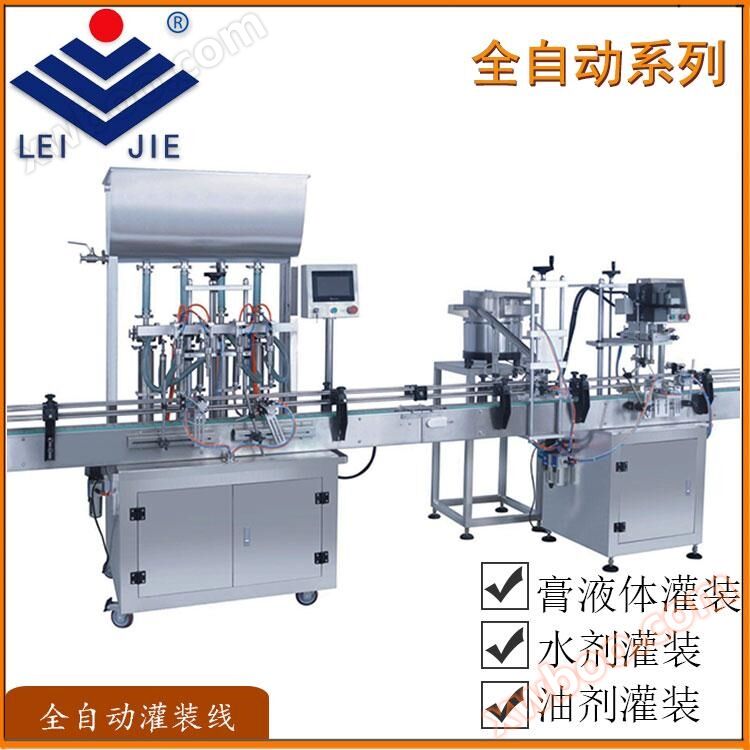

QG-4-1 type four head piston fully automatic filling machine (for thick materials)

NegotiableUpdate on 08/04

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Product Description Technical Performance: This machine adopts a special three-way filling valve, suitable for filling water and cream products, especially for high viscosity materials (such as thick sauce, chili sauce, tomato sauce, seed coating agent, microemulsion, suspension agent, etc.), and has high precision

Product Details

DESCRIPTION

Technical performance:
This machine adopts a special three-way filling valve, which is suitable for filling water and cream products, especially for high viscosity materials (such as thick sauce, chili sauce, tomato sauce, seed coating agent, microemulsion, suspension agent, etc.), and has high accuracy. The machine adopts PLC programmable control and is equipped with a 6-inch touch screen human-machine interface system, which implements automatic bottle feeding, filling, and discharging. The electrical and pneumatic components are all from international brands, ensuring excellent quality and long-lasting stable performance. This device has a simple structure and easy operation, making it an ideal filling equipment for high viscosity materials in China.
　　

Technical parameters:
◆ Number of filling heads: 4 heads
◆ Applicable bottle diameter: Ø 33- Ø 100 millimeters
Measurement accuracy: ± 1%
◆ Canned capacity: 40-1000 milliliters
Production capacity: 2400-4500 bottles/hour
Gas source pressure: 0.7-0.9 megapascals
Power supply: 380V/50Hz
Total power: 2.0 kilowatts
◆ Dimensions: 2000 × 1000 × 2200 millimeters
Weight: 1000 kilograms
