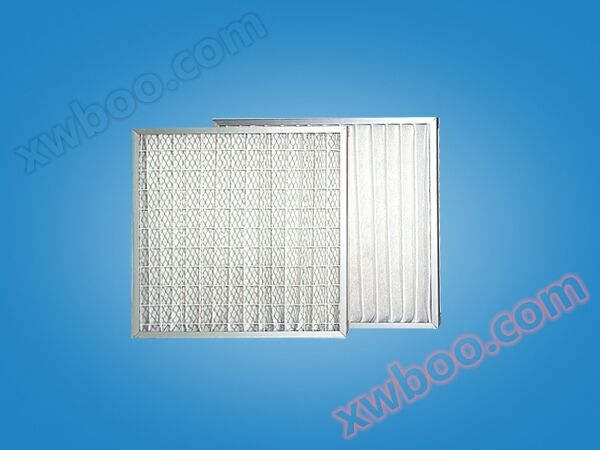

Primary filter screen
NegotiableUpdate on 10/10
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
Product characteristics of primary filter screen: * The primary filter screen filter material is made of excellent synthetic fibers; Large dust holding capacity and low resistance; *Multi pleated filter material can form ventilation airflow channels, increase filter material area and air supply volume, and reduce air supply resistance; *Temperature resistance of 100 ℃, relative temperature can
Product Details
Product Introduction/ Product introduction
Product characteristics of primary filter screen:*The primary filter material is made of excellent synthetic fibers; Large dust holding capacity and low resistance;
*Multi pleated filter material can form ventilation airflow channels, increase filter material area and air supply volume, and reduce air supply resistance;
*Temperature resistance of 100 ℃, relative temperature can reach;
*The outer frame can be selected from waterproof paper frame, aluminum alloy frame, galvanized frame, and stainless steel frame;
*Low price, initial efficiency filter product features:
*The primary filter material is made of excellent synthetic fibers; Large dust holding capacity and low resistance;
*Multi pleated filter material can form ventilation airflow channels, increase filter material area and air supply volume, and reduce air supply resistance;
*Temperature resistance of 100 ℃, relative temperature can reach;
*The outer frame can be selected from waterproof paper frame, aluminum alloy frame, galvanized frame, and stainless steel frame;
*Low price, easy replacement, and reduced usage costs.
Primary filter purpose:
Pre filtration of air conditioning and ventilation systems can extend the service life of medium and high-efficiency filters.
Technical parameters of primary filter: Specification
| model Type |
Size Size Width x Height x Thickness (mm) |
Rated Air Flow (m)3/h） | Initial Pressure Drop (Pa) | Average Arrival Efficiency |
safety net |
frame Frame |
filter media Media |
| FX-BS-G2 | 595x595x21 | 3200 | 30 | 85% | Double sided spray painted grid | paper frame Cardboard aluminum alloy frame Aluminum alloy Galvanized frame Galvanized sheet |
G2/G3/G4 synthetic fibersnon-woven fabric |
| 295x595x21 | 1600 | 30 | 85% | ||||
| FX-ZD-G3 | 595x595x46 | 3200 | 35 | 95% | Galvanized diamond mesh | ||
| 295x595x46 | 1600 | 35 | 95% | ||||
| FX-ZD-G4 | 595x595x46 | 3200 | 35 | 95% | reinforced steel bars | ||
| 295x595x46 | 1600 | 35 | 95% |
