PPCS type pulse dust collector

Product Details

detailed introduction

Technical parameter table of PPCS offline pulse line bag filter (I)

Model Technical Specifications	PPCS32-3	PPCS32-4	PPCS32-5	PPCS32-6
Processing air volume（）	6690	8930	11160	13390
Total filtration area（）	93	124	155	186
Net filtration area（）	62	93	124	155
Number of dust collection rooms (pcs)	3	4	5	6
Number of bags per room (pieces)	32
Total number of filter bags (pieces)	96	128	160	192
Number of pulse valves (pcs)	3	4	5	6
Specification of pulse valve (inches)	1.5
Filter bag specifications (Diameter)mm×lengthmm）	Φ130×2450
Filter bag material	Select based on the properties of the flue gas
Filter wind speed（m/min）	1.2-2.0(Select different purification and filtration wind speeds based on different dust sources)
Endure negative pressure（Pa）	≤6000
Dust collector resistance（Pa）	1200-1700
Air leakage rate（%）	≤5
Dust collection efficiency（%）	＞99.99
Inlet gas dust concentration（）	＜1000
Dust concentration in export gas（）	＜100
Spray pressure（MPa）	0.5-0.7
Compressed air consumption（）	0.27	0.37	0.46	0.55
Recommended models of air compressors	V-0.67/7-S(To be provided by the purchaser)			V-1.0/7 (To be provided by the purchaser)
Rigid impeller feeder	Determine according to the process requirements
screw conveyor	Determine according to the process requirements
Insulation area（）	26.5	36.5	41	48.5
Total equipment quantity（t）	2.4	3.4	4.4	5.4

Technical parameter table of PPCS offline pulse line bag filter (II)

Model Technical Specifications	PPCS96-5	PPCS96-6	PPCS96-7	PPCS96-8	PPCS96-9
Processing air volume（）	33400	40100	46800	53510	60100
Total filtration area（）	465	557	650	744	836
Net filtration area（）	372	465	557	651	744
Number of dust collection rooms (pcs)	5	6	7	8	9
Number of bags per room (pieces)	96
Total number of filter bags (pieces)	480	576	672	768	864
Number of pulse valves (pcs)	5	6	7	8	9
Specification of pulse valve (inches)	1.5
Filter bag specifications (Diameter)mm×lengthmm）	Φ130×2450
Filter bag material	Select based on the properties of the flue gas
Filter wind speed（m/min）	1.2-2.0(Select different purification and filtration wind speeds based on different dust sources)
Endure negative pressure（Pa）	≤6000
Dust collector resistance（Pa）	1200-1700
Air leakage rate（%）	≤5
Dust collection efficiency（%）	＞99.99
Inlet gas dust concentration（）	＜1000
Dust concentration in export gas（）	＜100
Spray pressure（MPa）	0.5-0.7
Compressed air consumption（）	1.5	1.8	2.1	2.4	2.7
Recommended models of air compressors	V-3/8-S(To be provided by the purchaser)			V-6/7-S(To be provided by the purchaser)
Rigid impeller feeder	Determine according to the process requirements
screw conveyor	Determine according to the process requirements
Insulation area（）	120	130	140	150	160
Total equipment quantity（t）	10.1	12.4	14.1	15.7	17.7

The PPCS series environmental dust collector is a series of bag filters developed by our company through technical cooperation with relevant universities, based on the introduction of advanced foreign technology. It absorbs the advantages of various types of dust collectors such as chamber blowback and pulse jet cleaning, overcomes the disadvantages of insufficient kinetic energy intensity during chamber blowback and the simultaneous formation of "re adsorption" during pulse jet cleaning and filtration, and adopts a high-energy offline dust cleaning method. It has the characteristics of high dust cleaning intensity, long filter bag service life, high dust collection efficiency, and high filtration wind speed, which improves the performance of the dust collector and expands its range of use.

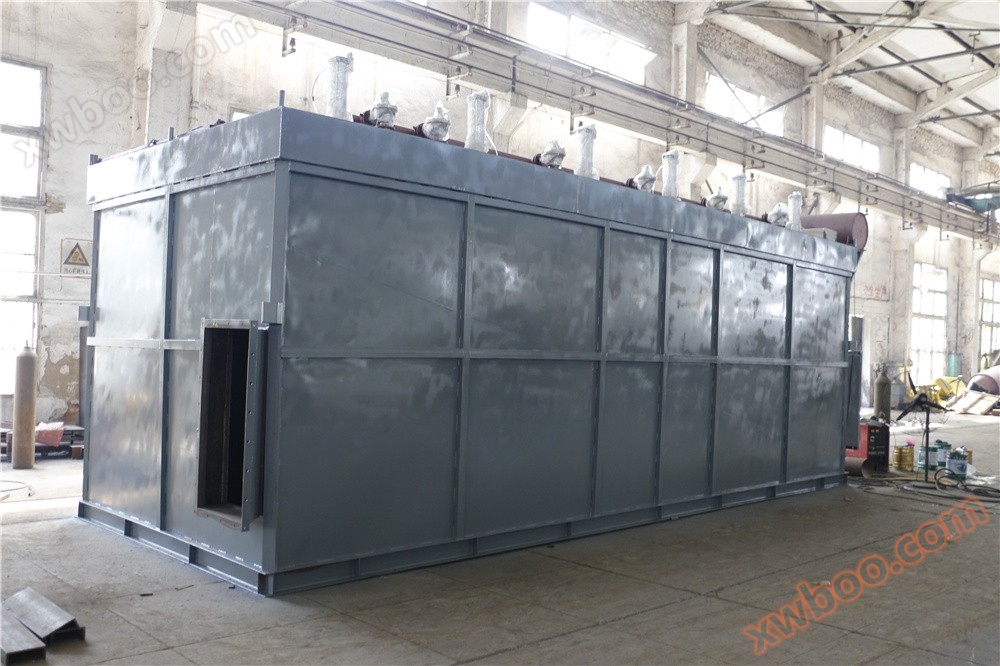

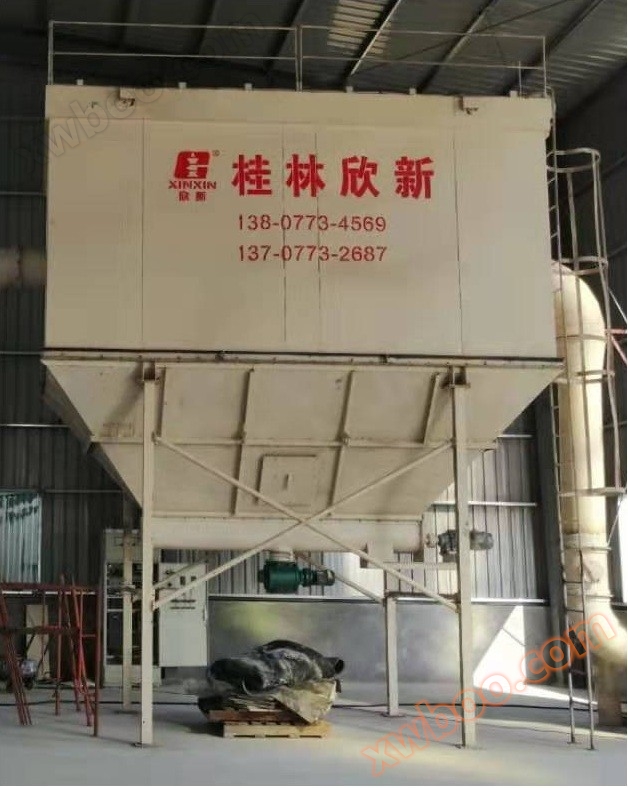

PPCS脉冲除尘器 PPCS型脉冲除尘器
