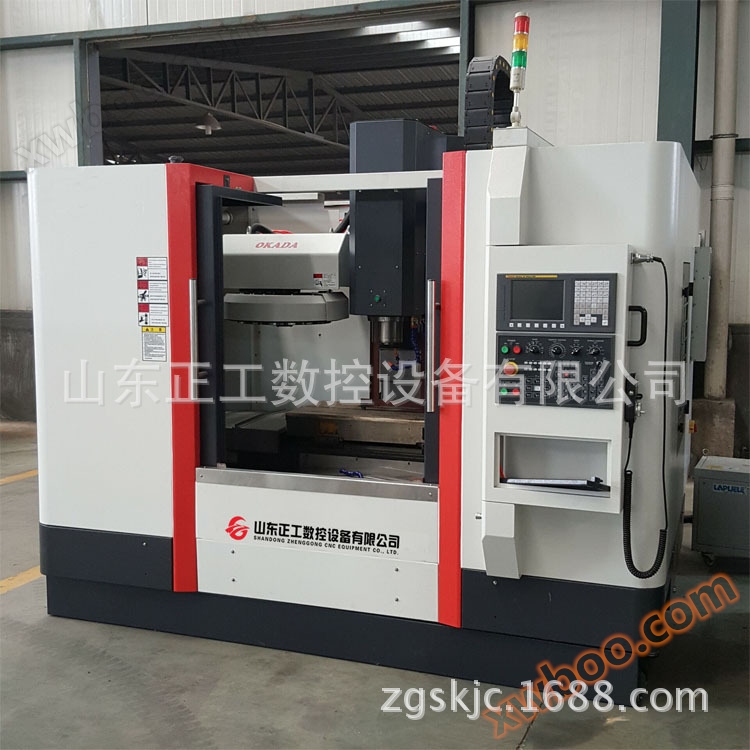

Line rail machining center VMC850 vertical machining center professional high-speed and efficient machining center manufacturer

VMC850linear guideMachining CenterMain Features:

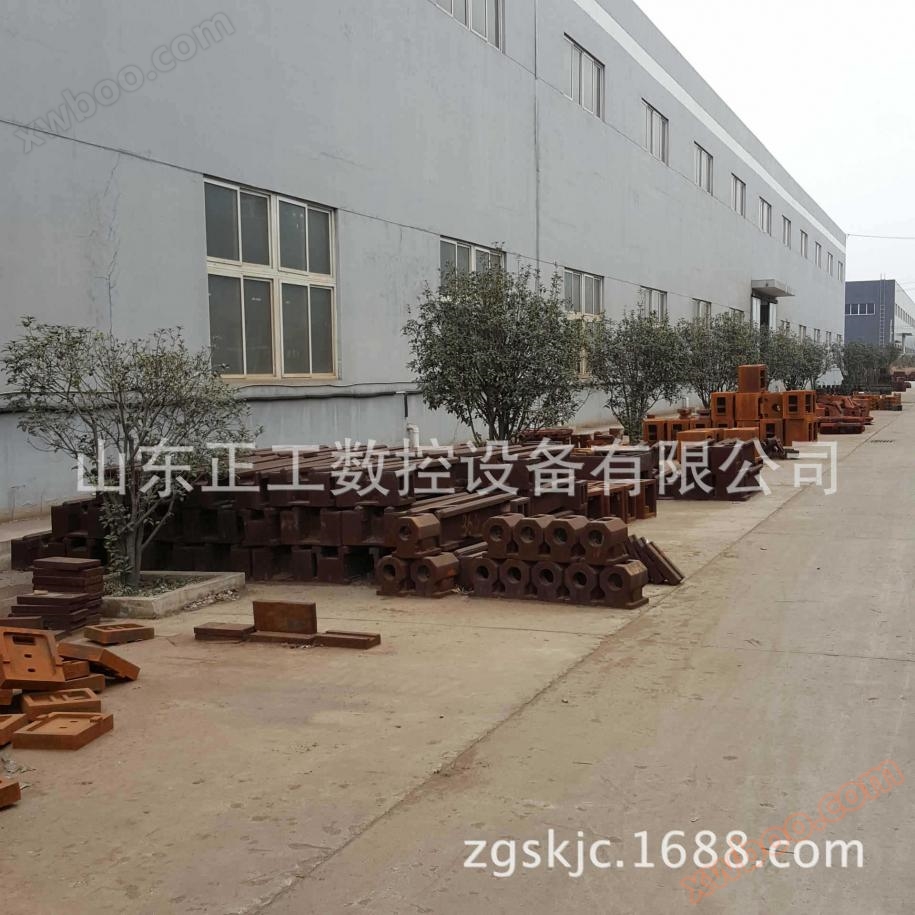

1.The machine tool structure adopts international advanced standards, fully supported optimized design, and high-strength resin sand castings that have undergone strict aging treatment, ensuring high rigidity, minimal deformation, and stable accuracy of the machine tool. machine toolXTheYTheZThe guide rail is made of rectangular quenched cast iron and matched with Taiwanese made ball line rails, which have good rigidity and fast speed;

2.The spindle unit is selected from TaiwanBT40High speed spindle, spindle motor adopts7.5kwHigh power full servo drive ensures the high-speed and high torque machining requirements of the machine tool;

3.Standard new generation6MHigh speed and efficient system, open architecture, fully Chinese character operation interface; standard‘G’Code programming, good compatibility, easy to learn and use; Simultaneously supporting continuous processing of small line segments and breakpoint saving/Recovery and reverse clearance/Single and bidirectional wheelbase compensation functions; Massive program processing capability, with storage capacity of up to2GBThe code program. The spindle adopts servo motor and supports rigid tapping. Domestic and Taiwanese systems can also be configured according to customer needs;

4.Separated handwheel, pneumatic tool changer, fully self-designed protective structure;

5.The machine tool adopts automatic lubrication to ensure the good operation of each component.

Products sold in the UKRENISHAWLaser interferometers and ball bar instruments are strictly inspected to ensure the quality of products leaving the factory.

VMC850 trackMain parameters of machining center:

The standard price is economical and suitable for making products. Customers who make molds are recommended to choose a system with higher configuration!

mark accurate match Place:

Beijing Kaiandi system, Taiwan's new generation operating system with domestically produced motors

1.Taiwan Jianchun/Taiwan Pusen spindle

2.Taiwan Court of Justice/Hiwin Technologies Taiwan Special customization of screw rod（C3Grade)

3.Hard track:Yto, toward, at, facing4Track, sliding surface coated with plastic

4.Track: Taiwan Shangyin Roller linear guide (specially customized) Heavy cutting)

5.GermanyFAG/JapanNSKbearing （P4Grade)

6.Taiwan Shengjie Fighting Hat style Knife Warehouse (Capacity)20T）

7.Electrical box cooling system

8.Automatic lubrication system

9.cooling water pump

10.Handheld air gun/Handheld water gun

11.XYZThree-axis shield

12.Workpiece cooling with two water and one gas

13.Three color warning light

14.Foundation screws and pads

15.Operating machine maintenance manual

16.RS232TheCFCard andUSBinterface

17. Three dimensional enclosed protection

Professional design and development can be carried out according to customer requirements, and the price varies depending on the product configuration. This price is for standard configuration

Please consult before purchasing Determine whether to use a hard rail machining center or a wire rail machining center, and the requirements for the system,Do the requirements for the tool magazine require the spindle center to have water outlet, cutting device, spindle oil cooler, etc!

After sales service and commitment

(1)From the date of final acceptance of the machine tool, Party B shall provide three guarantee services for the product, with a warranty period of12Within the warranty period of one month, free maintenance will be provided for the product.

(2)During the warranty period, if it is confirmed that the mechanical appearance or internal damage is caused by the user's reasons, such as during loading and unloading transportation or prolonged storage time; Any human damage caused by improper operation or self disassembly and modification is not covered by the above free warranty, and the user must pay all repair and refurbishment costs.

(3)If the machine tool malfunctions and the user information is obtained, and the cause of the malfunction and the corresponding measures can be accurately determined, an immediate response will be given. If an immediate response is not possible, it will be provided24Reply within hours and send someone to the site as soon as possible to handle it. The specific time depends on the preparation time of the parts.

(4)After the warranty period has expired, our company will continue to provide repair services to users and charge part costs and service fees according to our company's charging standards.
