Guangxi water fertilizer integrated machine manufacturer provides a 200 acre mountain lemon drip irrigation water fertilizer integrated design fertilizer applicator

Guangxi water fertilizer integrated machine manufacturer provides an overview of the 200 acre mountain lemon drip irrigation water fertilizer integration project

This project covers an area of about 200 acres and is mainly a lemon plantation. The plot size is shown in the diagram, the terrain is flat, and the water source is a newly drilled well with a depth of 70m. The groundwater level is temporarily calculated as 40m, and the system design flow rate is 50m ³/h.

Guangxi water fertilizer integrated machine manufacturer provides 200 acres of mountain lemon drip irrigation water fertilizer integrationconceptual design
Pump system water supply: The location of the water source is shown in the diagram, and it can be adjusted according to the actual situation. According to the system layout, a 30kw submersible pump is tentatively selected, with a head working pressure of 0.8MPa and a design flow rate of 50m ³/h. Filtering method: To ensure the normal use of the sprinkler system, centrifugal filters and laminated filters are installed at the head, with a filtering accuracy of not less than 120 mesh; Power supply and distribution area of pump room: The pump room requires a three-phase AC power supply of 380V and 40KW or above.

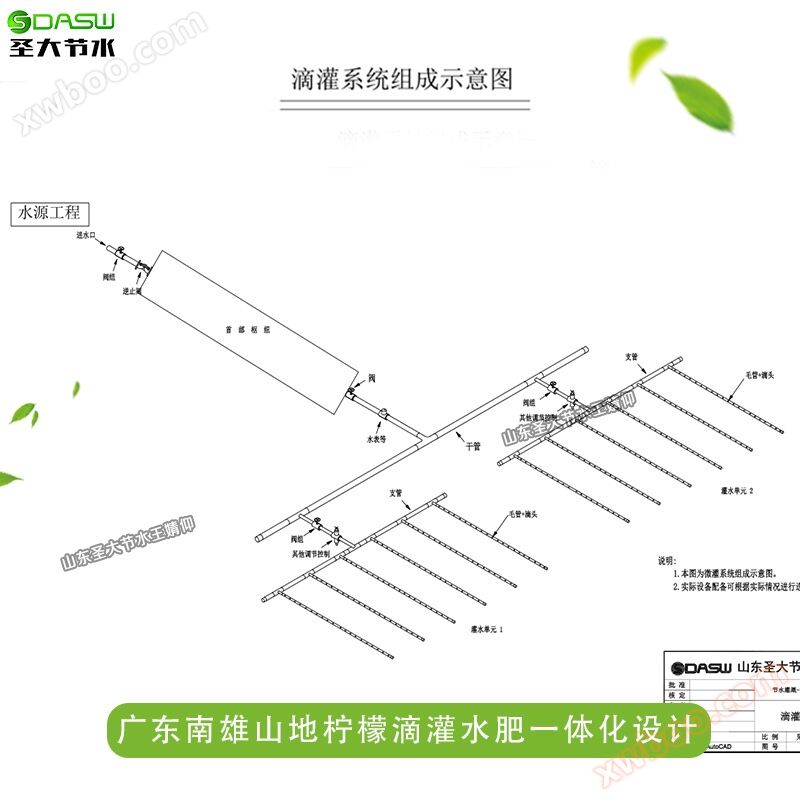

Design pipes: The main and branch pipes of the irrigation system are made of PE100 grade pipes for water supply, and the auxiliary and branch pipes of the irrigation system are made of low-pressure pipes specifically designed for farmland irrigation. The direction and length of the pipeline are determined according to the scale on the drawing, and the pipe diameter is indicated on the drawing. The main pipe material is a de110PE pipeline with a working pressure of 1.0mpa, the auxiliary pipe material is a de90PE pipeline with a working pressure of 1.0mpa, the branch pipe material is a de63PE pipeline with a working pressure of 0.6mpa, the capillary pipe material is a de20PE pipeline with a working pressure of 0.4mpa, and a self-cleaning pressure compensation dropper is installed on the pipe with a flow rate of 8L/h and a spacing of 1.9m/piece, arranged in a row for each pipe.
Guangxi water fertilizer integrated machine manufacturer provides 200 acres of mountain lemon drip irrigation water fertilizer integrationcontrol mode
This irrigation system uses a water fertilizer integrated machine located in the pump room as the water fertilizer supply center, with manual control mode and a rotating irrigation system. Each time a group of areas is opened to implement rotating irrigation of the plot. Scientific irrigation can not only meet the water and fertilizer needs of crops, but also increase crop yield, improve fruit quality, reduce electricity consumption, save 49% water, 32% fertilizer, and 10% land, making it convenient for park management.

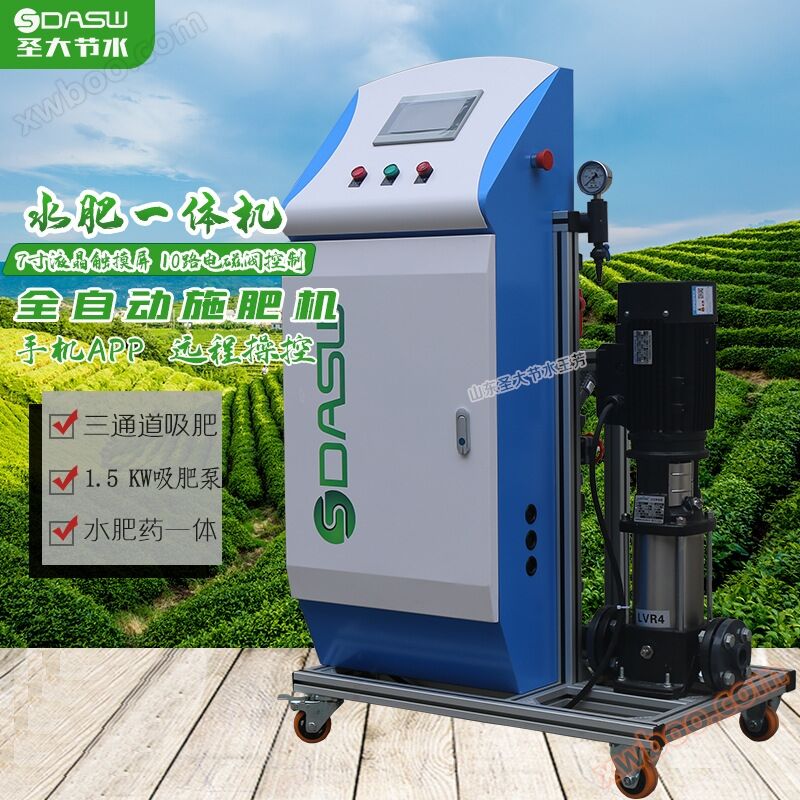

The SD-WFZN-B intelligent fertilizer applicator is equipped with a 7-inch LCD display screen, a program with memory function, a 485 interface, three suction channels, and manually adjustable proportions. It not only saves water, but also can be adjusted reasonably, scientifically, and efficiently. It has the advantages of water and fertilizer saving, intelligent automation, increased yield and income, reduced diseases, labor-saving, easy operation, improved quality, and increased economic benefits.

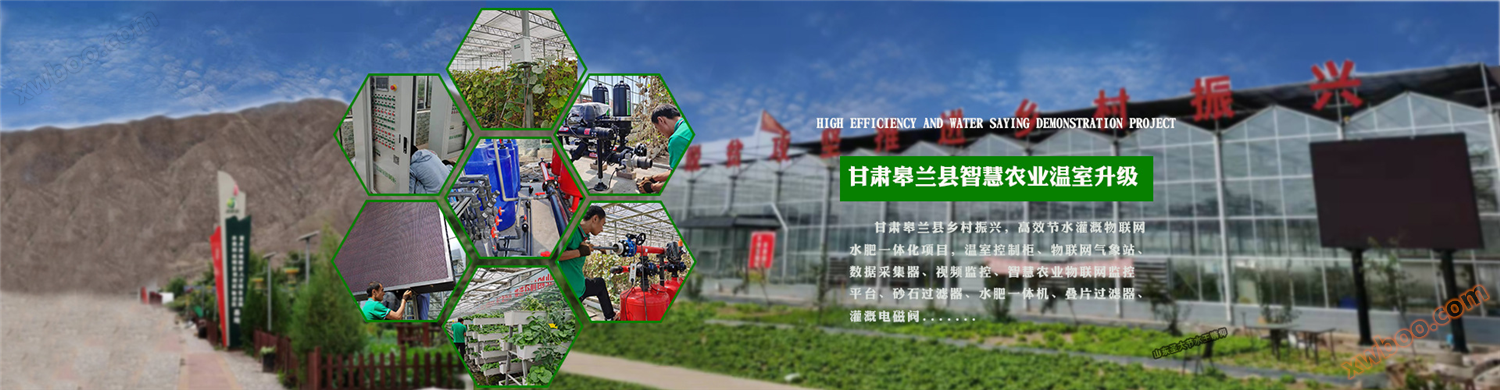

Integrated manufacturer of drip irrigation and water fertilizer for 200 acres of mountainous lemon in Nanxiong, GuangxiGansu Smart Agriculture Greenhouse Upgrade Project

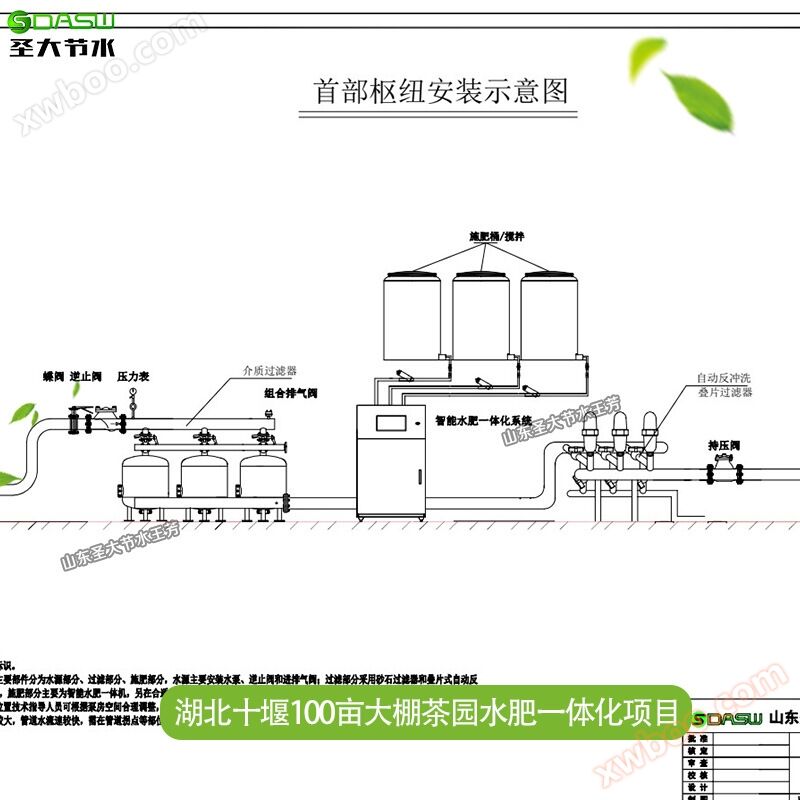

Integrated manufacturer of drip irrigation and water fertilizer for 200 acres of mountainous lemon in Nanxiong, GuangxiInstallation diagram of high standard farmland fertilizer applicator in Inner Mongolia

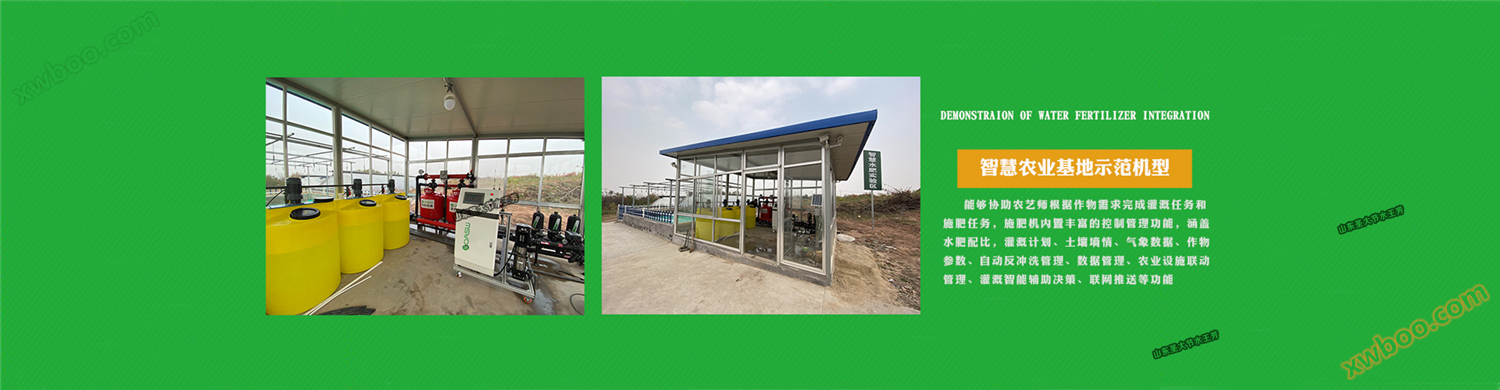

Integrated manufacturer of drip irrigation and water fertilizer for 200 acres of mountainous lemon in Nanxiong, GuangxiInstallation diagram of a demonstration base of a certain scientific research institution

takePour fertilizer A, fertilizer B, and acid solution into the three fertilizer buckets corresponding to the three suction channels. With the main pipeline open, turn on the water injection pipe switch and inject clean water into the machine through the inlet end; The fertilizer in the fertilizer bucket is pumped into the machine through the built-in suction pump, mixed with the clean water in the machine pipeline, and then discharged through the outlet pipe of the fertilizer applicatorApplied to drip irrigation systems, achieving integrated water and fertilizer irrigation with simple operation and cost savings.

With the support of various policies for agricultural development by G family, the development of agriculture in various provinces and cities has been rapid, and many customers are increasingly exposed to integrated water and fertilizer construction projects,

But many customers themselves are inexperienced and have little understanding of water and fertilizer integration, let alone scheme design and construction. Shengda Water Conservation is a water and fertilizer integration system supplier in the industry.

Research and development, production, and sales of water-saving irrigation materials for Shandong Shengda Water saving Collection; Integrating project engineering planning, design, construction, and service, we undertake the design and construction of domestic large-scale drip irrigation water fertilizer integration projects. Our cooperation hotline is:

Shengda Water saving Technology, the manufacturer of Shouguang fertilizer applicator, has a strong technical team and is equipped with a comprehensive service and logistics system to ensure timely use of your goods.

Guangxi water fertilizer integrated machine manufacturer provides a 200 acre mountain lemon drip irrigation water fertilizer integrated machineIntroduction to functional features:

1. The automatic fertilizer applicator is connected in a bypass manner, which does not affect the original main pipeline;

2. (7-inch) LCD high-definition touch screen, Chinese operating system, easy to learn and operate;

3. The system can automatically execute the round irrigation task based on the set irrigation and fertilization program, without the need for manual operation, with fixed timing and quantity, saving labor and achieving accurate fertilization;

4. Can control 10 solenoid valves in the irrigation area;

5. Three fertilizer absorption channels, each equipped with a flow meter, accurately display the instantaneous fertilizer flow rate;

6. The manual rotary flow control valve can adjust the fertilizer flow rate according to actual needs, which is more accurate and convenient;

7. High precision Venturi fertilizer injector for more stable fertilizer absorption;

8. Chemical grade PVC mixed fertilizer pipeline, with strong corrosion resistance, aging resistance, no deformation and long service life;

9. Support function expansion and customization.

Guangxi water fertilizer integrated machine manufacturer provides 200 acres of mountain lemon drip irrigation water fertilizer integrationmachineInstructions for using the operating interface

intelligenceFertilizer applicator SD-WFZN-BThe LCD screen is 7 inches, high-definition touch screen, and can be remotely controlled through networking; This fertilizer applicator supports manual/automatic switching function, and can set the water pump, fertilizer pump on/off time, interval time between each electromagnetic valve, and view irrigation records through the interface, which is convenient, time-savingEffortless.

This interface is used for automatic timing control. Users can set irrigation and fertilization tasks through this interface, and add the corresponding time according to the parameters on the interface. The operation is simple and easy to learn. Through the interface, the opening and closing time of the water pump and fertilizer pump can be set separately, and the irrigation time of all solenoid valves and the selection from Monday to Sunday can also be set.

Guangxi water fertilizer integrated machine manufacturer provides a 200 acre mountain lemon drip irrigation water fertilizer integrated machineEquipment testing report The drip irrigation pipes and fittings produced by Shengda Water saving, as well as various styles of fertilizing machines, have passed G's environmental management system testing, quality management system testing, and obtained various testing certifications and product certificates. Users can use them with confidence.

Guangxi Nanxiong 200 acre mountain lemon drip irrigation water fertilizer integrated manufacturer ShandongShengda Water Conservation Service Process

Guangxi Nanxiong 200 acre mountain lemon drip irrigation water fertilizer integrated manufacturer ShandongShengda Water saving ProductionSupporting products

As a system solution provider, Shengda Water Saving mainly produces micro drip irrigation, sprinkler irrigation pipes (belts) and accessories, filters, water fertilizer integrated fertilizing machines, water-soluble fertilizers, meteorological monitoring equipment, PE, PVC, PPR and other pipe fittings. The products are fully equipped and convenient for customers to choose from in one stop.
