Gearbox lubricating oil filter

NegotiableUpdate on 07/16

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Used to filter harmful components such as water, gas, and impurities in low to medium viscosity lubricating oil, hydraulic oil, and gear oil used in deceleration machinery, improve the lubrication performance of the oil, reduce the corrosion or erosion of oil equipment caused by excessive water or impurity content, and extend the service life of deceleration machinery equipment. Reduce the failure rate of deceleration machinery

Product Details

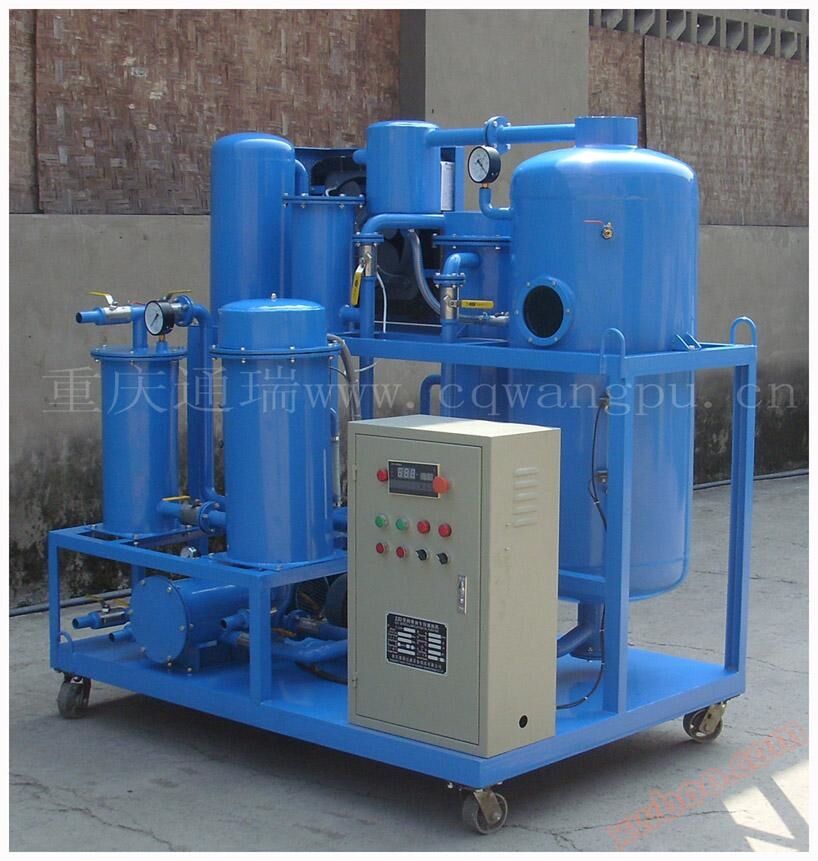

Introduction to Gearbox Lubricating Oil Filter Products

ZJD lubricating oil vacuum filter can quickly remove harmful components such as water, gas, and impurities from lubricating oil, improve the lubrication performance of the oil, reduce the corrosion or erosion of oil equipment due to excessive water or impurity content, and extend the service life of oil equipment.

Widely used in industries such as power, metallurgy, mining, machinery, chemical, transportation, manufacturing, and food, it can also regenerate, filter, and purify high-precision lubricating oils such as unqualified hydraulic oil, hydraulic transmission oil, refrigeration oil, mechanical oil, die-casting machine hydraulic oil, air compressor oil, gear oil, anti-wear hydraulic oil, emulsified oil with particularly high severity, and oil with excessive moisture.

characteristic:

1) Combining coalescence separation with vacuum dehydration, the water separation device adopts the world's coalescence separation technology, which can quickly and efficiently separate a large amount of water and micro water from lubricating oil with high water content.

2) The FH rectangular filtration system has strong ability to filter out impurities, with a large area, deep layer, and high precision, which can effectively remove iron filings, dust, and impurities from oil.

3) Tongrui technology for H, P, and M polymer adsorbent materials. By using high-quality raw components and connecting sealing materials, it meets the high temperature requirements for filtering high viscosity lubricating oil, and expands the types and range of oil that can be purified by the oil filter.

4) The heating adopts the most optimized pipeline design to ensure uniform heating, no dead oil zone, and stable oil temperature.

5) Humanized design, dual infrared liquid level control system, electrical automatic protection control system with phase sequence protection, overload protection, overvoltage protection, and temperature constant automatic control system ensure easy operation, safety, and reliability.

advantage：

Gearbox lubricating oil filterPurification and regeneration treatment will be carried out on various mechanical lubricating oils that have been contaminated after use, removing harmful substances such as water solubility, gases, mechanical impurities, acid and alkali from the oil, and ensuring that the treated oil can improve its cleanliness and meet national standards for oil use in terms of kinematic viscosity, flash point, etc.
The hydraulic lubricating oil processed by this machine has a low emulsification value, minimal water content, and high impurity accuracy. It can be reused repeatedly in high-precision hydraulic lubrication equipment both domestically and internationally.

Selectable modes:

According to different modes of movement, one can choose between regular mobile and vehicle mounted models.

According to different environmental requirements, ordinary type, fully enclosed type, canvas shed, and explosion-proof type can be selected.

According to user needs, PLC intelligent control, touch screen operation, and dynamic display can be optionally selected.

ZJDTechnical parameter table of lubricating oil filter

Indicator Name	unit		ZJD-6	ZJD-10	ZJD-20	ZJD-30	ZJD-50	ZJD-75	ZJD-100	ZJD-150	ZJD-200
internet traffic	L/H		360	600	1200	1800	3000	4500	6000	9000	12000
Working vacuum	Mpa		-0.06 ～ -0.095
Working pressure	Mpa		≤0.4
Constant temperature control range	℃		0 ～ 100
power supply			380V/50Hz (according to user requirements)
work noise	dB（A）		≤75			≤78		≤80		≤82
Electric-heating power	kW		9	15	30	30	45	60	96	120	135
Total electric power	kW		11	17	32	33	48	65	102	135	147
Inlet (outlet) pipe diameter	mm		15	25	25	25	32	42	50	50	60
Equipment weight	Kg		350	450	550	600	750	850	1000	1200	1500
Indicators after oil treatment
Emulsification value		15 min
gas content of oil		≤0.1%
Water content in oil		0.01%-0.03%
cleanliness		6-8 (NAS1638 level)
Filtration		≤5µm

滤油机

If you just want to simply filter mechanical impurities in the lubricating oil of the gearbox, you can choose a YL-B pressure protected lightweight oil filter or a BK pressure plate and frame oil filter. Their main function is to precisely filter mechanical impurities in oil, improve oil cleanliness, but they cannot remove emulsified water and free water from lubricating oil.

If you still have any questions, don't worry, you can consult us or come with us. We are happy to serve you!
