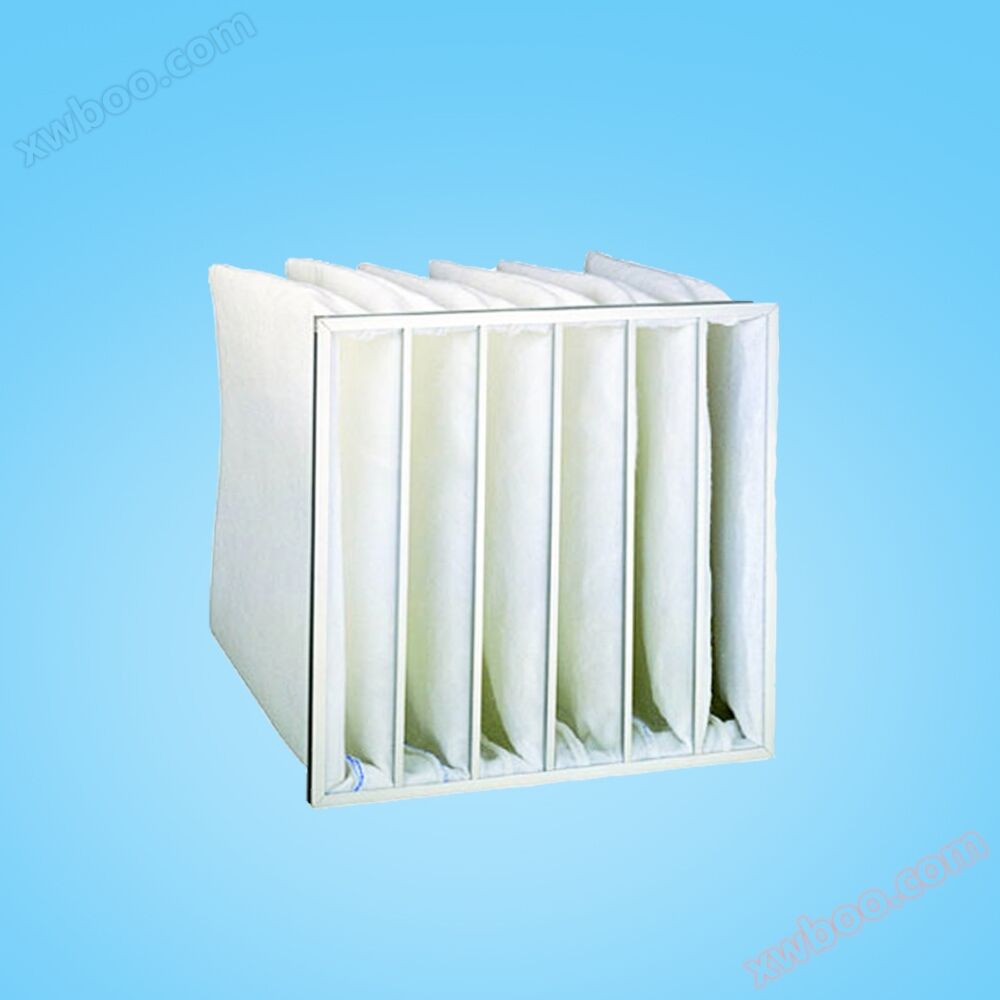

G3 All White Synthetic Fiber Primary Effect Filter Bag

NegotiableUpdate on 10/10

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Product characteristics of G3 all white synthetic fiber primary filter bag: 1. The filter material of G3 all white synthetic fiber primary filter bag is processed from anti breakage organic synthetic fibers, with good filtration performance and high dust holding capacity; 2. The filter material adopts the seam process to ensure the reliability of operation; 3. Each

Product Details

Product Introduction/ Product introduction

G3 All White Synthetic Fiber Primary Effect Filter Bag Product Features:

1. G3 all white synthetic fiber primary filter bag filter material is processed from anti breakage organic synthetic fibers, with good filtration performance and high dust holding capacity;

2. The filter material adopts the seam process to ensure the reliability of operation;

3. Each group of bags has a positioning air duct to ensure good filtering effect;

4. Silicon free design filter, especially suitable for spray painting workshops;

5. Can be cleaned repeatedly, has strong humidity resistance, and can reach; At room temperature of 80 ℃;

6. Complies with the European standard DIN53438-F1 for fire classification and the American UL900-CLASS2

G3 All White Synthetic Fiber Primary Effect Filter Bag Usage:

Air conditioning and ventilation system filtration; Pre filtration of coarse dust filtration system; Pre filtration of medium efficiency filter; Fine dust, pre filtered by high-efficiency filter

G3 All White Synthetic Fiber Primary Effect Filter Bag Technical Parameters:

Level Filter Class	Size (mm) Width x Height x Depth	Number of Pockets	Filter area Filtet	Rated Airflow (m3/h)	Initial Pressure Drop (Pa)
G3	287x592x600	3	2.3	1700	15
	490x592x600	5	3.8	2800	15
	592x592x600	6	4.5	3400	15
