TAOMSUN 752G/722G/721G Series Spectrophotometer | UV-Vis & Visible | Single Beam | Lab Analysis
NegotiableUpdate on 08/26
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
The 752N UV visible spectrophotometer includes a holographic scintillation grating monochromator, with high wavelength accuracy and low stray light. It is equipped with a liquid crystal screen and a microcomputer system, with accurate T-A conversion and automatic adjustment of 0% T/100% T and concentration direct reading. Standard imported tungsten halogen lamp, deuterium lamp, and 1cm colorimetric dish holder, power supply AC220V 220V, power 120W. Wavelength 200~1000nm, wide photometric range, good accuracy and stability. Optional specialized software and customized colorimetric dish holder, suitable for various precise photometric analysis scenarios.
Product Details
TAOMSUN Laboratory Analytical Instruments
🤝 Overseas Technical Partner:METICULAB™

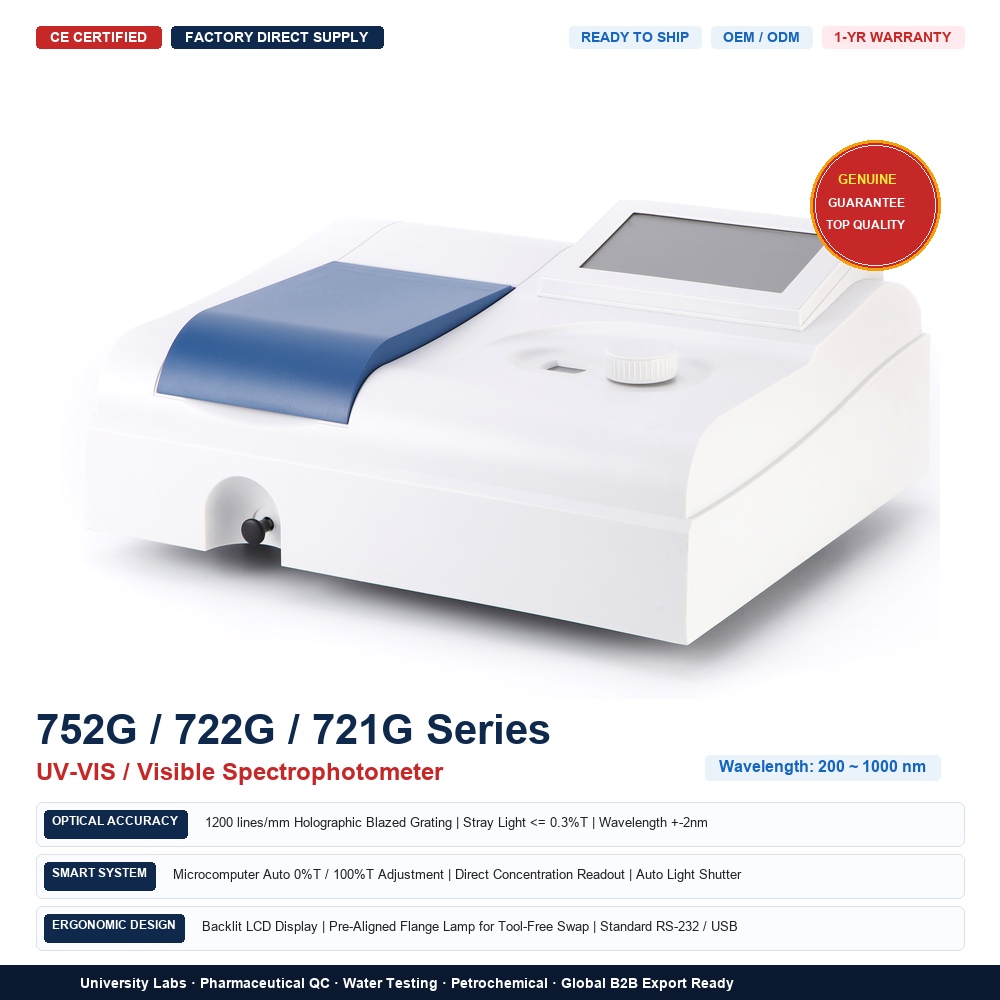

TAOMSUN 752G / 722G / 721G Series Spectrophotometer – UV-Vis & Visible Spectral Analysis for Routine & Industrial Testing
Brand:TAOMSUN ｜Overseas Technical Support:METICULAB (Korea) ｜ISO 9001· Precision Optical Manufacturing
The752G / 722G / 721G Series Spectrophotometeris a reliable single-beam analytical instrument designed for routine laboratory quantitative analysis, industrial inspection, and multi-scenario testing. Three models are available to match different wavelength requirements:752G (UV-Vis, 200–1000nm),722G (Visible, 325–1000nm), and721G (Visible, 340–1000nm). All models adopt aholographic blazed grating monochromatorand a microcomputer measurement system, delivering stable wavelength accuracy, low stray light, and direct concentration reading. With a backlit LCD display, automatic 0%T / 100%T adjustment, and automatic light door technology, the series combines precise measurement with simple, efficient operation for daily lab workflows.
🔍 Core Features:Holographic blazed grating monochromator + imported photocell detector ensuring wavelength accuracy and reading precision; automatic light door technology protects the photoelectric sensor without requiring a black body; halogen tungsten lamp and long-life deuterium lamp (752G) ensure stable light source across UV-Vis range. Supports concentration direct reading, 30 concentration curve storage, and flexible cuvette configurations designed for research, industrial inspection, and production quality control.
📋 Technical Specifications
| Product Name | 752G / 722G / 721G Series Spectrophotometer |
| Brand / OEM | TAOMSUN(Overseas Partner: METICULAB) |
| Model Options |
752GUV-Vis, 200–1000nm 722GVisible, 325–1000nm 721GVisible, 340–1000nm |
| Optical System | Single beam, holographic blazed grating monochromator |
| Wavelength Range | 752G:200–1000nm 722G:325–1000nm 721G:340–1000nm |
| Spectral Bandwidth | 752G: 4nm ｜ 722G / 721G: 5nm |
| Wavelength Accuracy / Repeatability | ±2nm / ≤1nm |
| Photometric Range | 0–100.0%T ｜ 0–1.999A ｜ 0–1999C |
| Photometric Accuracy | ±0.5%T ｜ ±0.004Abs (0–0.5A) ｜ ±0.008Abs (0.5–1A) |
| Stray Light | 752G: ≤0.3%T ｜ 722G / 721G: ≤0.5%T |
| Light Source | 752G: deuterium lamp + halogen tungsten lamp ｜ 722G / 721G: halogen tungsten lamp |
| Detector | Imported photocell (silicon photodiode) |
| Display | Backlit LCD, clear readout |
| Measurement System | Microcomputer measurement system, automatic 0%T / 100%T adjustment |
| Concentration Measurement | Direct concentration factor setting and direct concentration reading |
| Light Door Technology | Automatic light door technology (no black body required, protects photoelectric sensor) |

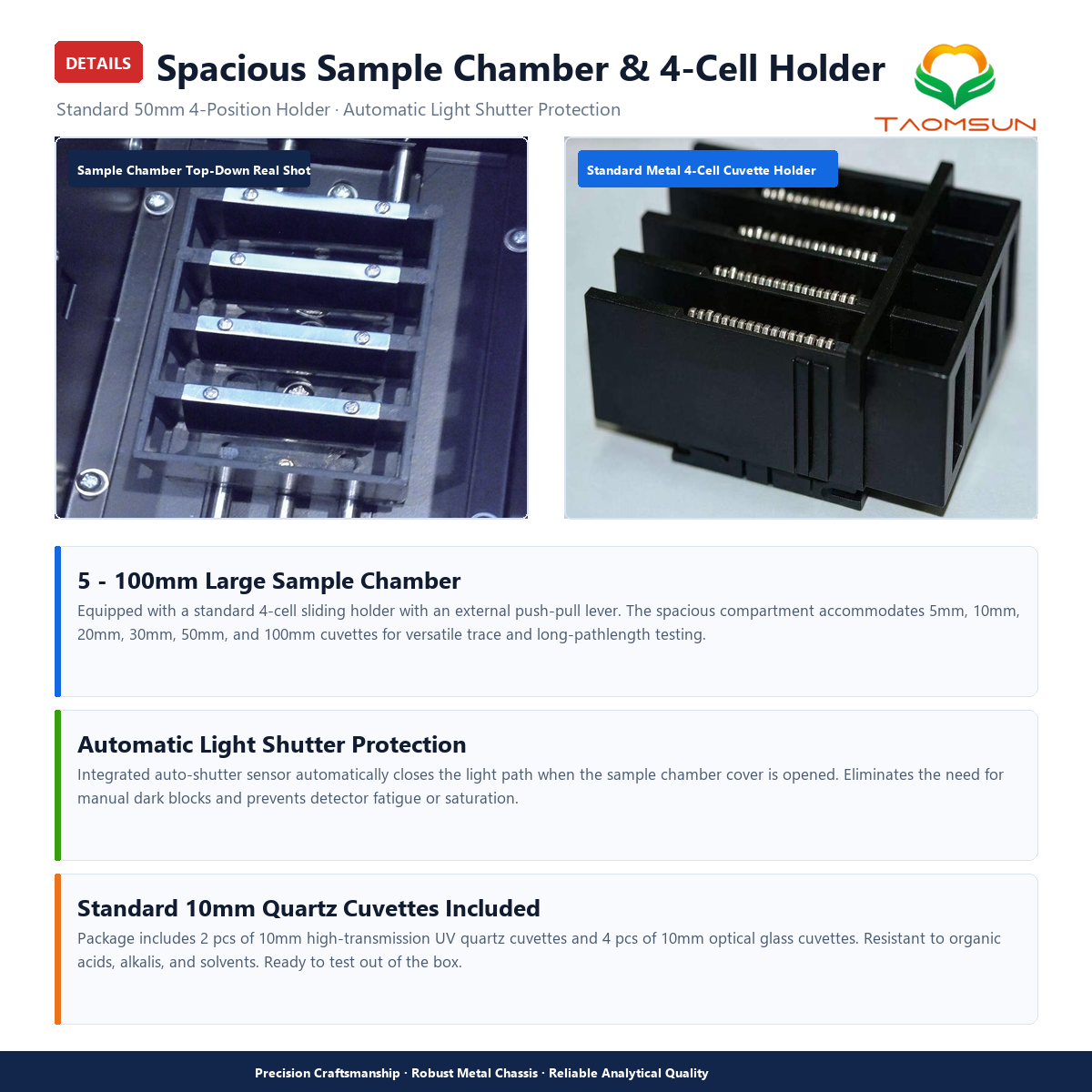

| Sample Compartment | Wide compartment, accommodates 5–100mm cuvettes |
| Standard Accessory | 1cm glass cuvette × 4, 5cm cuvette holder, power cord, fuse, manual |

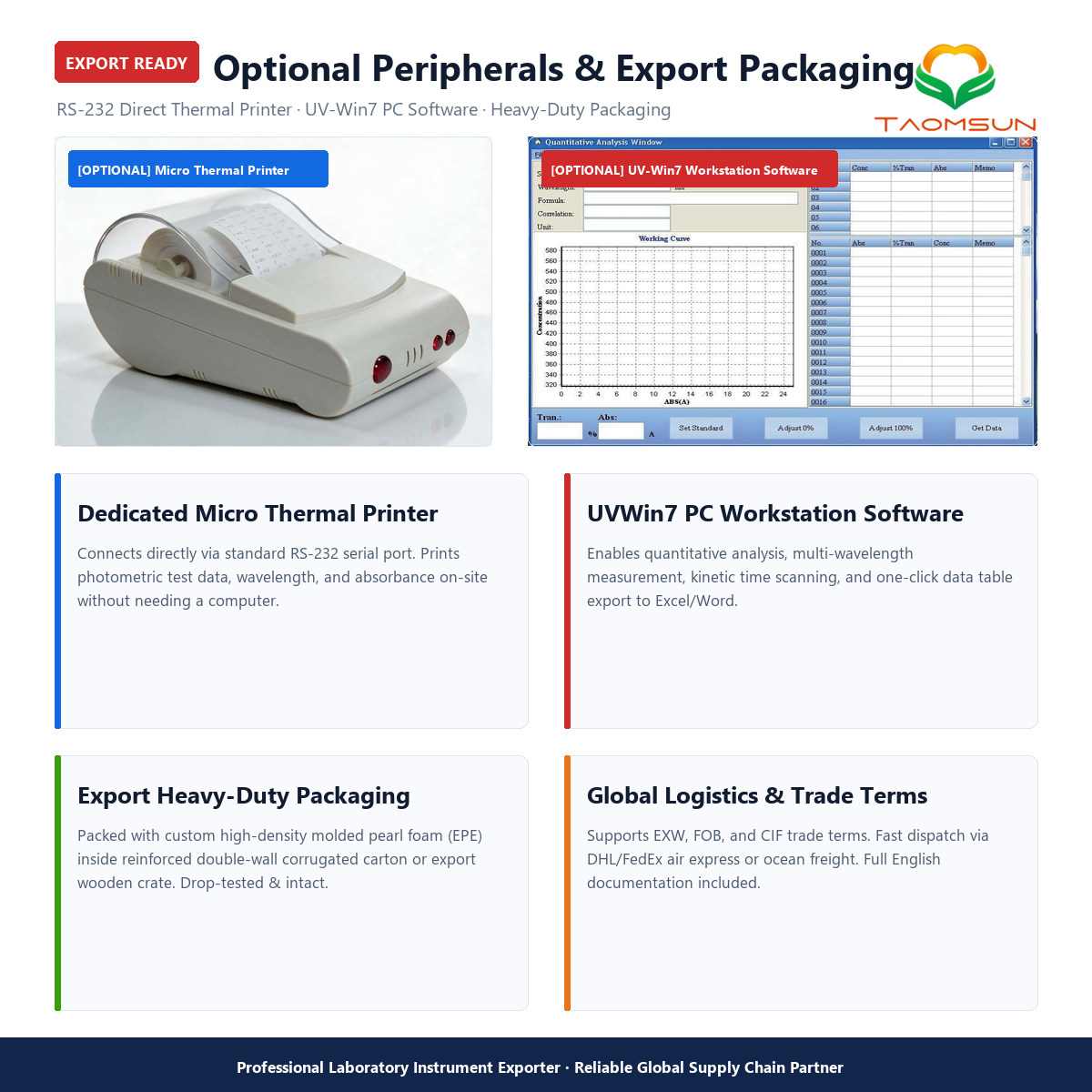

| Optional Accessories | Thermal printer / spectral analysis software / other cuvette holder specifications / quartz cuvettes |
| Power | 752G: 130W ｜ 722G / 721G: 50W |
| Gross Weight | 752G: 16kg ｜ 722G / 721G: 14kg |
| Quality System | ISO 9001· Precision Optical Manufacturing |
⭐ Core Advantages
✅Three models are optional– 752G UV-Vis / 722G & 721G Visible, matching different wavelength needs
✅Holographic blazed grating monochromator– High wavelength accuracy, excellent monochromaticity, low stray light
✅Wide wavelength coverage– 200–1000nm (752G) for UV to visible spectral analysis
✅Backlit LCD display– Clear readout, easy operation for daily lab work
✅Microcomputer measurement system– High T-A conversion accuracy, automatic 0%T / 100%T adjustment
✅Direct concentration reading– Factor setting, simplified workflow
✅Automatic light door technology– No black body required, extends photoelectric sensor lifespan
✅Imported light source & detector– Stable performance across UV-Vis range
✅Wide sample compartment– Accommodates 5–100mm cuvettes
✅Flexible configuration– Standard 1cm cuvette holder, optional software and other cuvette specifications
✅Cost-effective– Ideal for routine quantitative analysis and teaching labs
✅Export-ready– Wooden case packaging, English manual, 110V/220V customization available
🎯 Typical Applications
University Teaching Chemical Analysis Food Testing Environmental Monitoring Textile Dyeing Pharmaceutical QC Water Quality Analysis Metallurgy & Chemical Biochemistry Clinical Testing General Quantitative Analysis
❓ Frequently Asked Questions (FAQ)
Q: What is the difference between the 752G, 722G, and 721G?
A: The main difference is wavelength range. 752G is UV-Vis (200–1000nm), 722G is Visible (325–1000nm), and 721G is Visible (340–1000nm). Choose 752G if you need UV measurements; choose 722G or 721G for visible-light-only applications.
Q: What are the wavelength accuracy and repeatability?
A: Wavelength accuracy is ±2nm, and repeatability is ≤1nm across all three models.
Q: What is the photometric range and accuracy?
A: Photometric range is 0–100.0%T / 0–1.999A / 0–1999C, with accuracy of ±0.5%T, ±0.004Abs (0–0.5A), ±0.008Abs (0.5–1A).
Q: Does it support direct concentration reading?
A: Yes. Concentration factor can be set directly, and readings are displayed without additional calculation.
Q: What is the function of the automatic light door technology?
A: The automatic light door closes the optical path when not measuring, protecting the photoelectric sensor without requiring a black body, extending component lifespan and reducing maintenance costs.
Q: Can it accommodate other cuvette specifications?
A: Yes. The sample compartment accommodates 5–100mm cuvettes. The standard 1cm cuvette holder can be replaced with optional specifications.
Q: Is it suitable for export?
A: Yes. Export wooden case packaging, English manual, and 110V/220V customization are available. EXW / FOB / CIF terms are supported.
Q: What is the warranty?
A: One-year whole-machine warranty. Light sources and other consumable parts can be consulted for replacement.
🏭 About TAOMSUN
TAOMSUNis a laboratory analytical instrument supplier integrating R&D, production, and sales. Our production processes are certified under the ISO 9001 quality management system, with product lines covering spectrophotometers, spectral analysis instruments, and supporting consumables. Core optical systems are manufactured and assembled with precision processes to ensure wavelength accuracy and data reliability for every instrument. Products are widely used in chemical, pharmaceutical, environmental, food, and university research fields.🌏 Overseas technical support provided by METICULAB, Korea.
