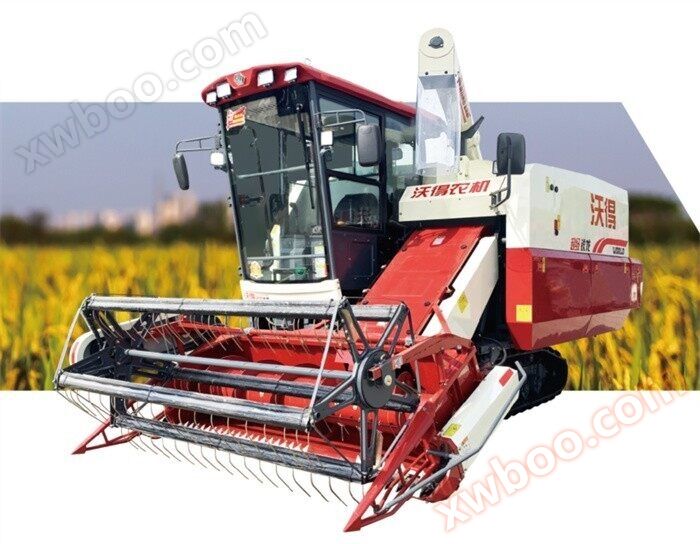

Wode Super Ryzen 4LZ-10.0CR (G4) combine harvester

NegotiableUpdate on 07/18

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Wode Super Ryzen 4LZ-10.0CR Combine Harvester Product Features 01, Anti sinking Super 90x60 Section x500/Optional: 90x60 Section x550/90x63 Section x600 High tooth Track, Track Gauge up to 1.5m, Stable Center of Gravity

Product Details

沃得超级锐龙4LZ-10.0CR联合收割机

Wode Super Ryzen 4LZ-10.0CR Combine Harvester Product Features

01. Super anti trap capability
90x60 section x500/optional: 90x60 section x550/90x63 section x600 high toothed track, with a track gauge of 1.5m and a stable center of gravity.
02. Extremely high efficiency
170 horsepower National IV high-pressure common rail engine, 2.56m/2.8m (optional) ultra large cutting width, efficient operation.
03. Ultra clean threshing
2.52m long, 0.7m diameter ultra large drum, 2.06m long, 0.98m wide ultra large screen selection, side inclined drum, increased cleaning stroke.
Cleaning method: Residual material return screen surface (optional: Residual material return drum).

Technical parameters of Wode 4LZ-10.0CR combine harvester

model		4LZ-10.0CR
structural style		Crawler self-propelled full feed type
Overall dimensions (length, width, height)	(mm)	6260×3000×2970
Overall quality	(kg)	4760
Engine power	(kW)	125
Rated engine speed	(r/min)	2400
Fuel tank capacity	(L)	260
Type of transmission mechanism		60 hydraulic continuously variable transmission (HST)+128 mechanical transmission
Track gauge	(mm)	1500
Track specifications (pitch x pitch x width)	(m)	90 × 60 sections × 500 (optional: 90 × 60/63 sections × 550/600)
Minimum ground clearance	(mm)	300
swath	(mm)	2560/2800 (optional)
feed rate	(kg/s)	10.0
Outer diameter of threshing cylinder x length	(mm)	Φ700×2520
Unloading method		360 ° extended rotating unloading (optional one click return)
Grain storage capacity	(m³)	2.2
Hourly productivity of homework	(mu/hour)	3.3-18.75
