Wode Agricultural Machinery Co., Ltd

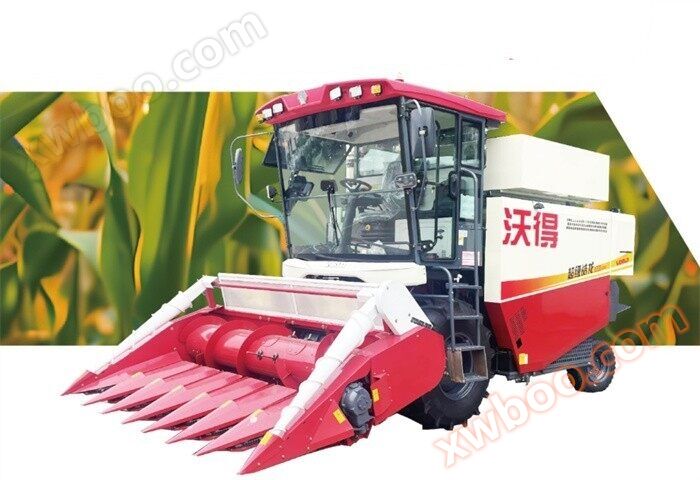

Wode Super Haolong 4YLZ-7Z (Narrow Row Spacing) Corn Seed Harvester
NegotiableUpdate on 07/18
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
Wode Super Haolong 4YLZ-7Z (Narrow Row Spacing) Corn Kernel Harvester Product Features: 1. Adopting Wode's advanced longitudinal flow threshing structure, the drum length is 2.9 meters, and the super long drum can easily handle high-yield crops during harvesting
Product Details
Wode Super Haolong 4YLZ-7Z (Narrow Row Spacing) Corn Kernel Harvester Product Features
1. Adopting Wode's advanced longitudinal flow threshing structure, the drum length is 2.9 meters, and the ultra long drum can easily handle high-yield crop harvesting.
2. Paired with a 65cc continuously variable transmission (HST), it saves effort and improves work efficiency without the need for clutch shifting.
3. Adopting Wode's advanced fish scale screening structure, the area is increased to 3.5m, ensuring cleaner and less loss of grain returned to the warehouse.
4. The threshing drum has three adjustable levels (750, 535, 415), making it versatile and capable of harvesting crops such as wheat and corn, increasing user revenue.
5. The third-generation luxury air-conditioned cab comes standard with suspended seats and a one lever armrest box, providing high driving comfort.
Technical parameters of Wode 4YLZ-7Z corn harvester
| model | 4YLZ-7Z | |
| structural style | Wheeled and grain direct harvesting | |
| Overall dimensions (length, width, height) (mm) | 6510×3150×3260 | |
| Whole machine weight (kg) | 7000 | |
| Engine power (kW) | 147 | |
| Rated engine speed (r/min) | 2300 | |
| Number of working lines (lines) | 7 | |
| Line spacing (mm) | 400 | |
| Working width (mm) | 3040 | |
| Minimum ground clearance (mm) | 315 | |
| Hourly productivity of homework (hm)2/h) | 0.19-1.2 | |
| Threshing drum size (outer diameter x length) (mm) | φ700×2900 | |
| Fan type | Centrifugal snail shell type | |
| Fan diameter (mm) | φ450 | |
| Cleaning and screening type | air and screen | |
| Wheelbase (mm) | 3100 | |
| Track width (mm) | Guide wheel: 1950 Drive wheel: 2000 | |
| Tire specifications | Guide wheel: 10.5/75R15.3 Drive wheel: 15-24 | |
The technical parameters are for reference only, and everything is subject to the actual product. Any changes will not be notified separately.
