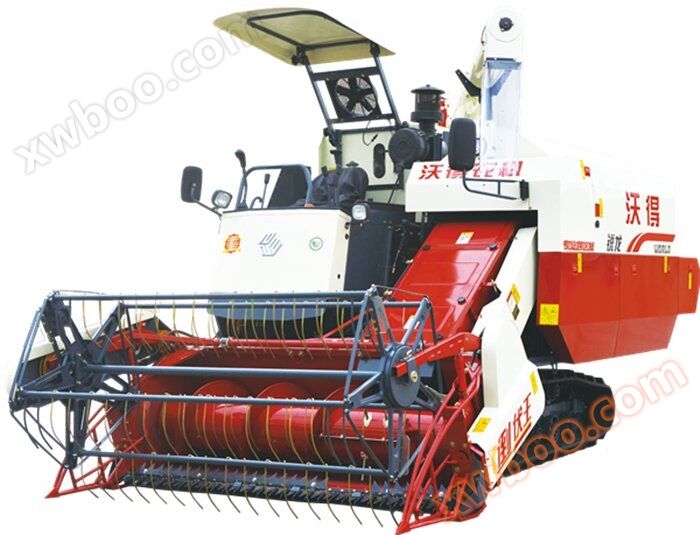

Wode Ruilong Cross Region Edition 4LZ-6.0MD (Q) Tracked Self Propelled Full Feed Combine Harvester

Wode Ruilong Cross Region Edition 4LZ-6.0MD (Q) Crawler Self Propelled Full Feed Combine Harvester Product Introduction

Smooth feeding

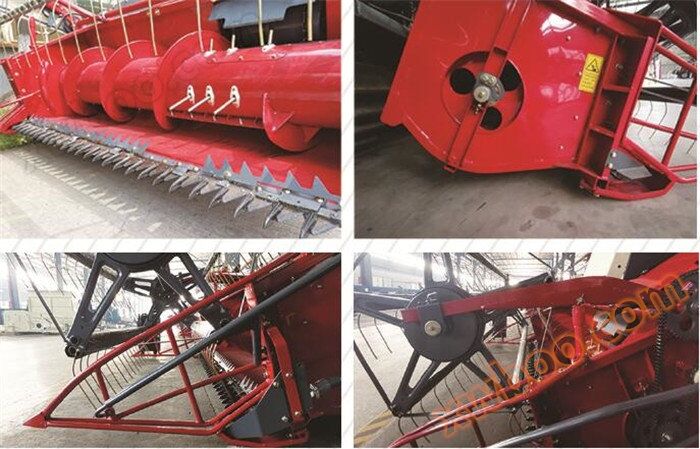

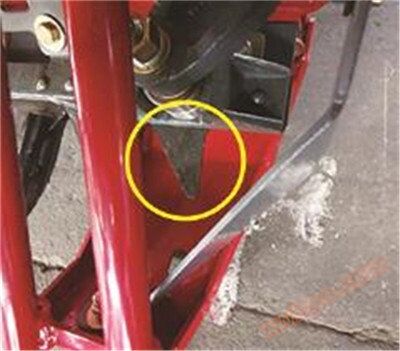

1. Increase the cutting frequency and add half a blade on the left side; Increase the speed of the agitator on the cutting table, optimize the cutting table bottom plate and feeding angle, and ensure smooth feeding during rapid harvesting;

2. The divider is lengthened, the upper angle is reduced, the angle of the reel support arm is adjusted, the range of descent of the reel teeth is extended, and the harvesting effect of lodging crops is improved.

Strong power

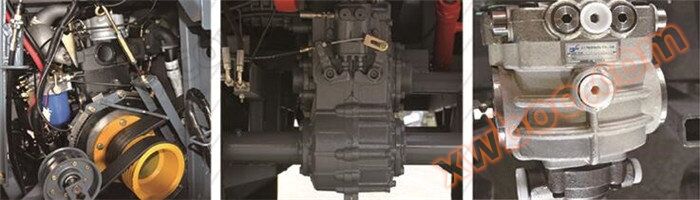

1. Equipped with a Changchai 105 horsepower V16 engine, a four valve structure, powerful and fuel-efficient.
2. Increase the 45 displacement continuously variable transmission, adjust the square shaft oil seal to a pressure resistant oil seal, optimize the overflow valve structure, and achieve more stable performance.
3. Optional Wode self-made 85 gearbox, with reinforced steering fork bearings for a 1.5-fold increase in strength and longer service life.

Super passability

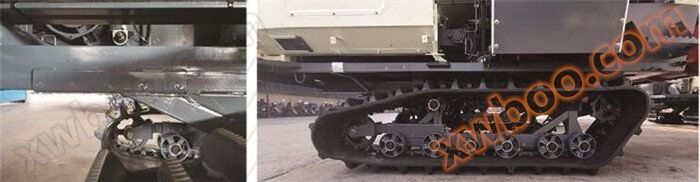

1. Equipped with 53 500 wide tracks, the center of gravity layout is more reasonable, the walking is more stable, and the passability is stronger.
2. The right longitudinal beam of the chassis is thickened by 33%, and a buckle plate is added at the connection to enhance its strength.
3. Increase the number of steel wire loops on the track to extend its service life.

Efficient selection

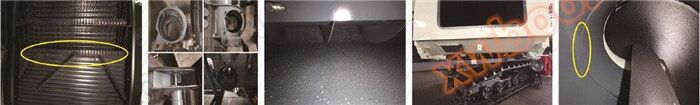

201cm threshing drum, vibration screen structure adjustment, optimization of each grain outlet, agitator gap, and grain bin bottom plate to reduce wear during transportation, minimize crushing losses, and achieve cleaner threshing.

Humanized design, cross regional exclusive customization
1. Add fans to the sunshade for more comfortable operation;
2. Increase the fuel tank by 200 liters to meet the daily workload;
3. Synchronized lifting and turning of the cutting platform, providing an ultra fast driving experience;
4. Equipped with original factory vacuum cleaner to reduce the harm of the working environment;
5. Add self rescue devices for easier and faster maintenance.

Longer service life

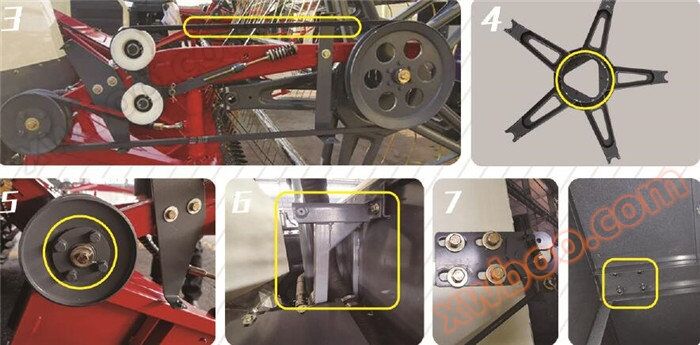

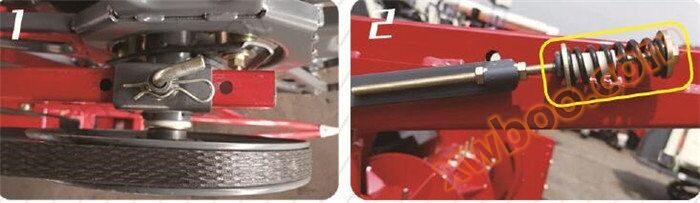

1. Thicken the position adjustment plate of the reel by 33% to enhance its strength;
2. The tension spring of the reel belt has been changed from a tension spring to a compression spring to prevent elongation and deformation, thereby extending its service life;
3. The reel belt has been changed from type B to type C to prevent slipping and improve strength;
4. Thicken the amplitude plate of the reel by 20%, add reinforcing ribs, and enhance overall strength;
5. The speed control belt reel of the reel is thickened by 33%, and the middle pad is changed from square to circular to increase the contact area and improve strength;
6. The square tube wall of the front support of the grain silo is thickened by 33% to enhance its strength;
7. Add inner lining panels at the connection between the grain silo and the front support to enhance strength.

Technical parameters of Wode 4LZ-6.0MD (Q) combine harvester
