WTQ1050C Dynamic Torque Sensor

NegotiableUpdate on 05/11

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

WTQ1050C Dynamic Micro Torque Sensor ◆ Characteristics and Applications · Resistance Strain Sensing is an integrated product composed of sensitive components and integrated circuits, with high accuracy, stable and reliable performance

Product Details

WTQ1050CDynamic micro torque sensor

◆ Features and Applications

·resistance strainIntegrated production of sensitive components and integrated circuits

articleHigh precision, stable and reliable performance.

·Without wear parts such as collector rings, it can operate at high speed for a long time and output forward and reverse torque signals,

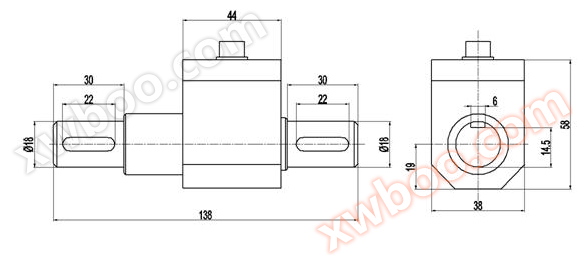

·Both ends are connected by keys,

• The maximum speed does not exceed4000change/minute.

Technical Parameter

measuring range0～0.1/0.2/0.5/1/2/3/5/10 Nm　　　

Output sensitivity: 1.0～2.0 mV/V　　　

Comprehensive accuracy:±0.1; ±0.3; ±0.5%F.S(linear+repeatability+lag)

operation temperature: -10～+60 ℃ 　　　

Temperature compensation range:Room temperature~+60 ℃ 　　　

Temperature Effect On Zero:±0.1 %F.S/10℃ 　　　

Excitation: 12 VDC　　　

insulation resistance: 2000 MΩ/100VDC　　　

Input Resistance: 700±10/350±10 Ω 　　　

output resistance: 700±5/350±5 Ω 　　　

Zero point output0～±1 %F.S　　　

Safety overload rate: 120 %F.S　　　

Factory standard wire length: 3 m

electricity gas link connect square Formula 　　

Input (power) positive terminal 1 Red

Output (signal) positive terminal 2 Yellow

Output (signal) negative terminal 3 White

Input (power) negative terminal 4 Green

If the plug socket number or wire color changes, please refer to the sensor calibration certificate for accuracy.
