Three layer side mixing hot and cold cylinder series

Product Details

Scope of use

1. Can be used as a storage tank, mixing tank, temporary storage tank, ingredient tank, etc.

2. Suitable for fields such as food, dairy products, fruit juice beverages, pharmaceuticals, chemicals, and biotechnology.

structure characteristics

1. Adopting an inner cylinder with outer packaging, and filling the middle with insulation material structure.

2. All materials are sanitary grade stainless steel.

3. The structural design is humanized and highly operable.

4. The transition section of the inner wall of the cylinder adopts a circular arc transition to ensure hygiene without dead corners.

Main technical parameters

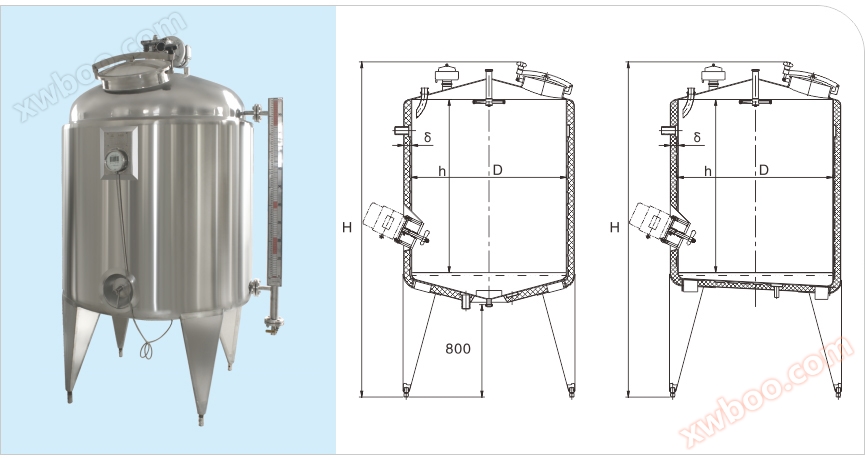

Effective volume	Cylinder size (D × h)	Total height (H)	Inlet and outlet caliber	Insulation layer	Motor power	stirring speed
(L)	(mm×mm)	(mm)	(mm)	(mm)	(kw)	(r/min)
1000	1060×1220	2550	51	60	1.1	960
1500	1160×1500	2850	51	60	1.1	960
2000	1340×1500	2900	51	60	1.1	960
3000	1410×2000	3400	51	60	1.5	960
4000	1620×2000	3450	51	60	1.5	960
5000	1810×2000	3500	51	60	2.2	960
6000	1980×2000	3550	51	60	2.2	960
7000	1930×2440	4000	51	60	3	960
8000	2060×2440	4000	51	60	3	960
9000	2180×2440	4050	51	60	4	960
10000	2300×2440	4050	51	60	4	960
12000	2270×3000	4600	51	60	5.5	960
15000	2530×3000	4700	51	60	5.5	960
20000	2640×3660	5400	51	60	5.5	960

If the customer has special requirements, they can be customized according to their needs. The total height (H) is calculated based on the discharge height of 800mm. If the discharge height is changed, the total height (H) will be adjusted accordingly.
