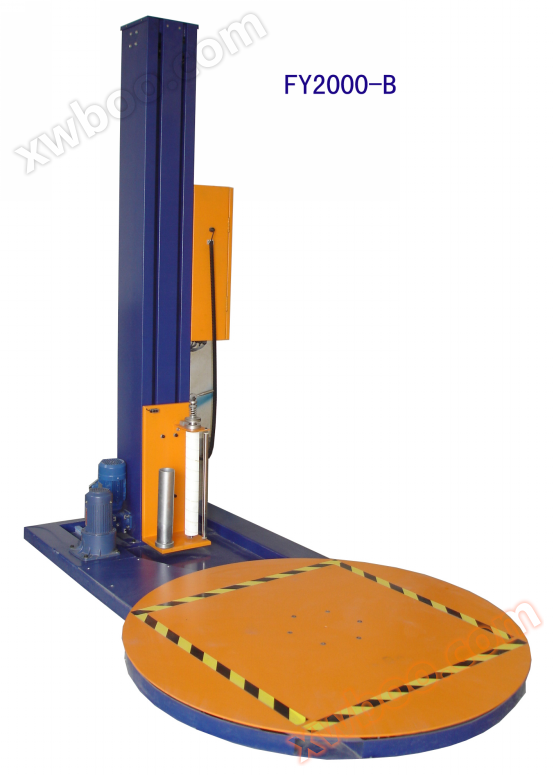

Stretch resistant disc winding machine

NegotiableUpdate on 09/30

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Technical parameters: Rotary table size: diameter 1500mm, height 95mm, external dimensions: 2650mm1500mm2510mm, variable frequency adjustment, maximum stretch ratio 1.0:3.0 (without film loss), packaging efficiency: 20-40 pallets/hour, rotary table speed: 0-12rpm (variable frequency adjustable), column lifting speed: variable frequency adjustable height: photoelectric automatic tracking of packaging height, rotary table starting method: variable frequency slow start, rotary table slow start and stop, to prevent goods from falling instantly

Product Details

Technical parameters:
Turntable size: diameter 1500mm, height 95mm
Dimensions: 2650mm × 1500mm × 2510mm
Variable frequency regulation, maximum stretch ratio 1.0:3.0 (without film loss)
Packaging efficiency: 20-40 pallets/hour
Turntable speed: 0-12rpm (variable frequency adjustable)
Column lifting speed: variable frequency adjustable
Height measurement: photoelectric automatic tracking of packaging height
Rotary table starting method: Variable frequency slow start. The rotary table starts and stops slowly to prevent the goods from falling instantly.
Job Description:
Membrane rack system: Resistance stretch membrane rack, which can achieve a stretch ratio of 300% and is related to the quality of the wrapped film.
Lifting column: Chain structure, adjustable lifting speed, adjustable chassis speed
Control system: PLC programmable control, button type operation panel, simple and clear
Operation function: Automatic operation, automatic completion of machine setting function, automatic sensing of cargo height and photoelectric shielding function, automatic reset of turntable with manual reinforcement winding function. The top/bottom winding circle number, up and down times, reinforcement circle number, and over top time can be set to locally strengthen the required parts, making the packaging more perfect. Reset the turntable to ensure accurate positioning during transportation.

Equipment parameters:

power configuration	AC220V 50Hz 1 KW
Maximum packaging weight	2000KG
Rotary motor power	0.40KW
Maximum packaging height	2100mm
Power of lifting motor	0.37KW
Inner diameter of wrapping film	76mm
Rotating speed of the turntable	0-13 revolutions per minute (variable frequency adjustable)
Membrane rack film release speed	3.2 meters per minute
Rotary disc diameter	1500mm
Membrane rack lifting speed	3.2 meters per minute (adjustable frequency conversion)
Wheel height	95mm
Film release control method	Resistance to stretching
Overall dimensions	L2650mm W1500mm H2510mm
Total weight	700KG

Configuration Description:

PLC	LG Korea
Text display screen	Touchwin
frequency converter	Taiwan Three Chess
Rotary motor	Taiwan Dongli
lifting motor	Taiwan Dongli
Membrane frame guide roller, chassis support roller	Japanese MC Nylon
Emergency stop switch	Schneider, France
Start button	Schneider, France
contactor	Schneider, France
limit switch	Omron Japan
