Wet vapor refers to gases containing moisture, which is one of the issues that need to be addressed in gas transportation systems. During the process of gas transportation, the moisture in the gas can reduce the production efficiency and product quality of the equipment, as well as cause equipment damage. Although the drain valve in the pipeline can remove most of the water, it alone cannot treat the free water suspended in the gas. To separate these free water droplets, it is necessary to install them on the pipelineSodaSeparators.

according toSodaSeparated by a separatorThe gas containsDifferent media, also known asGas liquid separator, oil gas separator, etc

Mainly used for fans, pneumatic conveyingvacuum pumpCold drying machineWaiting for moisture、biogas、natural gasWaiting for water and oil removal, etc.

Equipment principle

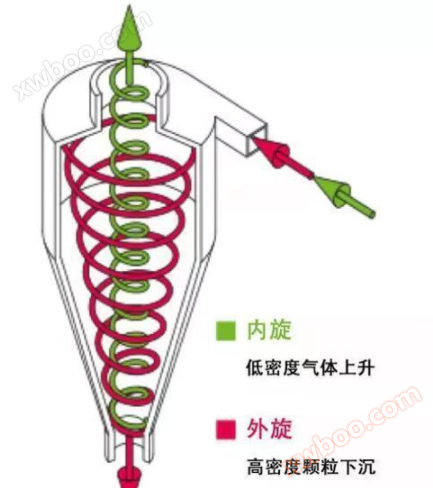

Whirlwind type -A rotary or centrifugal separator, which isThe principle of cyclone dust collectorOn the basis of improvement,Enter the interior of the cylinder in the direction of the imported extension lineInside the separatorairflowHigh speed rotation，And it moves downwards in a downward sloping manner with a swirling flow,; The water carried in the swirling gas, due to the decrease in velocity, hasformativeUnder the action of centrifugal force, it is separated and accumulates on the inner wall of the separator，The separated liquid collects and flows into the bottom under the action of gravityInside the conical cylinder；And under the action of centrifugal force, the airflow continues to swirl downwards into the conical cylinder, where the airflow inside the conical cylinderwarpSwirl contraction gradually reduces the centrifugal force generated by gas, making it easier for water to settle under gravity. The function of the conical cylinder is to gradually counteract centrifugal force, prevent gas from carrying water again under high-speed airflow, and facilitate the smooth flow of liquid from the lower drainage outletDischarge, dry and clean gas is discharged from the outlet of the separator.And the separation efficiency of the steam rotary type is only at the gas velocity98% can only be achieved below 13.8m/s, otherwise the efficiency will be very low. When the gas velocity is 25m/s, the separation efficiency is only about 50%，So the design of gas flow velocity inside the cylinder is crucial.

rotary typeSodaSeparators, suitable for water or particles in fan pipelines of fans and pneumatic conveying systems,Pre stage pipeline of vacuum pump systemThe separation of condensed water flash evaporation water and atomized water or oil in compressed air at room temperature,avoidA large amount of water containing gas entersIn the fan or vacuum pump.

Due to the small gas flow rate and large selection of pipeline diameter, the flow velocity of gas entering the separator is high, which is not conducive to the formation of centrifugal force. Therefore, we have increased the diameter of the central tube inside the cylinder to improve the gas flow rate; And a wire mesh foam catcher or filter element is installed inside the central pipe to intercept and gather fine water mist, further improving separation efficiency.

3、 Equipment parameters

4Equipment schematic diagram

5Equipment size diagram

Installation and usage precautions：

1Check if the installation position is in complianceEquipment labelingEnsure that the medium flows in the direction indicated by the arrow on the shell during installation.

2It must be installed on a horizontal pipeline, and the discharge outlet should be vertically downward to ensure the smooth discharge of the separated liquid.

3. At least a shut-off valve should be installed at the front end of the inlet for later maintenance and cutting off of the pipeline.

4. Legless separatorThere is a hanging ring at the upper end, which can be suspended for installation to reduce negative pressure of pipeline equipment.

5. The separator with legs must be fixed on the ground after connecting the pipeline.

6、The hanging ring nut on the upper end of the cylinder is convenient for opening the upper cover to clean the internal filter or replace the filter element.

7. When cleaning or replacing internal filters or filter elements, the gas should be vented in a pressure free state. If the gas contains irritating odors, it must be protected before opening the cover.

8When starting a new pipeline for trial or long-term shutdown, it is necessary to isolate the equipment and clean the pipeline before using the equipment again；The equipment must be put into use after cleaning the pipeline, and the drain valve should be closed or removed when cleaning the pipeline.

9When repairing pipelines or replacing drain valves, they should be closedFront end valve of equipment.

10The equipment cannot be used under excessive pressure, and it is strictly prohibited to operate beyond the range.

1、System needsWhen the machine is not stopped for 24 hours,Install bypass and inlet/outlet shut-off valves to ensure that maintenance does not affect production
