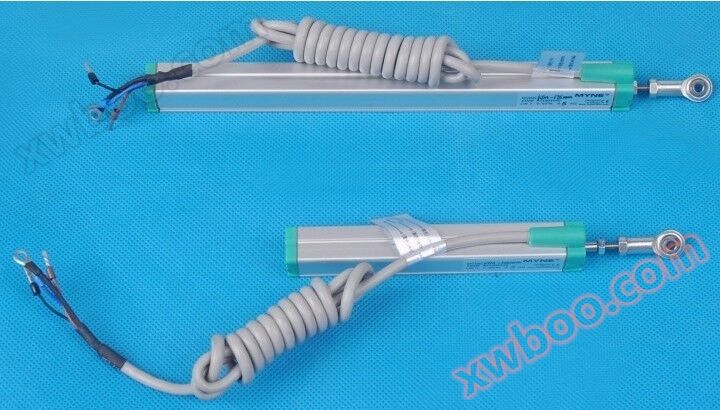

KTM Micro Pull Rod Linear Displacement Sensor Electronic Scale

Product Description:

The universal KTM micro rod type linear displacement sensor series has an effective stroke of 25mm to 300mm, with a 2mm buffer stroke at both ends and an accuracy of 0.3% to 0.05% FS. The surface of the shell is anodized for corrosion resistance; Built in conductive plastic measuring unit, no temperature drift, long lifespan; Equipped with automatic electrical grounding function. The sealing level is IP67, with two options: direct output and five pin plug socket output. It can be used in most general applications, especially in situations with limited installation space; The pull rod ball head has a 0.5mm automatic centering function, allowing the maximum sports speed to reach 5m/s.
