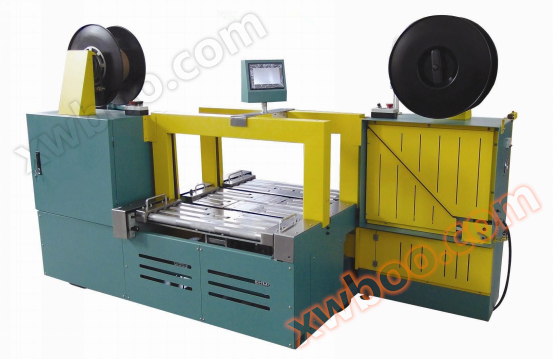

Double bow synchronous automatic packaging machine

NegotiableUpdate on 09/30

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

This device has been optimized and improved to address the shortcomings of conventional products in the market. The specific features are as follows: 1. Packaging speed has been increased by over 260%, and overall packaging efficiency has correspondingly increased by 2-3 times

Product Details

This device has been optimized and improved to address the shortcomings of conventional products in the market, with the following specific features:
1. The packaging speed has increased by over 260%, and the overall packaging efficiency has correspondingly increased by 2-3 times.
2. Standardize and unify the packaging effect of product packaging, thereby greatly improving the overall quality of product packaging.
3. Adopting a human-machine interface control, the operation is simple: with just a gentle click, the packaging method can be automatically switched, greatly improving efficiency.
4. The small number of external switch buttons greatly improves the stability and lifespan of the equipment operation.
5. The desktop adopts an easy to open panel and reset detection, which is convenient for maintenance and more user-friendly with significantly improved safety factor.
6. All mechanical parts are protected by safety testing, achieving 100% safe operation.
Product advantages:
A、 The device mainly consists of three parts: the whole machine core, the electronic control, and the chassis: the whole machine core frame is made of Korean original equipment; The electronic control part adopts imported configuration (including human-machine interface control), the programmable PLC adopts Japanese Mitsubishi, the desktop drum motor adopts Taiwan Chengbang (brake type), and the photoelectric control adopts Nissan Omron. The chassis, including left and right conveyor belts, conveyor belt frame, storage belt device, and complete machine shell, are all customized by Yuanzhan Company according to customer products. The device is entirely operated on a visual screen, with a low failure rate and fast troubleshooting.
B、 The action process is as follows: when the product passes through the packaging machine, there is a photoelectric sensor feedback signal to the packaging machine, and the packaging machine automatically performs the packaging action according to the manual selection mode. The packaging method can be selected with one click (two synchronized, one pass, no selection).
Machine parameters:

external dimensions	L1100W2600H1550
Bow frame size	W650-1650mm*H200-1400mm
Distance between bow frames	380-1000mm
Standard height of countertop	580 ± 50mm (customizable)
Welding method	Heat Stealing
Banding rate	900 boxes/hour (calculated based on two straps/box)
Tightening force	0-70kgs adjustable
power	3.0kw
power supply	3φ380/50Hz
