Chengli Special Purpose Vehicle Co., Ltd

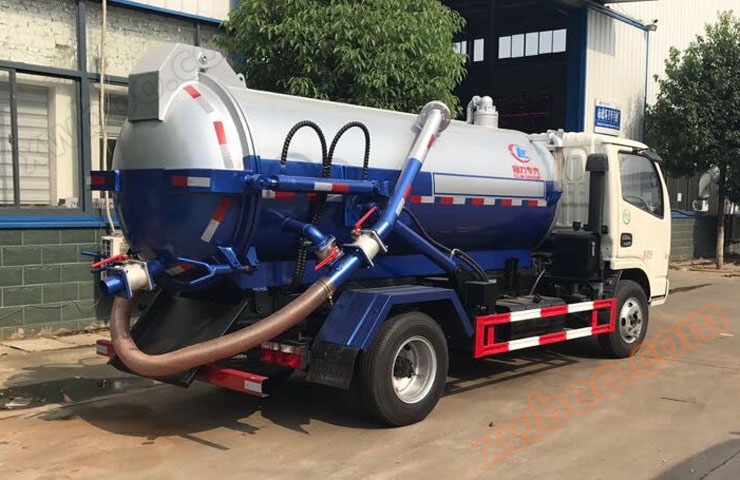

Dongfeng Xiaobawang sewage suction truck
NegotiableUpdate on 02/09
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
Vehicle Description:
Product Details
| Main technical parameters of Chengliwei brand CLW5070GXWD5 Dongfeng Xiaobawang sewage suction truck | |||
| Product Name: | Dongfeng XiaobawangSuction sewage truck | External dimensions: | 5995×2000×2450(mm) |
| Chassis model: | EQ1070SJ3BDF | Cargo compartment size: | ××(mm) |
| Total mass: | 7360(Kg) | Approach/departure angle: | 20/14(°) |
| Rated quality: | 3450,3130(Kg) | Front suspension and rear suspension: | 1040/1497,1040/1250(mm) |
| Curb weight: | 3780,4100(Kg) | Maximum speed: | 99(km/h) |
| engine | Engine Manufacturer | Displacement (ml) | Power (kw) |
| CY4BK551 YC4FA115-50 4B2-115C50 ZD30D13-5N D28D11-5DA 4DW93-84E5 YN27CRE1 YN33CRE1 SD4D25R-70 4DX23-120E5 D25TCIE2 4F20TCIE5 |
Dongfeng Chaoyang Chaochai Power Co., Ltd Guangxi Yuchai Machinery Co., Ltd Anhui Quanchai Power Co., Ltd Dongfeng Light Engine Co., Ltd Dongfeng Light Engine Co., Ltd FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Engine Factory Kunming Yunnei Power Co., Ltd Kunming Yunnei Power Co., Ltd Jiangsu Sida Power Machinery Group Co., Ltd FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Engine Factory Kunming Yunnei Power Co., Ltd Changchai Co., Ltd |
3707 2982 2545 2953 2771 2540 2672 3298 2545 3857 2499 1995 |
75 85 85 96 85 64 70 85 70 90 96 70 |
| Emission standards: | GB17691-2005 National V, GB3847-2005 | ||
| Number of axes: | 2 | Front wheelbase: | 1503,1485,1519(mm) |
| wheelbase: | 3308,2800 | Rear wheelbase: | 1494,1516(mm) |
| Number of tires: | 6 | Tire specifications: | 7.00-16,7.00R16 |
| Fuel type: | diesel oil | Number of spring plates: | 6/6+5 |
| Axle load: | 2945/4415 | Number of passengers in the cab: | 2 |
| Vehicle remarks: | 1. Transport medium: liquid waste, density: 900 kg/m3; Effective volume of tank: 3.65 cubic meters; Dimensions of the tank body (straight section length x diameter) (mm): 3400 x 1200. 2. Optional side and rear pipes, protective material: Q235A carbon steel, connection method: welding connection is used for the left and right side and lower rear protection, and the cross-sectional size of the rear protection (mm) is 100 × 50. Rear protection ground clearance height (mm): 400. 3. The color, text spraying, and local details of the vehicle can vary. 4. ABS manufacturer and model: Xiangyang Dongfeng Longcheng Machinery Co., Ltd./ABS/ASR-24V-4S/4M. | ||
| Multi directional diagram: |
|
||
| For more information and product pictures, please contact our company directly. We will provide you with the best service! | |||
