Dongfeng Tianlong four, four, and eight oil tanker trucks

NegotiableUpdate on 02/09

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Vehicle Description:

Product Details

Main technical parameters of Chengliwei brand CLW5310GYYD4 Dongfeng Tianlong front four rear eight oil tanker truck

Product Name:

Dongfeng Tianlong four, four, and eight oil tanker trucks

External dimensions:

11950×2500×3400,3690(mm)

Chassis model:

DFL1311A10

Cargo compartment size:

××(mm)

Total mass:

31000(Kg)

Approach/departure angle:

28/12,28/11,28/10,28/9(°)

Rated quality:

16670,16735(Kg)

Front suspension and rear suspension:

1460/2465,1460/2385,1460/2215,1460/2135,1460/2515,1460/2265,1500/2200,1500/2400,1500/2125,1500/2290(mm)

Curb weight:

14135(Kg)

Maximum speed:

80(km/h)

engine

Engine Manufacturer

Displacement (ml)

Power (kw)

ISDe270 40
ISLe270 40
ISLe292 40
ISLe315 40
ISC8.3-270E40A
ISC8.3-292E40A
dCi320-40
ISL9.5-315E40A
YC6L280-42
YC6L310-42
ISL9.5-340E40A
DDi75S270-40
DDi75S292-40
ISL9.5-292E40A
DDi75S315-40

Dongfeng Cummins Engine Co., Ltd
Dongfeng Cummins Engine Co., Ltd
Dongfeng Cummins Engine Co., Ltd
Dongfeng Cummins Engine Co., Ltd
Dongfeng Cummins Engine Co., Ltd
Dongfeng Cummins Engine Co., Ltd
Dongfeng Commercial Vehicle Co., Ltd
Dongfeng Cummins Engine Co., Ltd
Guangxi Yuchai Machinery Co., Ltd
Guangxi Yuchai Machinery Co., Ltd
Dongfeng Cummins Engine Co., Ltd
Dongfeng Commercial Vehicle Co., Ltd
Dongfeng Commercial Vehicle Co., Ltd
Dongfeng Cummins Engine Co., Ltd
Dongfeng Commercial Vehicle Co., Ltd

6700
8900
8900
8900
8300
8300
11120
9460
8424
8424
9460
7530
7530
9460
7530

198
199
215
231.5
198
215
236
232
206
228
251
199
215
215
232

Emission standards:

GB3847-2005, GB17691-2005 National IV

Number of axes:

Front wheelbase:

2040/2040,1960/1960(mm)

wheelbase:

1850+4350+1350,1950+4250+1350,1850+4350+1430,1950+4250+1430,1850+4600+1350,1950+4500+1350,1850+4600+1430,1950+4500+1430,1950+4250+1300,1950+4500+1300,2050+4400+1350,2050+4000+1350,1850+4600+1400

Rear wheelbase:

1860/1860(mm)

Number of tires:

Tire specifications:

11.00-20,11.00R20,295/80R22.5

Fuel type:

diesel oil

Number of spring plates:

9/9/10,8/8/10,3/3/4,9/9/-

Axle load:

6500/6500/18000 (two axis group)

Number of passengers in the cab:

3,2

Vehicle remarks:

Transport medium name: gasoline; Medium density: 700 kg/m3, Class number: 3; Effective volume of tank: 25.0 cubic meters; Dimensions of the tank body (long/long/short axis) (mm): 9100/2450/1660; The load capacity of the cab is 16670Kg when the number of passengers allowed is 3, and 16735Kg when the number of passengers allowed is 2; wheelbase (mm): 1850+4600+1430, corresponding rear suspension (mm): 2610; Wheelbase (mm): 1950+4500+13501850+4600+13502050+4400+1350 Corresponding rear suspension (mm): 2690; Wheelbase (mm): 1950+4250+1430-1850+4350+1430 Corresponding rear suspension (mm): 2860; Wheelbase (mm): 1850+4350+13501950+4250+1350, corresponding rear suspension (mm): 2940. Optional flat top cab with chassis. Optional rear climbing ladder. Protective material: Q235A carbon steel, connection method: welding connection is used for the left and right sides and the lower rear protection. The cross-sectional size of the rear protection (mm) is 100 × 50 × 5, and the height of the rear protection above the ground (mm) is 500. The front wheels of the car are equipped with disc brakes and speed limiting devices, with a speed limit of 80km/h. The car is equipped with a driving recorder with satellite positioning function. Installation of radial tires, ABS manufacturer: Dongfeng Electronic Technology Co., Ltd. Brake System Company; Model: 3631010-C2000. Select engine model: ISDe270 40,ISLe270 40,ISLe270 40,ISLe315 40,ISC8.3-270E40A,ISC8.3-292E40A,dCi320-40,ISL9.5-315E40A,YC6L280-42,YC6L310-42,ISL9.5-340E40A,DDi75S270-40,DDi75S292-40,ISL9.5-292E40A The corresponding fuel consumption values (L/100km) are 39.12, 39.44, 39.51, 39.69, 39.59, 42.6, 39.6, 39.4, 41, 42, 40.1, 41.6, 41.6, 41.7.

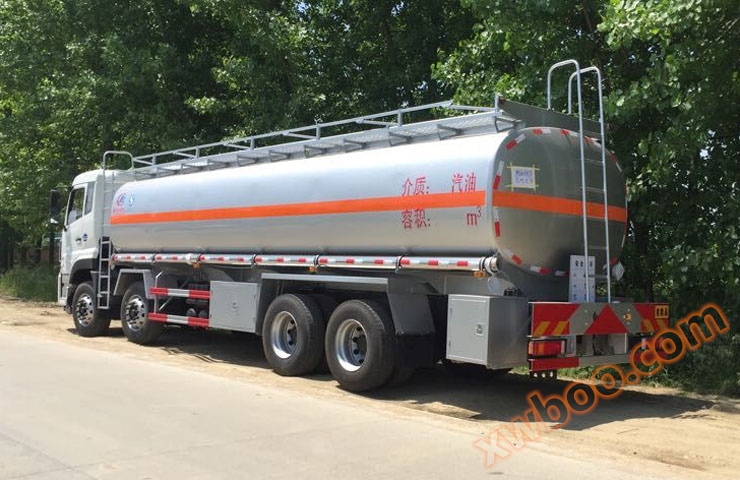

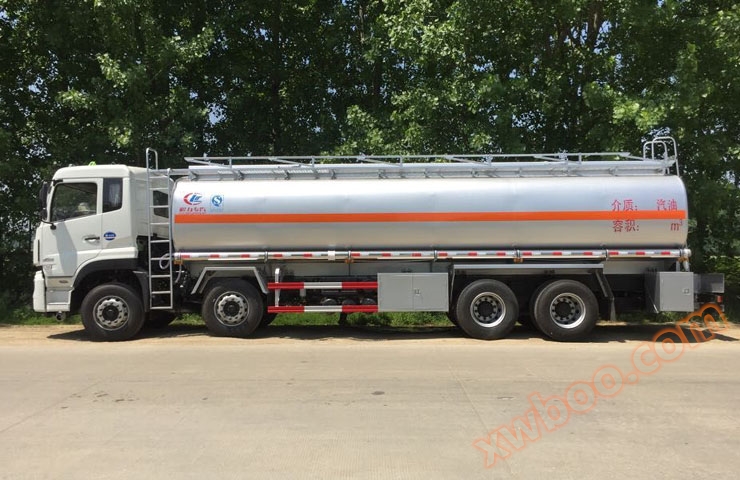

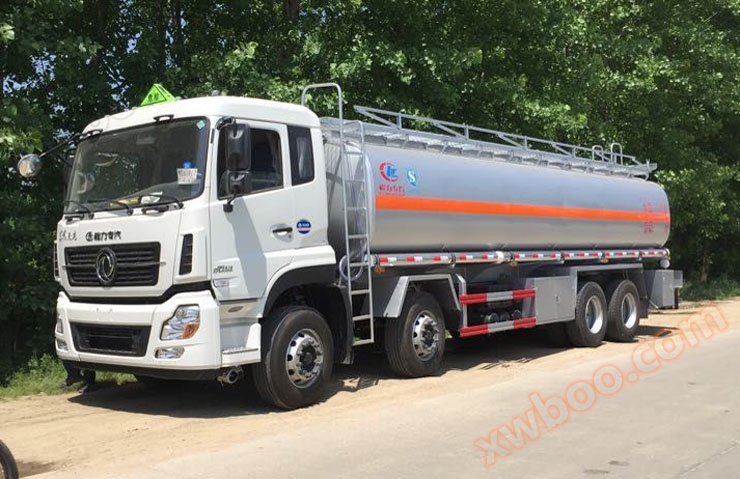

Multi directional diagram:

Fuel Announcement

CLW5310GYYD4 fuel consumption standard parameters

PRODUCT MODEL		CLW5310GYYD4
Execution standards		JT719 "Limits and Measurement Methods for Fuel Consumption of Operating Trucks"
Full load constant speed Fuel Consumption	speed, km/h	30,40,50,60,70,80
	Gear position	--,9,9,9,9,9
	oil consumption, L/100km	--,22.4,24.1,26.7,29.2,33.2
Vehicle model number that meets fuel consumption standards		Batch 30, 2015 No. 743 (H0307988)

For more information and product pictures, please contact our company directly. We will provide you with the best service!
