| Main technical parameters of Chengliwei brand CLW5160TSLD5 Dongfeng Tianjin sweeping car | |||
| Product Name: | Dongfeng Tianjin sweeping truck | External dimensions: | 8350,8050,7850,7550,7150×2500×3060(mm) |
| Chassis model: | DFL1160BX1V | Cargo compartment size: | ××(mm) |
| Total mass: | 15800(Kg) | Approach/departure angle: | 20/12(°) |
| Rated quality: | 4935(Kg) | Front suspension and rear suspension: | 1430/1860,1430/2160,1430/2360(mm) |
| Curb weight: | 10670(Kg) | Maximum speed: | 98(km/h) |
| engine | Engine Manufacturer | Displacement (ml) | Power (kw) |
| ISD210 50 ISD190 50 ISD180 50 EQH180-52 EQH180-53 ISB180 50 ISD270 50 ISB210 50 ISB190 50 |
Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Commercial Vehicle Co., Ltd Dongfeng Commercial Vehicle Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd |
6700 6700 4500 4752 4752 5900 6700 5900 5900 |
155 144 132 132 132 132 198 155 140 |
| Emission standards: | GB3847-2005, GB17691-2005 National V | ||
| Number of axes: | 2 | Front wheelbase: | 1880,1900,1920(mm) |
| wheelbase: | 3800,4200,4500,4700,5000 | Rear wheelbase: | 1800,1860,1820(mm) |
| Number of tires: | 6 | Tire specifications: | 9.00-20,9.00R20,10.00-20,10.00R20,10R22.5,275/80R22.5,275/70R22.5,295/80R22.5 |
| Fuel type: | diesel | Number of spring plates: | 7/9+6,8/10+8 |
| Axle load: | 5800/10000 | Number of passengers in the cab: | 3 |
| Vehicle remarks: | The corresponding relationship between the length of the entire vehicle and the wheelbase is (mm): 8350/50008050/47007850/45007550/42007150/3800. /2. Protective material: Q235A carbon steel, connection method: left and right side protection exemption, rear lower protection and auxiliary beam are connected by bolts, rear protection section size (mm): 50 × 100, rear protection ground clearance height (mm): 450. 3. ABS model: 4460046440; Manufacturer: WABCO Automotive Control Systems (China) Co., Ltd; ABS model 3631010-C2000, manufacturer: Dongke Knorr Bremse Commercial Vehicle Braking System (Shiyan) Co., Ltd. 4. The position of text spraying and the color of the vehicle can be changed. | ||

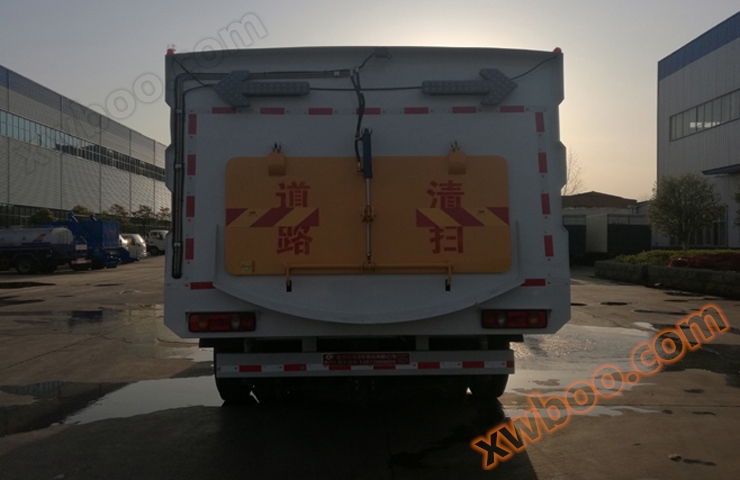

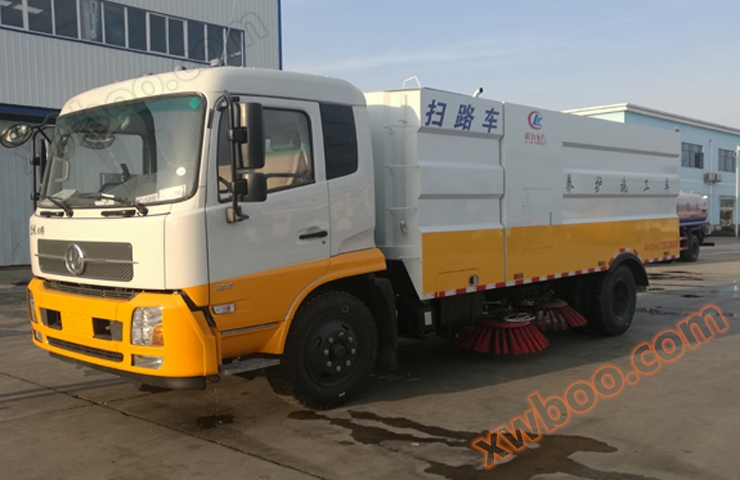

| Multi directional diagram: |
|
||
| For more information and product pictures, please contact our company directly. We will provide you with the best service! | |||
