Dongfeng Furuka Sprinkler Truck

NegotiableUpdate on 02/09

Model

Nature of the Manufacturer: Producers

Product Category

Place of Origin

Online Consult

Overview

Vehicle description: Dongfeng Furuika sprinkler truck is a product of sprinkler trucks, which can hold 4-5 tons of water. Due to the small size of the Dongfeng Furuka sprinkler truck model, it is suitable for use in various places. To inquire about the price of Dongfeng Furuika sprinkler trucks, please contact a professional manufacturer of Dongfeng Furuika sprinkler trucks.

Product Details

Main technical parameters of Dongfeng Furuika sprinkler truck products
Product Name:	Dongfeng Furuka Sprinkler Truck	Dimensions (mm):	5990,×2000,2380
Chassis model:		Cargo compartment size (mm):	××(mm)
Total weight (kg):	7360	Approach/departure angle (°):	(°)
Rated mass (kg):	3855	Front suspension/rear suspension (mm):	1055/1627(mm)
Curb weight (kg):	3375(Kg)	Maximum speed (km/h):	110(km/h)
Emission standards:	National VI

Chassis parameters
Chassis model:		Fuel type:	diesel oil
Number of axes:		Front wheelbase (mm):
Wheelbase (mm):		Rear wheelbase (mm):
Number of passengers in the cab:	2 (people)	Number of spring plates:
Number of tires:		Axle load:	2640/4720
Tire specifications:	7.00R16
Vehicle Description:	1. The car only uses a 3308mm wheelbase, with an effective tank volume of 4.04 cubic meters and a tank size of (mm): 3400 × 1600 × 1100, 3300 × 1600 × 1100. 2. Protective material: Q235B carbon steel, connection method: welding connection is used for the left and right sides and the lower rear protection. The cross-sectional size of the rear protection (mm) is 120 × 50, and the height of the rear protection above the ground (mm) is 430. 3. ABS model/manufacturer: ABS/ASR-12V-4S/4M/Xiangyang Dongfeng Longcheng Machinery Co., Ltd. 4. Special device: tank body, mainly used for road watering and landscaping. 5. Optional cab with chassis. Optional location for installing front flushing sprinkler system. Optional installation position for tail lights.

Engine parameters
Engine model	Engine Manufacturer	Displacement (ml)	Power (kw)
D20TCIF1 YCY24140-60 CA4DB1-11E6 ZD30D16-6N CY4BK461 CY4BK161 Q23-115E60 H20-120E60 CA4DB1-13E6	Kunming Yunnei Power Co., Ltd Guangxi Yuchai Machinery Co., Ltd China FAW Group Co., Ltd Dongfeng Light Engine Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Anhui Quanchai Power Co., Ltd Anhui Quanchai Power Co., Ltd China FAW Group Co., Ltd	1999 2360 2207 2953 3707 3856 2300 2000 2207	93/126 103/140 81/110 120/163 95/129 105/142 85/115 90/122 95/129

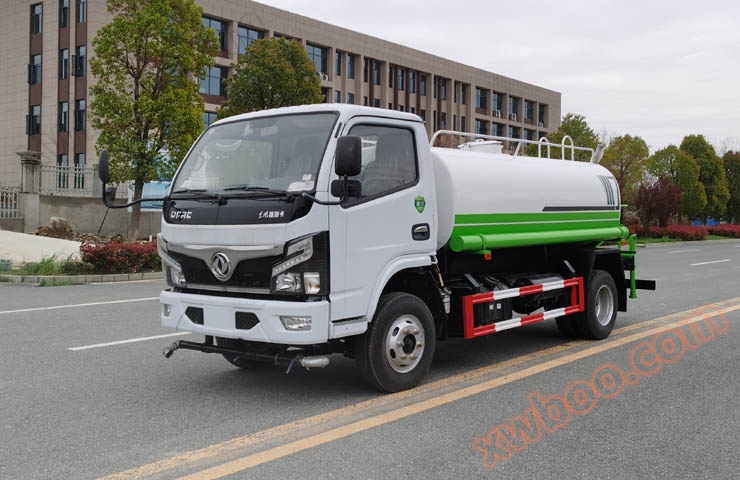

Multi directional display image:

※ For detailed information and product pictures, please contact our company directly. The above product introduction is for reference only. Please refer to the contract content when ordering a car.
