Dongfeng Furuika suction truck
NegotiableUpdate on 02/09
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview

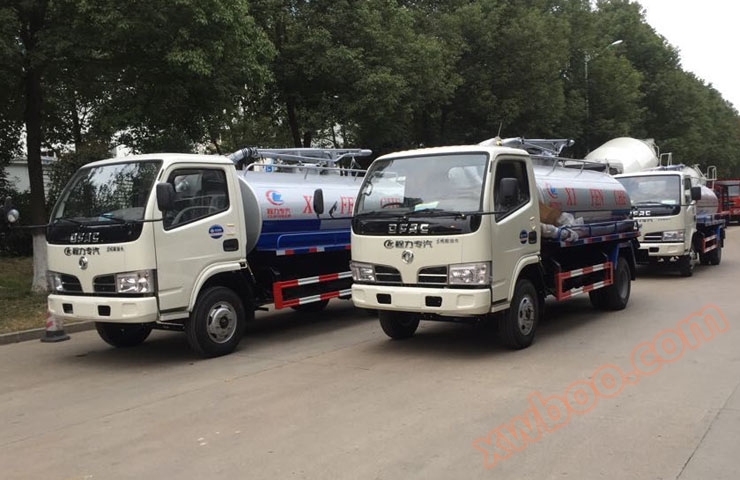

Vehicle description: Dongfeng Furuika suction truck has the characteristics of small size and flexible use. Dongfeng Furuika suction truck is mainly suitable for suctioning septic tanks in property communities. To inquire about the price of Dongfeng Furuika fecal suction trucks, please contact a professional manufacturer of Dongfeng Furuika fecal suction trucks.
Product Details
| Main technical parameters of Chengliwei brand CLW5070GXET5 Dongfeng Furuka suction truck | |||
| Product Name: | Dongfeng FurukaFecal suction truck | External dimensions: | 5995×1980×2500(mm) |
| Chassis model: | EQ1072GLJ | Cargo compartment size: | ××(mm) |
| Total mass: | 7350(Kg) | Approach/departure angle: | 24/10(°) |
| Rated quality: | 3615,3550(Kg) | Front suspension and rear suspension: | 1070/1815,1070/2090,1180/1705,1180/1980,1250/1635,1250/1910,1250/1635,1250/1910,1280/1605,1280/1880,1280/1605,1280/1880(mm) |
| Curb weight: | 3605(Kg) | Maximum speed: | 90(km/h) |
| engine | Engine Manufacturer | Displacement (ml) | Power (kw) |
| CY4BK251 CY4BK451 YC4FA115-50 |
Dongfeng Chaoyang Chaochai Power Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Guangxi Yuchai Machinery Co., Ltd |
3856 3707 2982 |
96 86 85 |
| Emission standards: | GB17691-2005 National V, GB3847-2005 | ||
| Number of axes: | 2 | Front wheelbase: | 1506,1590,1750(mm) |
| wheelbase: | 3300,3800 | Rear wheelbase: | 1530,1586,1650(mm) |
| Number of tires: | 6 | Tire specifications: | 7.00-16,7.00R16,7.50-16,7.50R16 |
| Fuel type: | diesel oil | Number of spring plates: | 8/9+5,8/10+7,9/10+8,6/6+5 |
| Axle load: | 2940/4410 | Number of passengers in the cab: | 2,3 |
| Vehicle remarks: | 1. The effective volume of the tank is 4.65 cubic meters, and the transport medium is liquid waste with a density of 800 kilograms per cubic meter. The external dimensions of the tank (length x long axis x short axis) are (mm): 3450 × 1600 × 1200; 2. The side protection and lower rear protection devices are both made of Q235A material and welded together. The cross-sectional size of the rear protection (mm) is 220 × 50, and the height of the rear protection above the ground (mm) is 540. 3. The ABS model is 3631010-C2000, and the manufacturer is Dongke Knorr Bremse Commercial Vehicle Braking System (Shiyan) Co., Ltd. 4. The position of text spray painting, vehicle color, and local details can vary. 5. Optional cab with chassis. | ||
| Multi directional diagram: |
|
||
| For more information and product pictures, please contact our company directly. We will provide you with the best service! | |||
