Chengli Special Purpose Vehicle Co., Ltd

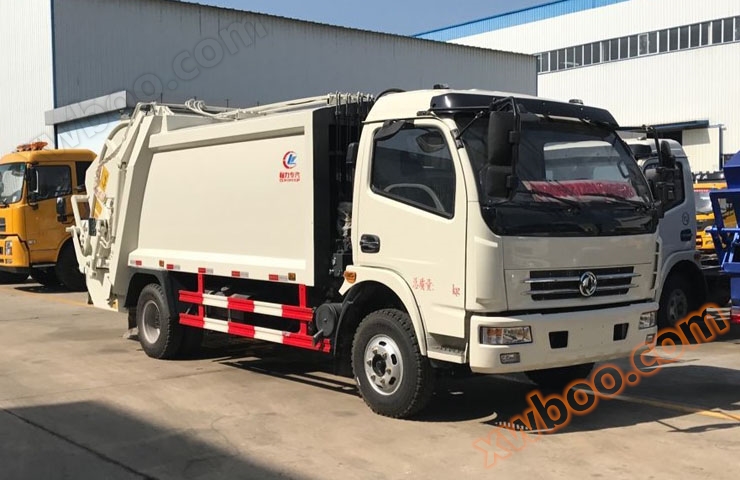

Dongfeng Dorica Compressed Garbage Truck
NegotiableUpdate on 02/09
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
Vehicle Description:
Product Details
| Main technical parameters of Chengliwei brand CLW5080ZYSD5 Dongfeng Dorica compression garbage truck | |||
| Product Name: | Dongfeng storicaCompression garbage trucks | External dimensions: | 7350,7100×2250×2750(mm) |
| Chassis model: | EQ1080SJ8BDC | Cargo compartment size: | ××(mm) |
| Total mass: | 8275(Kg) | Approach/departure angle: | 20/12(°) |
| Rated quality: | 1730(Kg) | Front suspension and rear suspension: | 1130/1810,1150/1790,1130/1452,1150/1432,1130/1960,1150/1940(mm) |
| Curb weight: | 6350(Kg) | Maximum speed: | 103(km/h) |
| engine | Engine Manufacturer | Displacement (ml) | Power (kw) |
| CY4SK251 YC4FA130-50 ISF3.8s5141 ZD30D15-5N 4DX23-140E5 YN38CRE1 |
Dongfeng Chaoyang Chaochai Power Co., Ltd Guangxi Yuchai Machinery Co., Ltd Beijing Futian Cummins Engine Co., Ltd Dongfeng Light Engine Co., Ltd FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Engine Factory Kunming Yunnei Power Co., Ltd |
3856 2982 3760 2953 3857 3760 |
115 95 105 110 105 95 |
| Emission standards: | GB17691-2005 National V, GB3847-2005 | ||
| Number of axes: | 2 | Front wheelbase: | 1740(mm) |
| wheelbase: | 3800,3308,4100 | Rear wheelbase: | 1610,1586(mm) |
| Number of tires: | 6 | Tire specifications: | 7.50R16 |
| Fuel type: | diesel oil | Number of spring plates: | 8/10+7 |
| Axle load: | 3310/4965 | Number of passengers in the cab: | 3 |
| Vehicle remarks: | 1. Optional cab with chassis. 2. The rear flip style can be equipped with a garbage bin device and a rear flip mechanism. When the rear flip mechanism is optional, the total length of the vehicle is 7100mm, corresponding to a rear suspension of 2150mm. When the garbage bin mechanism is optional, the total length of the vehicle is 7350mm, corresponding to a rear suspension of 2400mm. 3. Protective material: Q235 carbon steel, connection method: The left and right side protections are welded to the auxiliary beam, and the rear protection is replaced by a special device for exemption. 4. The color, text spraying, and local details of the vehicle can vary. 5. ABS manufacturer and model: Xiangyang Dongfeng Longcheng Machinery Co., Ltd./ABS/ASR-24V-4S/4M.6. Corresponding relationship between engine and fuel consumption value (L/100km): YC4FA130-50/18.2. | ||
| Multi directional diagram: |
|
||
| For more information and product pictures, please contact our company directly. We will provide you with the best service! | |||
