Chengli Special Purpose Vehicle Co., Ltd

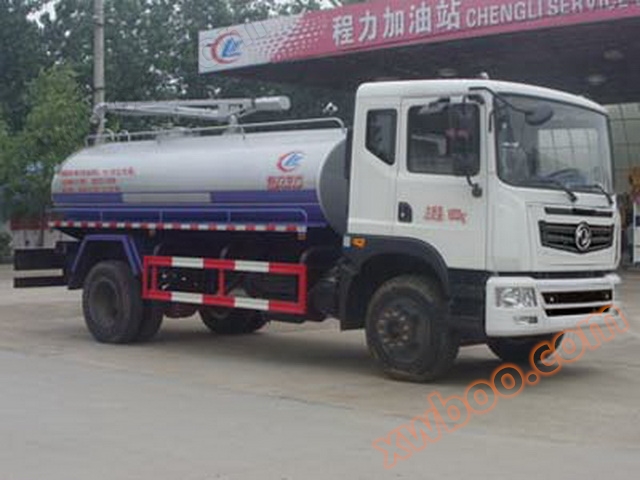

Dongfeng 153 suction truck
NegotiableUpdate on 02/09
- Model
- Nature of the Manufacturer
- Producers
- Product Category
- Place of Origin
Overview
Vehicle Description:
Product Details
| Main technical parameters of Chengliwei brand CLW5161GXET5 Dongfeng 153 suction truck | |||
| Product Name: | Dongfeng 153Fecal suction truck | External dimensions: | 8400,8200,8000×2480×3200(mm) |
| Chassis model: | EQ1168GLJ4 | Cargo compartment size: | ××(mm) |
| Total mass: | 16000(Kg) | Approach/departure angle: | 24/10(°) |
| Rated quality: | 8900,8965(Kg) | Front suspension and rear suspension: | 1250/1950,1250/2050,1250/2500,1250/2100,1450/1750,1450/1850,1450/2300,1450/1900,1250/2400,1450/2200(mm) |
| Curb weight: | 6905(Kg) | Maximum speed: | 90(km/h) |
| engine | Engine Manufacturer | Displacement (ml) | Power (kw) |
| YC6J180-50 YC4EG160-50 ISD185 50 ISD210 50 CA4DLD-15E5 ISB170 50 ISB190 50 YC4E160-56 YC6JA180-50 CY4SK151 YCD4J4S-150 ISD160 50 ISD180 50 YCD4D4S-140 |
Guangxi Yuchai Machinery Co., Ltd Guangxi Yuchai Machinery Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Engine Factory Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Guangxi Yuchai Machinery Co., Ltd Guangxi Yuchai Machinery Co., Ltd Dongfeng Chaoyang Chaochai Power Co., Ltd Guangxi Yuchai Power Machinery Co., Ltd Dongfeng Cummins Engine Co., Ltd Dongfeng Cummins Engine Co., Ltd Guangxi Yuchai Power Machinery Co., Ltd |
6500 4730 4500 6700 4400 5900 5900 4260 6870 3856 4329 4500 4500 4156 |
132 118 136 155 112 125 140 118 132 125 110 118 132 105 |
| Emission standards: | GB17691-2005 National V, GB3847-2005 | ||
| Number of axes: | 2 | Front wheelbase: | 1910,1760,1940,1960(mm) |
| wheelbase: | 3650,3800,3950,4200,4500,4700,5100,5600,5200 | Rear wheelbase: | 1860,1690,1750,1800(mm) |
| Number of tires: | 6 | Tire specifications: | 10.00-20,10.00R20,9.00R20,9.00-20,10R22.5,275/80R22.5 |
| Fuel type: | diesel | Number of spring plates: | 9/11+8,8/10+8,8/11+8,9/10+8,3/4+3 |
| Axle load: | 6000/10000 | Number of passengers in the cab: | 3.2 |
| Vehicle remarks: | 1. The effective volume of the tank is 11.67 cubic meters, and the transport medium is liquid waste with a density of 800 kilograms per cubic meter. The overall length of the vehicle, the external dimensions of the tank (length x long axis x short axis), the wheelbase, and the corresponding relationship between the front and rear overhangs are (mm): (84008200)/(5300 x 2200 x 1420)/4700/(14501250)/2250; (8200,8000)/(5100×2200×1500)/4500/(1450,1250)/2250; 2. The side protection and lower rear protection devices are both made of Q235A material and welded together. The size of the lower rear protection is 150 × 50 (mm), with a height of 510mm above the ground. 3. ABS model: 3631010-C2000, manufacturer: Dongke Knorr Bremse Commercial Vehicle Braking System (Shiyan) Co., Ltd. 4. The position of text spray painting, vehicle color, and local details can vary. 5. Optional driver's cab with chassis. | ||
| Multi directional diagram: |
  |
||
| For more information and product pictures, please contact our company directly. We will provide you with the best service! | |||
