FY2000 pre stretching cylindrical winding machine is used for axial packaging of cylindrical objects, achieving overall wrapping of the objects Beneficial for the storage, transportation, and turnover of goods, with dust-proof, moisture-proof, and cleaning functions

Product Details

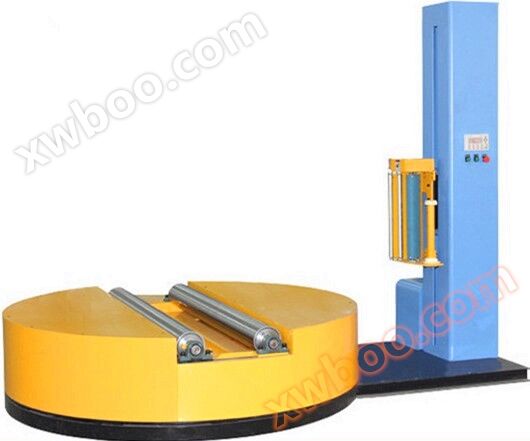

FY2000 pre stretching cylindrical winding machine is used for axial packaging of cylindrical objects, achieving overall wrapping of the objects It is beneficial for the storage, transportation, and turnover of goods, and has the functions of dust prevention, moisture prevention, and cleaning. Its packaging cost is low, efficiency is high, and packaging grade is improved. At the same time, according to the actual needs of packaging, equipment such as cylinder tray dual-use, automatic ejection, and automatic online can be selected.
FY2000 Pre Stretching Cylindrical Winding Machine Control System:
The human-machine interface operating system makes operation more convenient.
PLC programmable control.
Free setting of the number of winding circles for goods.
FY2000 Pre Stretching Cylindrical Winding Machine Rotary Table System:
Rotary table variable frequency speed regulation; Chain drive.
The turntable automatically resets.
Drum variable frequency speed regulation.
Easy to control packaging effect and more accurate counting.
FY2000 Pre Stretching Cylindrical Winding Machine Membrane Frame System:
The membrane frame is a power pre stretching mechanism, which can pre stretch up to 250% and reduce membrane consumption.
The film delivery speed is adjustable and controlled by a separate DC motor.
The rising and falling speed of the membrane rack can be adjusted separately.
The membrane frame is made of pure cast aluminum, which is lightweight and stable.
Choose wear-resistant rubber rollers for long service life.
The membrane system follow-up mechanism can be easily pulled.
The lifting column adopts a double chain structure, which is stable and reliable. Optional features:
Automatic ejection function: using airbag type cylinder with a gas consumption of 1000ml/min.
Top pressing device.
Cylinder/tray dual-use.
Technical specifications of FY2000 pre stretched cylindrical winding machine:
Packaging specifications: 360-1200mm, 1300-1600mm
Work efficiency: 20-30 rolls/hour
Rotary table load capacity: 2000 kg (max)
Rotary speed: 0-11 rpm/min
Wheel height: Regular type: 460 mm/Top out type: 530 mm
Rotary disc diameter: 2000 mm
Whole machine weight: 1080kg
Power/Voltage: 2.0 KW/AC380V Top out Type: AC220V
Roller spacing: 420 mm
Dimensions: L2859 * W2000 * H2300mm
