4000-6000 intelligent dual spot laser welding machine

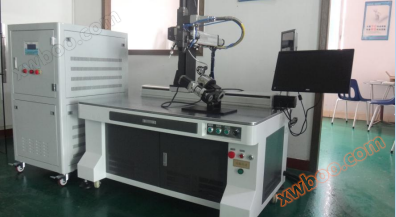

1. Model: AXL-4000/6000CFPD-5A
2. Name: Circular Double Spot Intelligent Composite Laser Welding Machine
3. Model explanation: AXL - Aoxin Laser, 4000/6000- Laser Power, CF - Continuous Fiber, P-Welding Process Software Package, D-Dual Spot, 5Axis Absolute Value Bus (Ether CAT) CNC System

1. Intelligent composite dual spot fiber laser: waveform intelligent power programmable control (process software package requires payment)
A. 976 high brightness LD chip module independently combines ten thousand fiber lasers;

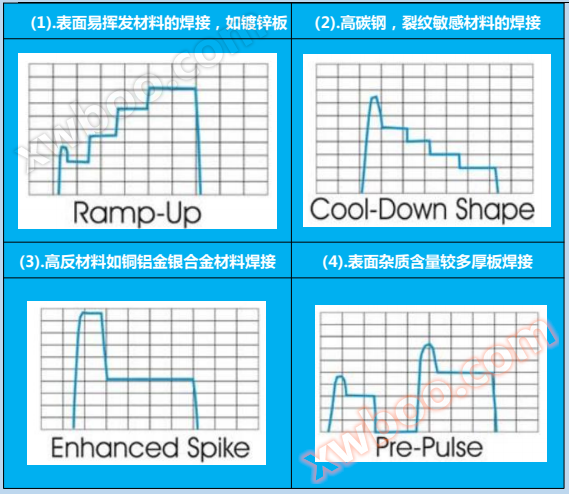

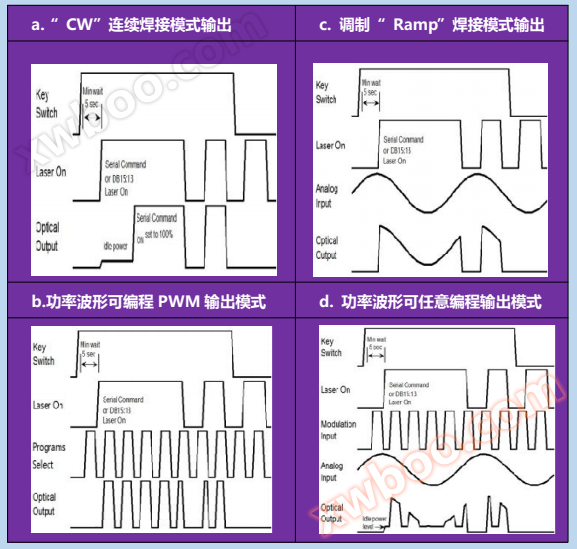

B. The internal optical core has a multi-purpose intelligent laser with pulse, continuous, and Ramp modulation;

2. Example application of Aoxin laser welding process products

1. Weldable metal: mainly used for precision welding, with the assistance of external fixtures, it can weld precision ultra-thin products;
2. With the cooperation of an intelligent laser head, ultra-thin copper, stainless steel, gold, silver and other products can be welded;
3. Control and light output: It can be precisely adjusted using 6-axis CNC software.
4. Rich welding process software package: With the help of the process software package, complex material processes can be welded

1. Standard version model

Dimensions and weight: L1400 * W1300 * H1900mm
♣. Effective travel: X-axis: 600mm, Y-axis: 400mm, Z-axis: 300mm
♣. Adjustable hollow rotating shaft from 0 to 90 degrees: Φ 200 global chuck
♣. Laser head precision planetary rotation axis: -90 degrees~+90 degrees rotatable
♣. Overall power: 16~21KW
2. Economic version models
Dimensions and weight: L1300 * W950 * H700mm
♣. Effective travel: X-axis: 500mm, Y-axis: 300mm, Z-axis: 300mm
♣. Adjustable hollow rotating shaft from 0 to 90 degrees: Φ 200 global chuck (inner center hole Φ 76)
♣. Laser head precision planetary rotation axis: -90 degrees~+90 degrees rotatable
♣. Overall power: 17~21KW

Single spot welding sometimes has many limitations in process improvement, and sometimes cannot achieve excellent welding. In 2014, Aoxinji
Light proposes to IPG that if two light spots can be combined together, the inner light spot can be used to penetrate the welding to ensure deep penetration,
The energy assistance of the outer light spot can be used for heating, refining the metallurgical bonding grain of atoms, and achieving local annealing
Function and no spark splashing, this is the historical process of the generation of composite spot lasers.
10.2 Aoxin Design and Manufacturing Composite Spot Fiber Optic Device Model:
Dual spot fiber laser (2/3KW · 100 μ m+2/3KW · 300 μ m),
Model explanation: 2/3KW power, CF continuous fiber, D-dual spot, P-power waveform software package

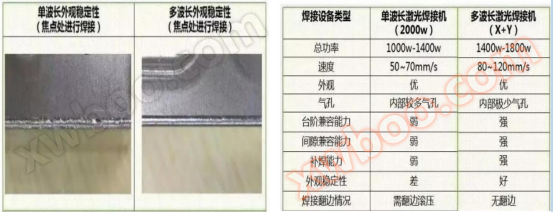

10.3 Example of Composite Spot Outline and Welding Effect Comparison

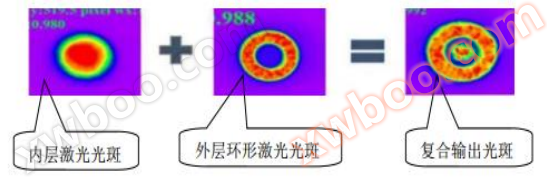

10.3.1. Composite spot combination as shown in Figure 1

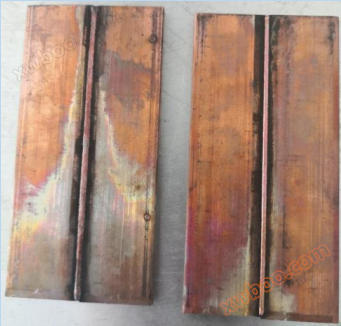

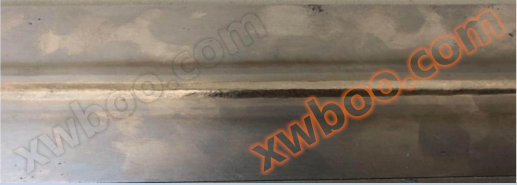

1. Welding of thick copper bars (4.0mm, special process welding); Front and back double-sided rendering)

2. Welding of thick purple copper tank body (4.0mm, special process welding)

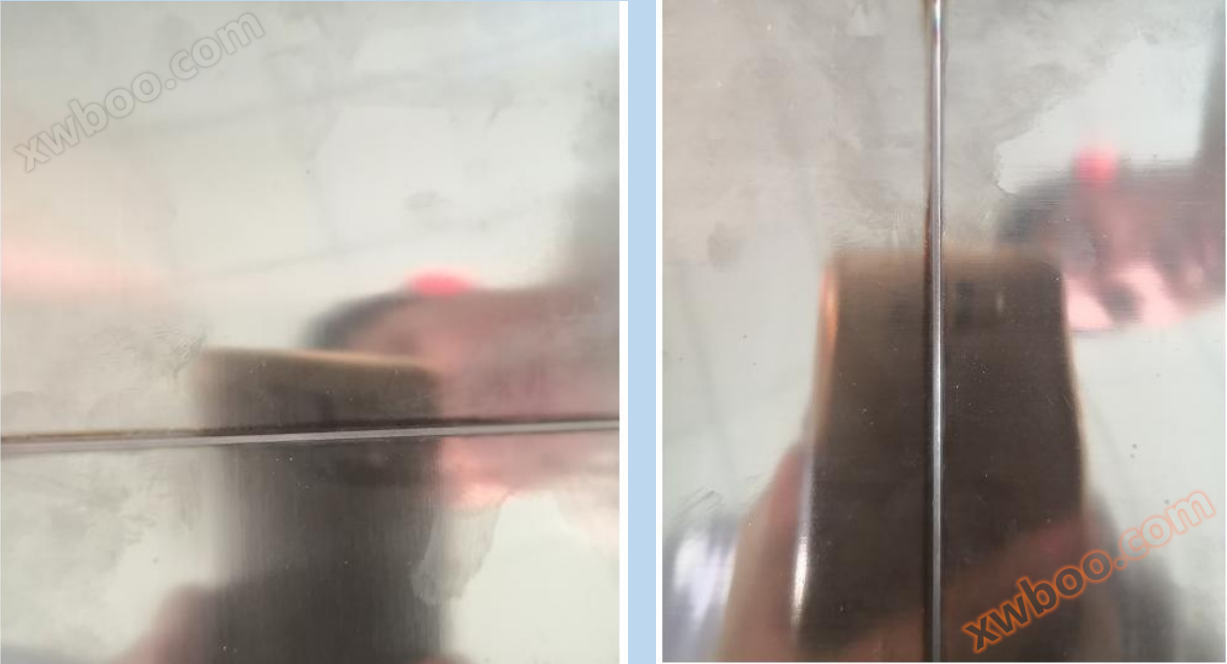

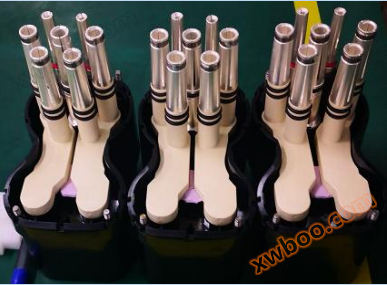

3. Non ferrous metal welding of Tesla charging stations (requires no air holes after welding, full welding without concave)

4. Welding of military titanium alloys (requires non-destructive testing after welding to ensure no porosity and achieve a first-class weld seam)




5. Welding of military titanium alloys (requires non-destructive testing after welding to ensure no porosity and achieve a first-class weld seam)

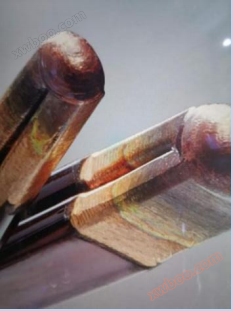

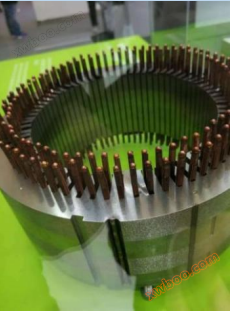

6. Welding of flat copper wire bars for the armature of new energy vehicle motors and high-speed trains

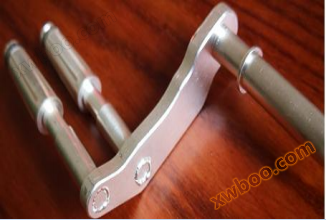

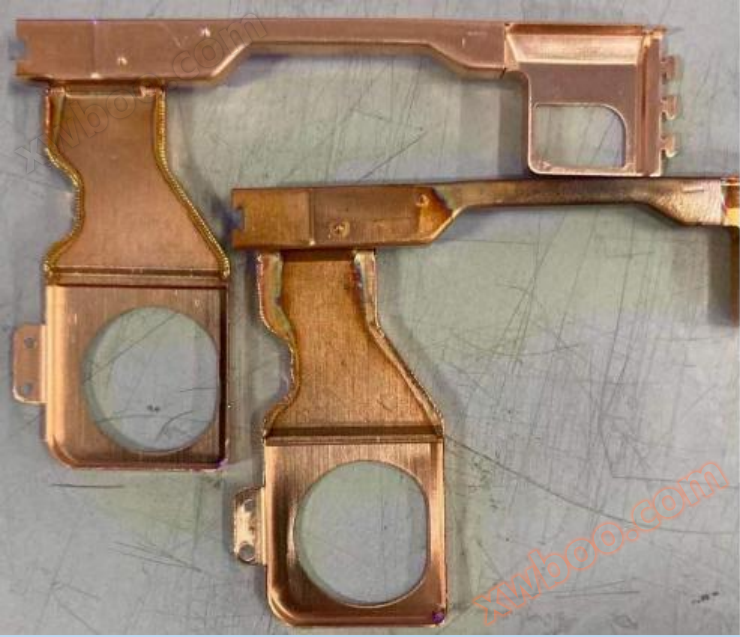

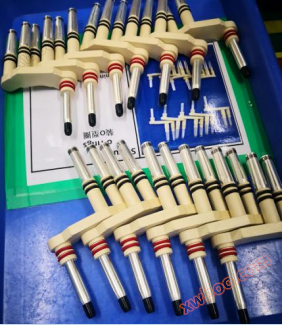

7. Welding of air-cooled brackets for tablets or 5G phones

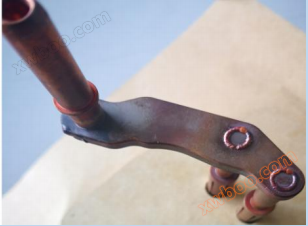

Require to maintain airtightness after welding, with a thickness of 0.2-0.3mm copper
